Tractor · 1983Unverified

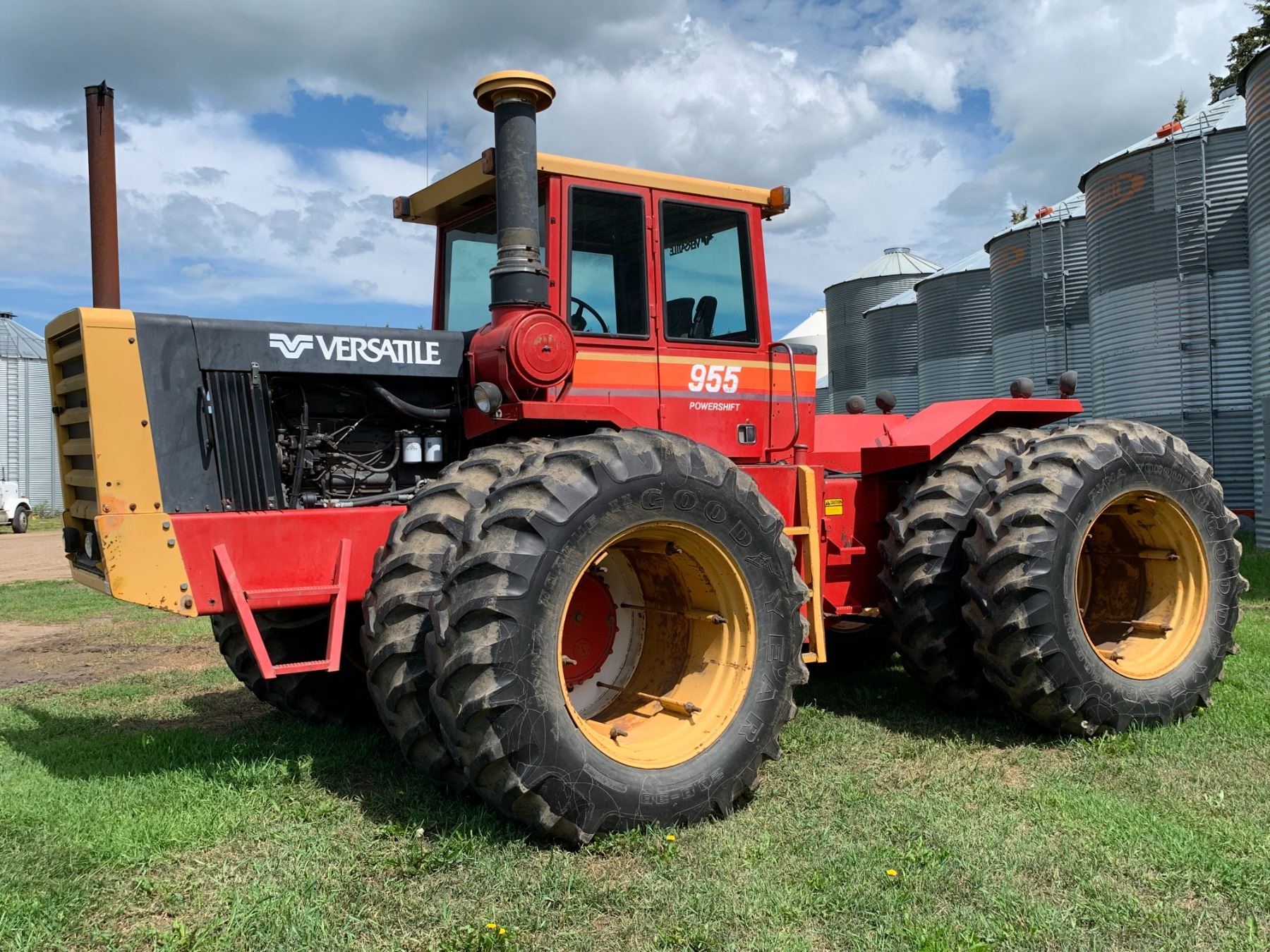

Versatile 955
Versatile 955 — 3 Series · 350 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
350 hp
Weight
11113 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price$161,000 (1984)Reference
Drive4x4 4WDReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab with heat and A/CReference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine261.0 kWReference
Cummins NTA-855-A350Reference
aftercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power261.0 kWReference
Air cleanerdual dry element with precleanerReference
Rated RPM2100Reference
Oil capacity39.7 LReference
Coolant capacity57.7 LReference
Transmission
12-speedReference
TransmissionPower shiftReference
Gears12 forward and 2 reverseReference
Oil capacity47.3 LReference
Capacities
Fuel700.2 LReference
PTO & Hydraulics
Hydraulic system79.5 LReference
Typeopen centerReference
Capacity79.5 LReference
Pressure155.1 barReference
Valves4Reference
Pump flow89.3 lpmReference
Steering flow98.8 lpmReference
Rear Type4N/3Reference
Dimensions
Wheelbase330 cmReference
Weight11113 kgReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Ag front30.5x32Reference
Ag front18.4x38Reference
Ag front20.8x38Reference
Ag rear30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Length642 cmReference
Width386 cmReference
Height (cab)321 cmReference
Max weight16329 kgReference
955 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1983955 83 190125Reference
1984955 84 191145Reference
Final955 84 191195Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Speeds
With 24.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
