Tractor · 1985Unverified

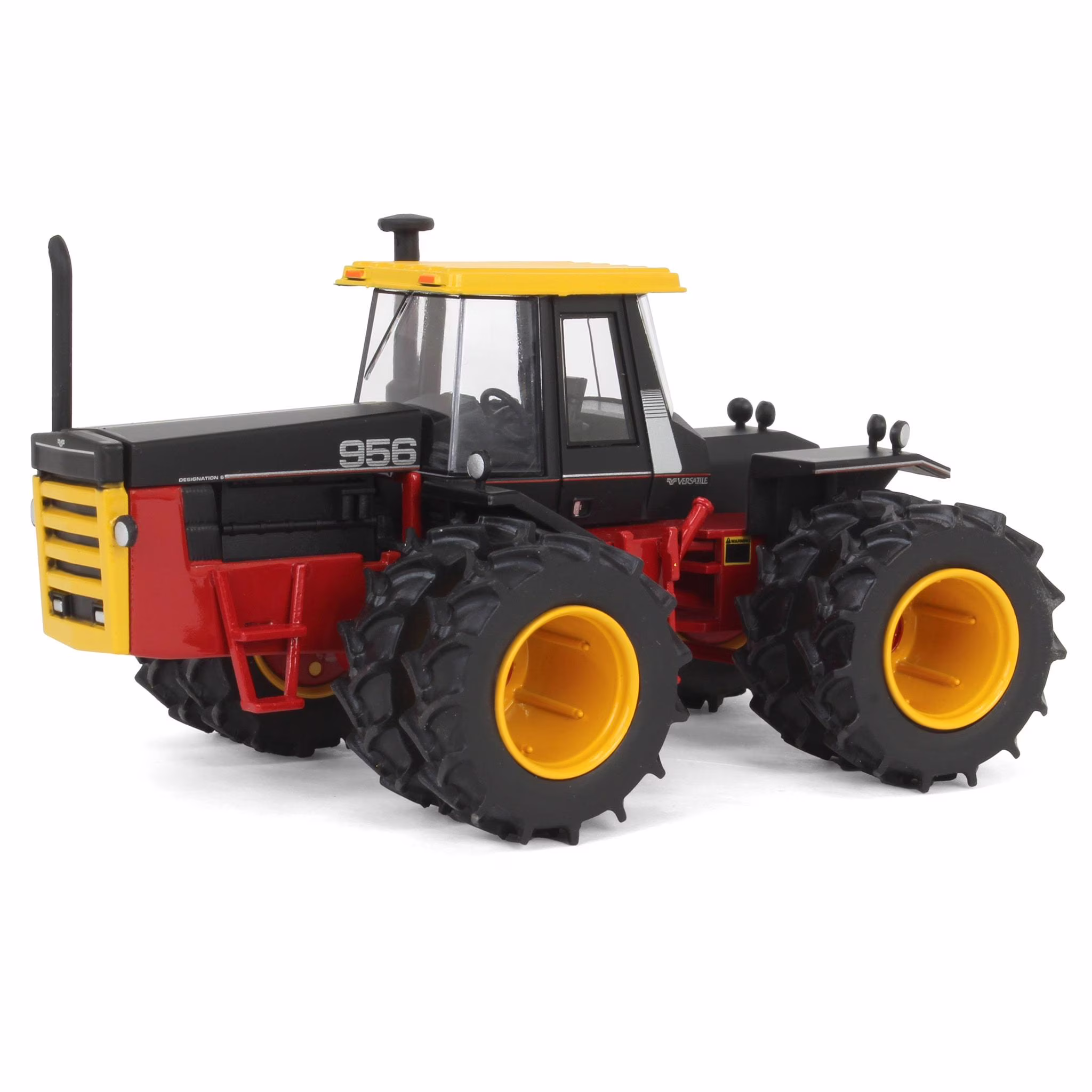

Versatile 956
Versatile 956 — 6 Series · 335 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
335 hp
Weight
11113 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $97,000 in 1986Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Steeringhydraulic powerReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine249.8 kWReference
CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power249.8 kWReference
Air cleanerdual dry elementReference
Rated RPM2100Reference
Torque1457.7 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity37.1 LReference
Coolant capacity60.3 LReference
Transmission
12-speed constant meshReference
12-speed full power shiftReference
ManufacturerVersatileReference
Typeconstant meshReference
Gears12 forward and 4 reverseReference
Oil capacity20.3 LReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Oil capacity47.3 LReference
Capacities
Fuel1082.5 LReference
PTO & Hydraulics
Hydraulic system54.9 LReference
Typeclosed center load sensingReference
Capacity54.9 LReference
Pressure165.5 barReference
Valves4 to 4Reference
Pump flow92.7 lpmReference
Steering flow98.8 lpmReference
Steering press.158.6 barReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)9843 kgReference
Dimensions
Wheelbase330 cmReference
Weight11113 kgReference
Length660 cmReference
Height (exhaust)353 cmReference
Max weight16329 kgReference
956 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1985956 85 232045Reference
Final956 85 251175Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery CCA625Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
