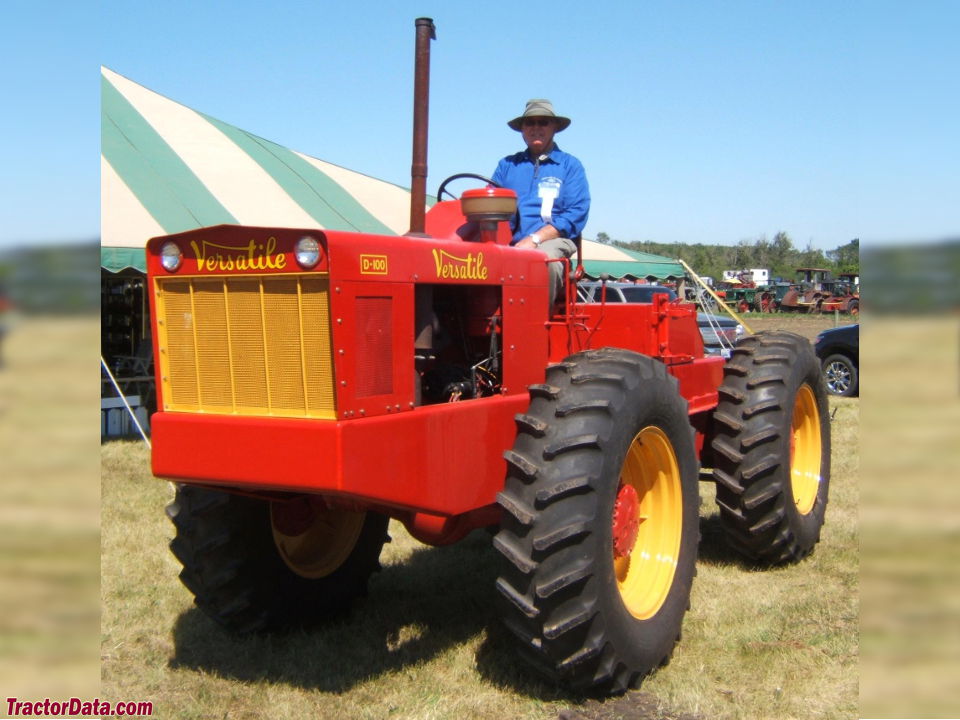

The Versatile D100 is a tractor with a 100 hp rating, positioning it within the middle range of its class for power output. Manufactured in 1966, this model features a 6-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a 12-speed gearbox. The tractor is designed for use on plots of around 200–800 acres. Detailed specifications for the Versatile D100 follow.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
100 hp
Transmissions
12-speed gear
Production years
1966-1966
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Articulated power steeringReference
Open operator station.Reference
Variants
G100gasolineReference
D100dieselReference
Engine
Ford 5.9L 6-cyl dieselReference
Engine74.6 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke105 x 115 mmReference
Power74.6 kWReference
Coolant capacity5.7 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Four gears, plus reverse, with a four-speed transfer case.Reference
PTO & Hydraulics
Pump flow83.3 lpmReference
Dimensions
Front tire16.9-30Reference
Rear tire16.9-30Reference
Ag front16.9-30Reference
Ag rear16.9-30Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
