Tractor · 1979Unverified

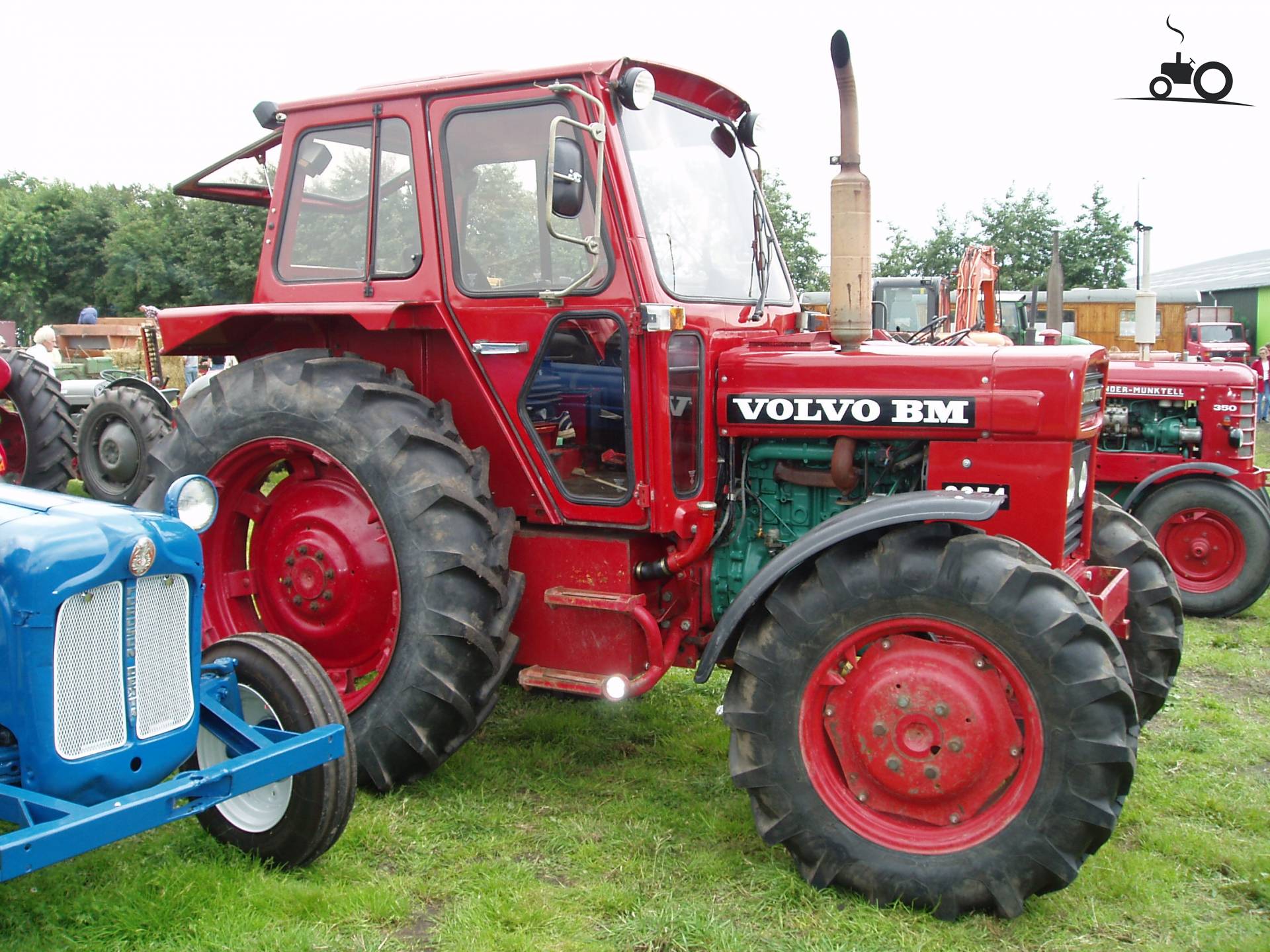

Volvo 2254

Name: Volvo 2254
Brand: Volvo

Volvo 2254 — Utility tractor · 56 hp. Reference specifications; pending source verification.

The Volvo 2254 is a tractor model with a rated power of 56 hp, which positions it at the lighter end of its class. Produced between 1979 and 1981, this model features a 4-cylinder diesel liquid-cooled engine paired with a four-wheel drive system and a hydrostatic transmission. The operating weight of the Volvo 2254 is listed at 3314 kg, and it is suited for operations up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

56 hp

Weight

3314 kg

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

56 hp

Recorded weight

3314 kg

Transmissions

8-speed synchromesh

Production years

1979-1981

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVolvoReference

Utility tractorReference

Total built865Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Volvo BM cab standard with heater.Reference

Variants

22502WDReference

22544WDReference

Engine

Volvo 3.9L 4-cyl dieselReference

Fuel tank85.2 LReference

Engine50.7 kWReference

Volvo D39TReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Power50.7 kWReference

Fuel systemdirect injectionReference

Pre-heatingthermostartReference

Compression16:1Reference

Rated RPM2200Reference

Torque249.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Starter power3.0 kWReference

Transmission

8-speed synchromeshReference

16-speed two-speed power shiftReference

TypesynchromeshReference

Gears8 forward and 4 reverseReference

Clutch279.4mm dry discReference

Four gears in two ranges, plus reverse.Reference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

Optional hydraulic power shift adds an additional high-low shift to the base eight-speed transmission.Reference

PTO & Hydraulics

PTO (claimed)41.8 kWReference

Pressure172.0 barReference

Valves2Reference

Pump flow45.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2222 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1940Reference

Engine RPM1000@2190Reference

Dimensions

Wheelbase216 cmReference

Weight3314 kgReference

Front tire11.2-24Reference

Rear tire13.6-38Reference

Ag front11.2-24Reference

Ag rear13.6-38Reference

Length370 cmReference

Height254 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Batteries2Reference

Battery volts12Reference

Battery AH140Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
