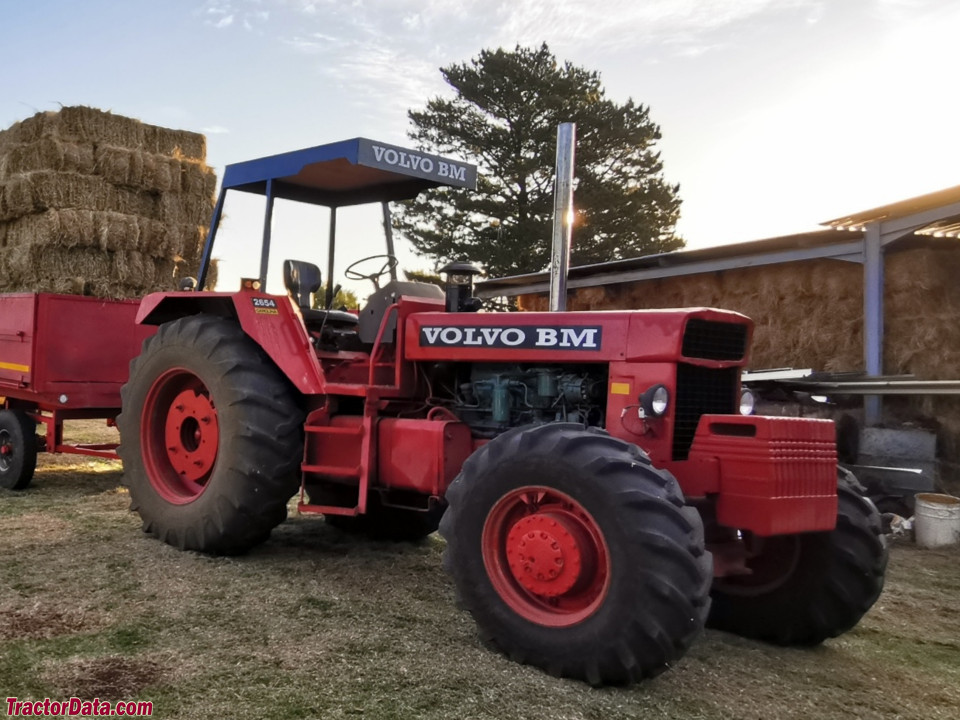

The Volvo 2654 is a tractor model with a rated output of 140 hp, positioning it among the higher-powered machines in its class. Production of this model spanned the period from 1979 to 1983. It features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the Volvo 2654 is 7500 kg, with an intended usage for tasks covering an approximate area of 200–800 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Weight
7500 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
140 hp
Recorded weight
7500 kg
Transmissions
14-speed two-speed power shift
Production years
1979-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Total built1255Reference
Four-wheel driveReference
Power steeringReference
Cab standard.Reference
Variants
26502WDReference
26544WDReference
Engine
Volvo 5.5L 6-cyl dieselReference
Fuel tank210.1 LReference
Engine104.4 kWReference
Volvo TD60Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke98 x 120 mmReference
Power104.4 kWReference
Compression16:1Reference
Rated RPM2300Reference
Torque485.0 NmReference
Torque RPM1600Reference
Starter volts12Reference
Transmission
14-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears14 forward and 4 reverseReference
PTO & Hydraulics
Pump flow46.9 lpmReference
Rear TypeIII/IIReference
Rear lift3400 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase286 cmReference
Weight7500 kgReference
Front tire14.9-24Reference
Rear tire20.8-38Reference
Ag front14.9-24Reference
Ag rear20.8-38Reference
Ag rear18.4-38Reference
Length465 cmReference
Width232 cmReference
Height305 cmReference
Ground clearance35 cmReference
Front tread173 cmReference
Rear tread180 cmReference
Speeds
With 20.8-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
