Industrial Tractor · 1959Unverified

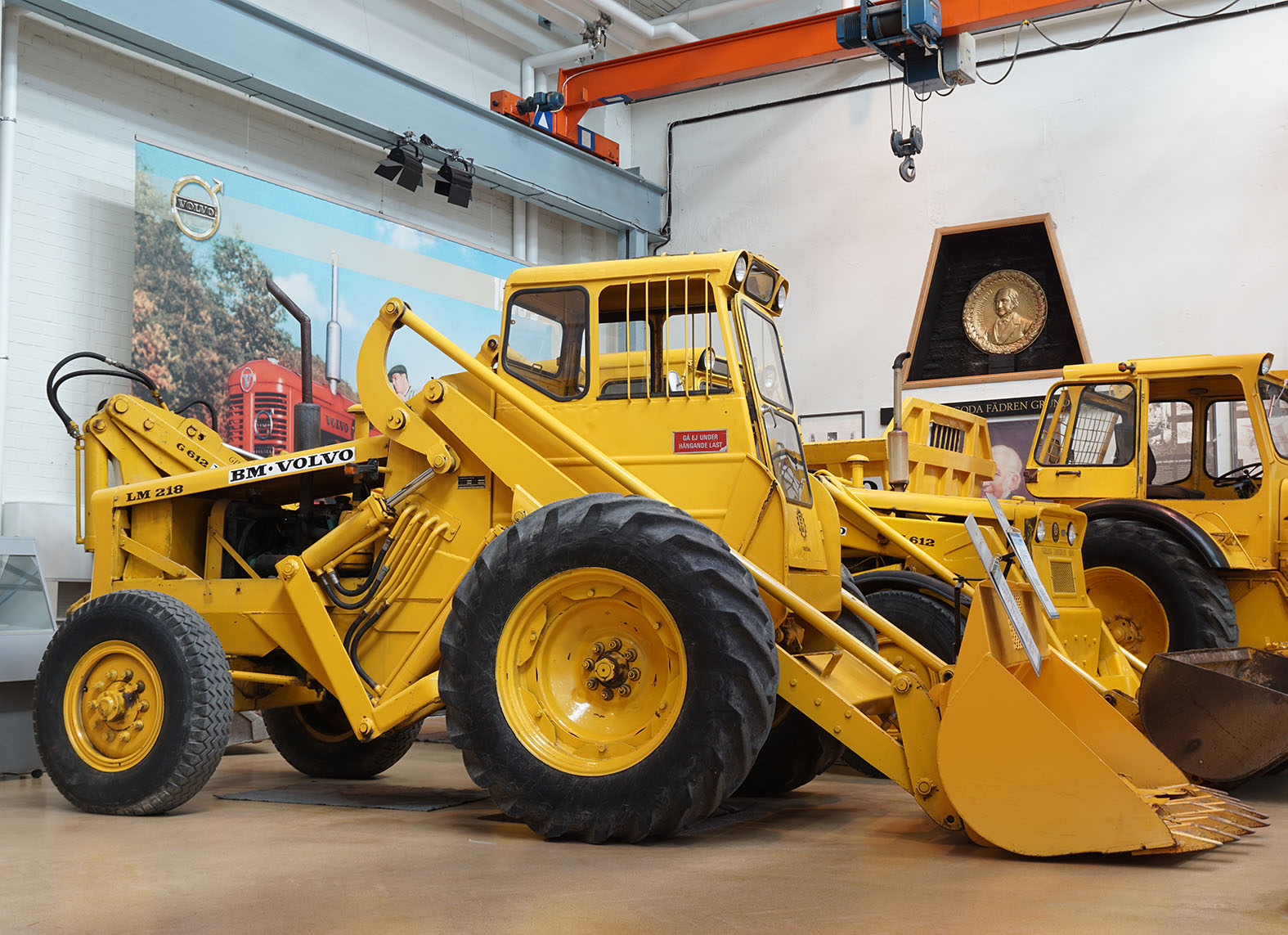

Volvo LM 218
Volvo LM 218 — LM Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
12600 to 13000 pounds
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Wheel LoaderReference
Two-wheel driveReference
Differential lockmechanical frontReference
Cab standard with heater.Reference
Engine
Bolinder 3.8L 3-cyl dieselReference
Engine (gross)47.0 kWReference
Engine (net)41.8 kWReference
Bolinder 1113Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke111 x 130 mmReference
Power (net)41.8 kWReference
Power (gross)47.0 kWReference
Rated RPM1800Reference
Torque246.8 NmReference
Starter typeelectricReference
Transmission
5-speed gearReference
5-speed power shiftReference
TypegearReference
Gears5 forward and reverseReference
Clutch330.2mm dry discReference
TransmissionTwin DiscReference
Typepower shiftReference
ClutchhydraulicReference
PTO & Hydraulics
Pressure73.8 barReference
Pump flow129.8 lpmReference
Dimensions
Wheelbase230 cmReference
218TD Wheelbase240 cmReference
Weight12600 to 13000 poundsReference
Front tire14-30Reference
Rear tire9-20Reference
Industrial front14-30Reference
Industrial rear9-20Reference
Length437 cmReference
218TD Length460 cmReference
Height (cab)254 cmReference
Weight5715 kgReference
218TD Weight5896 kgReference
Ground clearance35 cmReference
Front tread173 cmReference
Rear tread169 cmReference
Volvo LM 218 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
