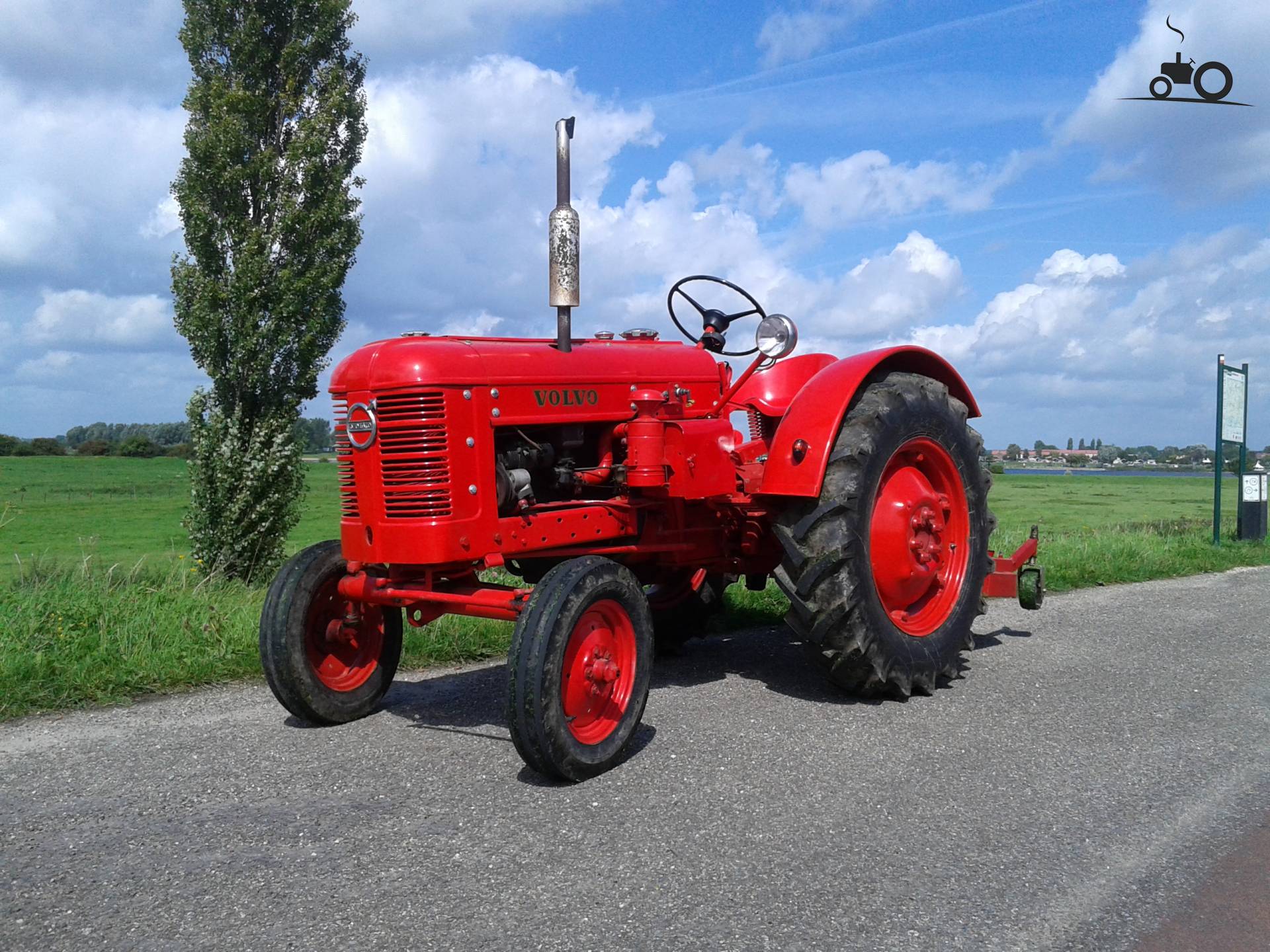

The Volvo T24 is a tractor model rated at 24 hp — making it one of the more compact options in its class. The T24 was manufactured from 1952 to 1959. It is powered by a 4-cylinder petrol liquid-cooled engine, driving through two-wheel drive with a 5-speed gearbox. Listed weight is 1589 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1589 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
24 hp
Recorded weight
1589 kg
Transmissions
5-speed gear
Production years
1952-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Standard-tread tractorReference
Two-wheel driveReference
Open operator station.Reference
Variants
T24keroseneReference
T25gasolineReference
Engine
Volvo 2.2L 4-cyl keroseneReference
Engine20.2 kWReference
VolvoReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 90 mmReference
Power20.2 kWReference
Compression4.6:1Reference
Rated RPM2000Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Oil capacity6.0 LReference
Coolant capacity11.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)18.0 kWReference
Hydraulic system6.1 LReference
Capacity6.1 LReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Capacities
Fuel45.0 LReference
Aux. fuel3.8 LReference
Dimensions
Wheelbase177 cmReference
Weight1589 kgReference
Front tire5.50-16Reference
Rear tire11-28Reference
Ag front5.50-16Reference
Ag rear11-28Reference
Length294 cmReference
Width130 cmReference
Front tread119/136 cmReference
Rear tread119 to 189 cmReference
Steering wheel165 cmReference
Electrical
Charging systemgeneratorReference
Battery volts6Reference
Battery AH85Reference
Volvo T24 Height
Hood139 cmReference
Exhaust192 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
