Tractor · 1952Unverified

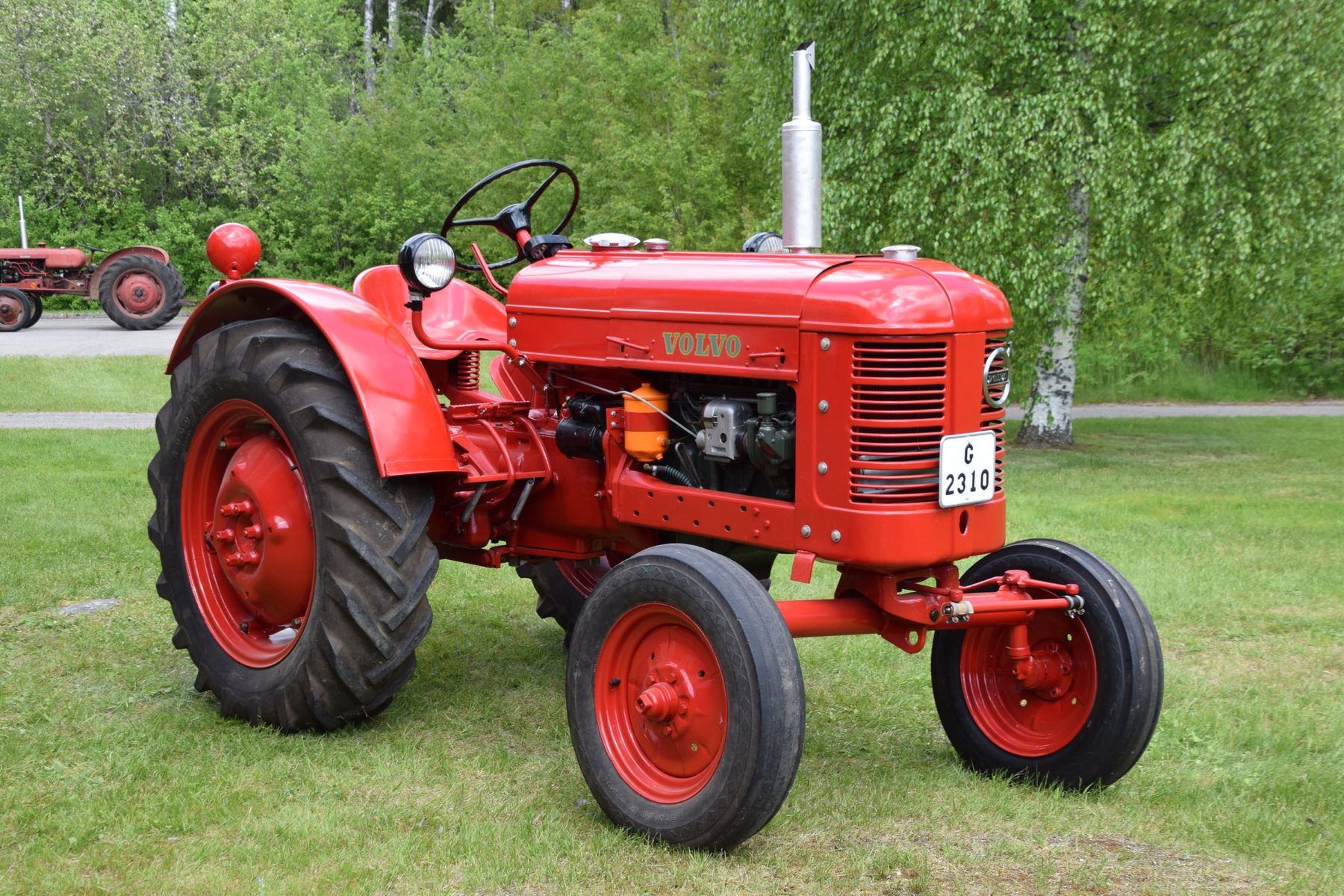

Volvo T25
Volvo T25 — T20 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1569 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Standard-tread tractorReference
Two-wheel driveReference
Open operator station.Reference
Variants
T24keroseneReference
T25gasolineReference
Engine
Volvo 2.2L 4-cyl gasolineReference
Engine22.8 kWReference
VolvoReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 90 mmReference
Power22.8 kWReference
Compression5.6:1Reference
Rated RPM2000Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Oil capacity6.0 LReference
Coolant capacity11.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)19.5 kWReference
Hydraulic system6.1 LReference
Capacity6.1 LReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Capacities
Fuel45.0 LReference
Dimensions
Wheelbase177 cmReference
Weight1569 kgReference
Front tire5.50-16Reference
Rear tire11-28Reference
Ag front5.50-16Reference
Ag rear11-28Reference
Length294 cmReference
Width130 cmReference
Front tread119/136 cmReference
Rear tread119 to 189 cmReference
Steering wheel165 cmReference
Electrical
Charging systemgeneratorReference
Battery volts6Reference
Battery AH85Reference
Volvo T25 Height
Hood139 cmReference
Exhaust192 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
