Tractor · 1961Unverified

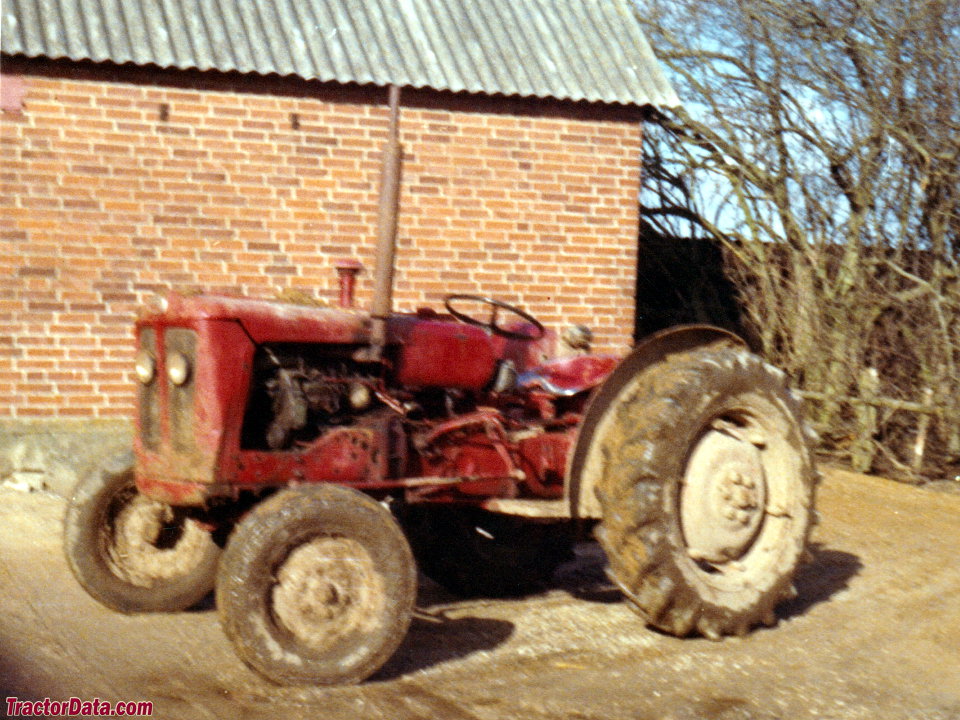

Volvo T320 Buster
Volvo T320 Buster · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1440 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Total built16370Reference
Two-wheel driveReference
Open operator station. Four-post ROPS availabloe.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Volvo 1.8L 4-cyl gasolineReference
Engine27.6 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Power27.6 kWReference
Volvo B18Reference
gasolineReference
4-cylinderReference
Displacement1.8 LReference
Bore/Stroke84 x 80 mmReference
Compression7.6:1Reference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity8.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Oil capacity20.0 LReference
Capacities
Fuel35.0 LReference
PTO & Hydraulics
Hydraulic system25.0 LReference
Capacity25.0 LReference
Pump flow26.9 lpmReference
Rear PTO Type540 (1.375)Reference
Engine RPM548@2000Reference
Dimensions
Wheelbase195 cmReference
Weight1440 kgReference
Front tire5.50-16Reference
Rear tire11.2/10-28Reference
Ag front5.50-16Reference
Ag rear11.2/10-28Reference
Ag front6.00-16Reference
Ag rear12.4/11-28Reference
Ag rear14.9/13-24Reference
Length294 cmReference
Width171 cmReference
Ballasted weight1900 kgReference
Clearance (front axle)42 cmReference
Clearance (rear axle)40 cmReference
Front tread121/138 cmReference
Front tread121 to 179 cmReference
Rear tread134 to 194 cmReference
Steering wheel139 cmReference
Electrical
Charging systemgeneratorReference
Charging amps5Reference
Battery volts12Reference
Battery AH60Reference
Volvo T320 Height
Hood128 cmReference
ROPS212 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
