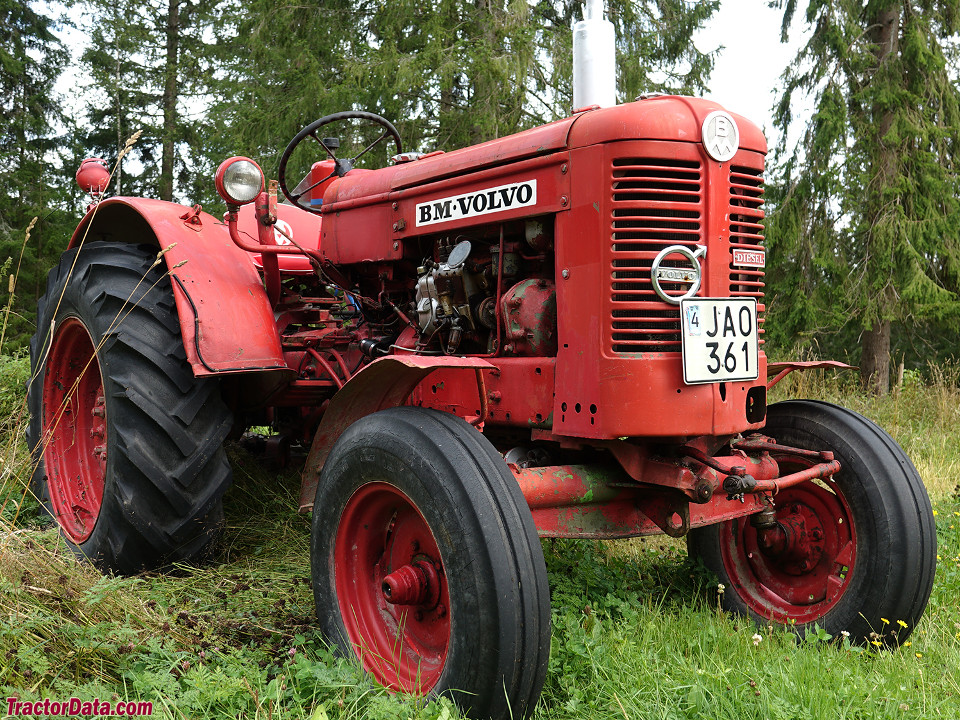

The Volvo T35 is a tractor model with a power rating of approximately 38 hp, categorising it as a lighter model within its class. It was manufactured from 1953 to 1958. Equipped with a 3-cylinder diesel liquid-cooled engine and a 5-speed gearbox, the Volvo T35 features two-wheel drive. Its operating weight is listed at 2460 kg, with a maximum suitable working area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2460 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
38 hp
Recorded weight
2460 kg
Transmissions
5-speed gear
Production years
1953-1958
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Row-Crop tractorReference
Total built825Reference
The Volvo T35 was the same as the Bolinder Munktell BM35, and very similar to the T36.Reference
Two-wheel driveReference
Open operator station.Reference
Variants
T35standardReference
T36row-cropReference
Engine
Bolinder 3.4L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine31.2 kWReference
Bolinder 1053Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke105 x 130 mmReference
Power31.2 kWReference
Rated RPM1500Reference
Starter volts12Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)28.0 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1500Reference
Dimensions
Wheelbase196 cmReference
Weight2460 kgReference
Front tire6.00x19Reference
Rear tire13x30Reference
Ag front6.00x19Reference
Ag rear13x30Reference
Length310 cmReference
Width189 cmReference
Height213 cmReference
Clearance (front axle)52 cmReference
Clearance (drawbar)47 cmReference
Front tread125 to 135 cmReference
Rear tread144 to 194 cmReference
Electrical
Charging systemgeneratorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
