Tractor · 1959Unverified

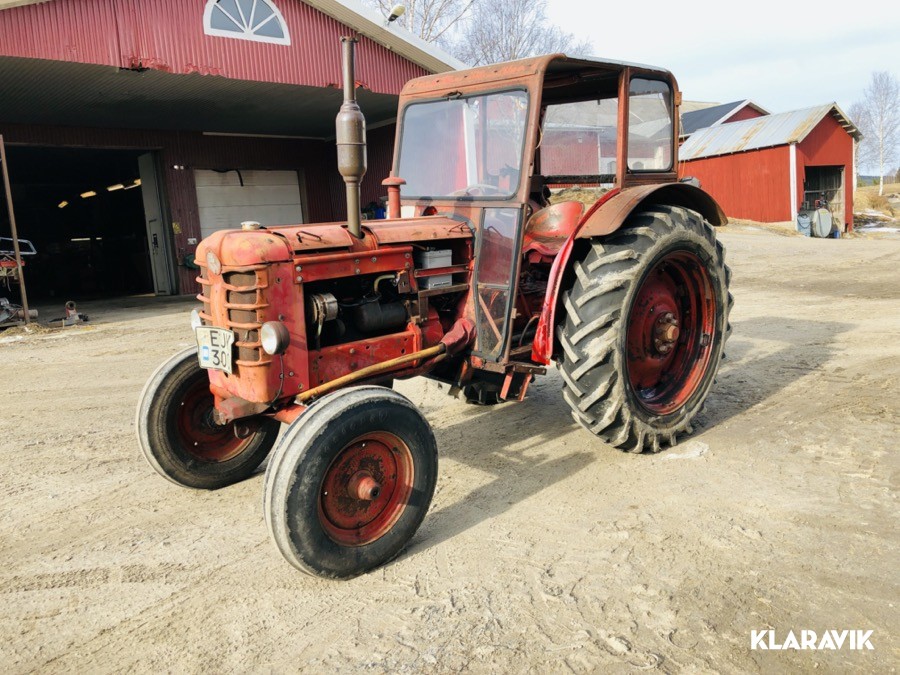

Volvo T350 Boxer
Volvo T350 Boxer · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
2869 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Total built28439Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Bolinder 3.8L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine41.8 kWReference
Bolinder TR 1113Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke111 x 130 mmReference
Power41.8 kWReference
Compression16.5:1Reference
Rated RPM1800Reference
Starter volts12Reference
Oil capacity10.5 LReference
Coolant capacity14.0 LReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Oil capacity53.0 LReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase230 cmReference
Weight2869 kgReference
Front tire7.50-18Reference
Rear tire12.4/11-38Reference
Ag front7.50-18Reference
Ag rear12.4/11-38Reference
Ag rear16.9/14-30Reference
Ag rear13.6/12-38Reference
Length357 cmReference
Width177 cmReference
Height (hood)151 cmReference
Height (exhaust)237 cmReference
Ground clearance48 cmReference
Front tread133 to 143 cmReference
Rear tread128 to 170 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
