Tractor · 1957Unverified

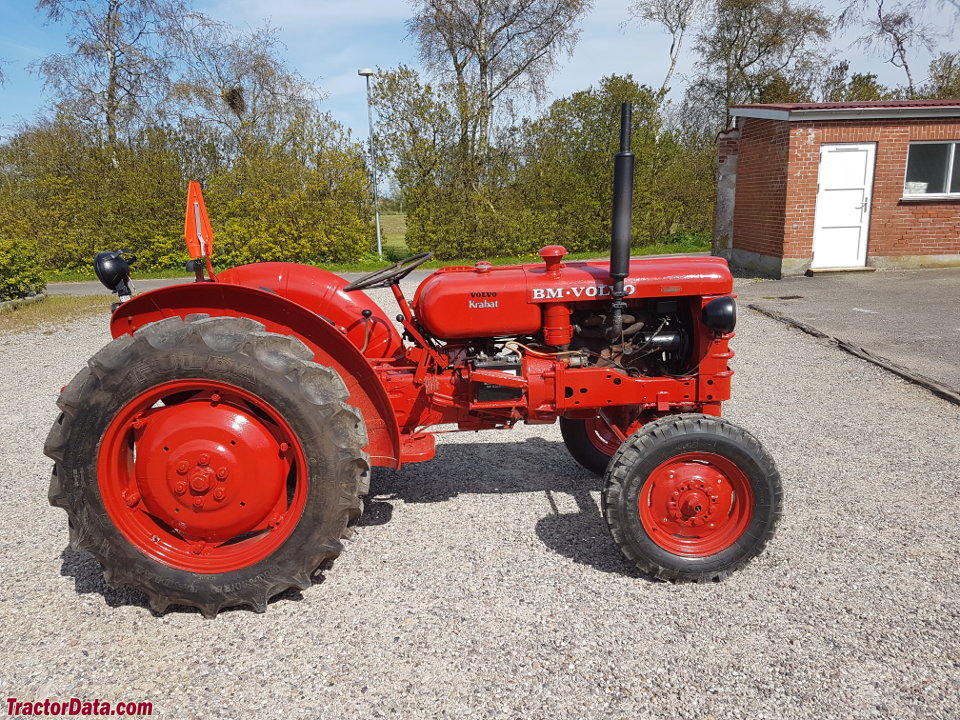

Volvo T425 Krabat
Volvo T425 Krabat — Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1349 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Utility tractorReference
Total built11193Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Volvo 1.6L 4-cyl gasolineReference
Fuel tank40.1 LReference
Engine23.9 kWReference
Volvo B16CReference
gasolineReference
4-cylinderReference
liquid-cooledReference
A foot accelerator pedal allowed increasing engine speed to 2500 RPM for road travel.Reference
Displacement1.6 LReference
Bore/Stroke79 x 80 mmReference
Power23.9 kWReference
Rated RPM2000Reference
Starter volts6Reference
Oil capacity3.8 LReference
Coolant capacity8.0 LReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutch228.6mm dry discReference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
Pump flow23.8 lpmReference
Rear lift800 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase191 cmReference
Weight1349 kgReference
Front tire4.00-19Reference
Rear tire10-28Reference
Ag front4.00-19Reference
Ag rear10-28Reference
Length296 cmReference
Width169 cmReference
Height (hood)124 cmReference
Height (exhaust)196 cmReference
Clearance (front axle)44 cmReference
Clearance (rear axle)39 cmReference
Front tread119/140 cmReference
Rear tread134 to 194 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
