Tractor · 1969Unverified

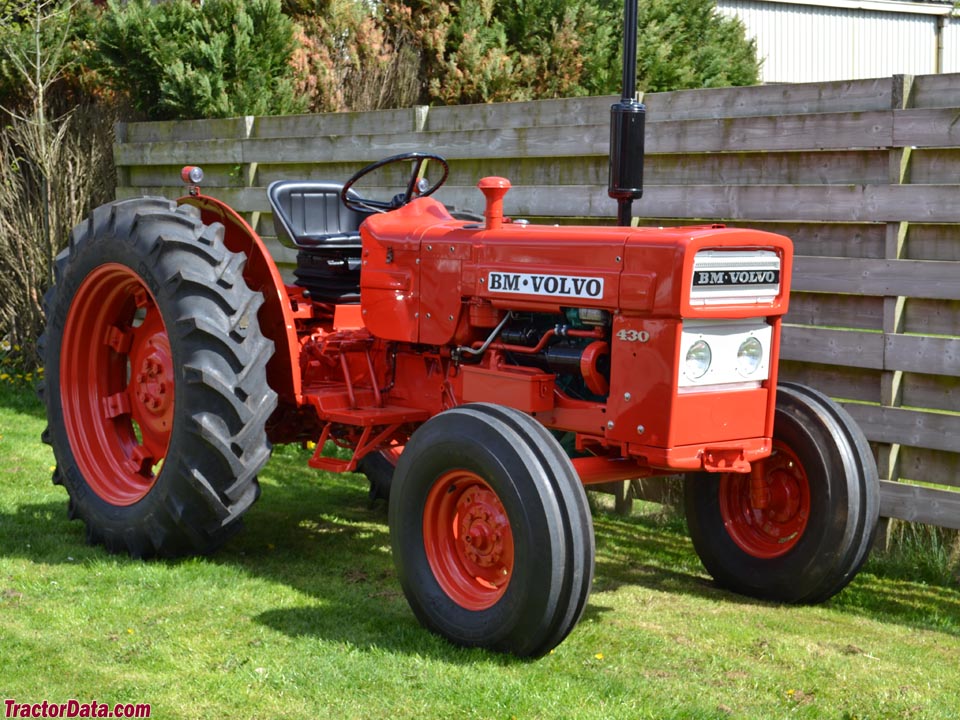

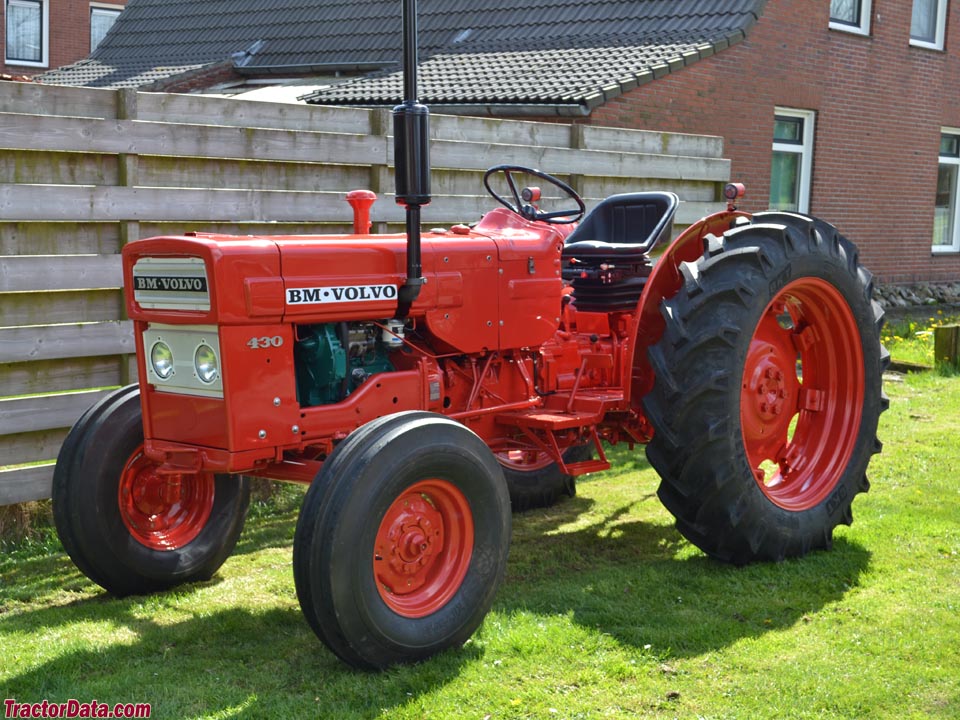

Volvo T430
Volvo T430 — Utility tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
2399 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Utility tractorReference
Total built23764Reference
Two-wheel driveReference
SteeringmechanicalReference
Open operator station. Cab optional.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine31.7 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power31.7 kWReference
Compression18:1Reference
Rated RPM2250Reference
Torque167.1 NmReference
Torque RPM1350Reference
Starter volts12Reference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 2 reverseReference
TransmissionTracTrolReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow32.9 lpmReference
Rear lift1250 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1770Reference
Dimensions
Wheelbase210 cmReference
Weight2399 kgReference
Front tire7.50-16Reference
Rear tire13.6-36Reference
Ag front7.50-16Reference
Ag rear13.6-36Reference
Ag rear12.4-36Reference
Length329 cmReference
Width177 cmReference
Height233 cmReference
Front tread121/138 cmReference
Rear tread135 to 177 cmReference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
