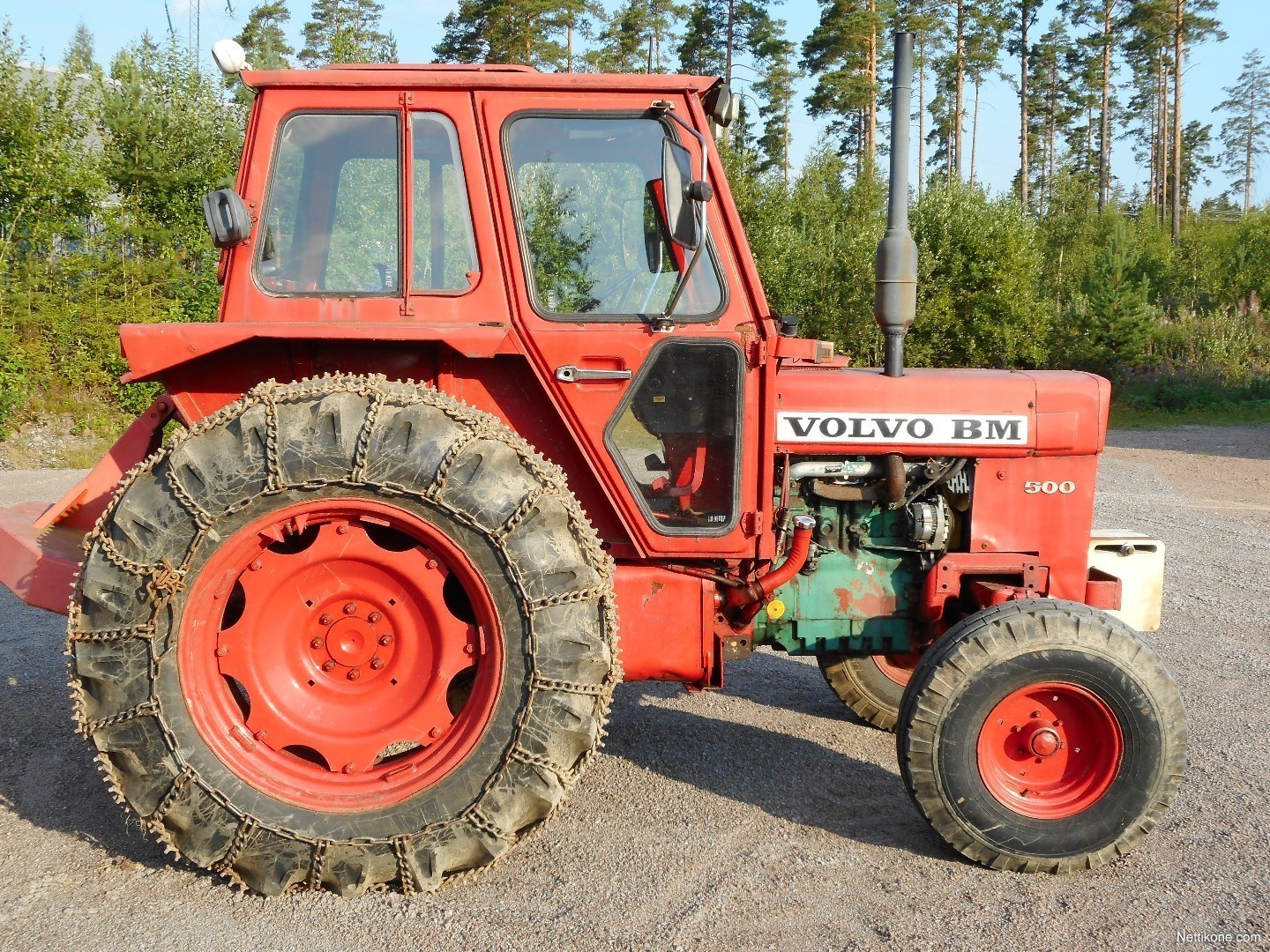

The Volvo T500 is a compact tractor with a rated output of 61 hp, produced from 1974 to 1978. It features a 4-cylinder diesel liquid-cooled engine, coupled with a powershift transmission and two-wheel drive. The listed weight of the Volvo T500 is 2900 kg, making it suitable for tasks requiring up to 200 acres of land.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Weight
2900 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
61 hp
Recorded weight
2900 kg
Transmissions
8-speed gear
Production years
1974-1978
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Total built6376Reference
Two-wheel driveReference
Power steeringReference
Engine
Volvo 3.9L 4-cyl dieselReference
Fuel tank87.8 LReference
Engine45.5 kWReference
Volvo D39TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power45.5 kWReference
Rated RPM2200Reference
Torque221.0 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 4 reverseReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Optional hydraulic power shift adds an additional high-low shift to the base eight-speed transmission.Reference
PTO & Hydraulics
Pump flow45.0 lpmReference
Rear lift1800 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase216 cmReference
Weight2900 kgReference
Front tire7.50-16Reference
Rear tire13.6-38Reference
Ag front7.50-16Reference
Ag rear13.6-38Reference
Length364 cmReference
Height255 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
