Tractor · 1967Unverified

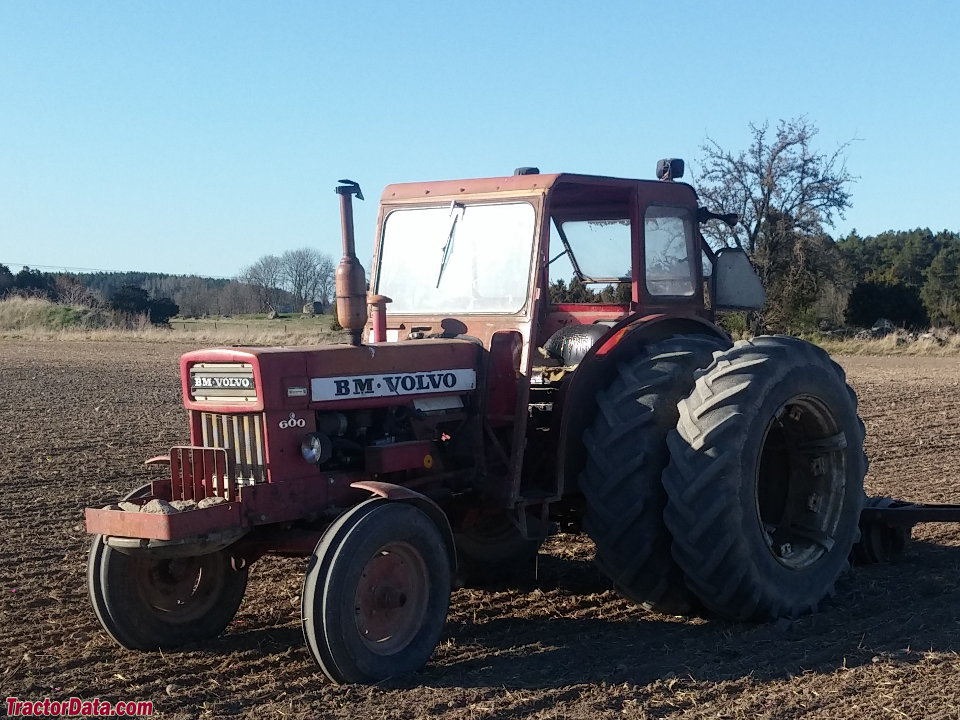

Volvo T600
Volvo T600 — Row-Crop tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
2909 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Row-Crop tractorReference
Total built12200Reference
Two-wheel driveReference
Manual steeringReference
Four-post ROPS. Cab optional.Reference
Engine
Bolinder 3.8L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine46.2 kWReference
Bolinder 1113AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke111 x 130 mmReference
Power46.2 kWReference
Rated RPM1950Reference
Torque245.0 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutch330mm dry discReference
Five gears (1-5) plus reverse (R) in the ranges (low/high).Reference
PTO & Hydraulics
Pump flow23.8 lpmReference
Rear lift1950 kgReference
Rear PTO Type540Reference
Engine RPM540@1500Reference
Dimensions
Wheelbase230 cmReference
Weight2909 kgReference
Front tire7.50-18Reference
Rear tire13.6-38Reference
Ag front7.50-18Reference
Ag rear13.6-38Reference
Ag front8.5-20Reference
Ag rear14.9-38Reference
Ag rear16.9-34Reference
Ag rear16.9-30Reference
Length352 cmReference
Width176 cmReference
Height234 cmReference
Ground clearance48 cmReference
Front tread133/143 cmReference
Front tread128/138/150/161/170 cmReference
Rear tread144/153/164/173/183/194 cmReference
Speeds
With 13.6-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
