Tractor · 1970Unverified

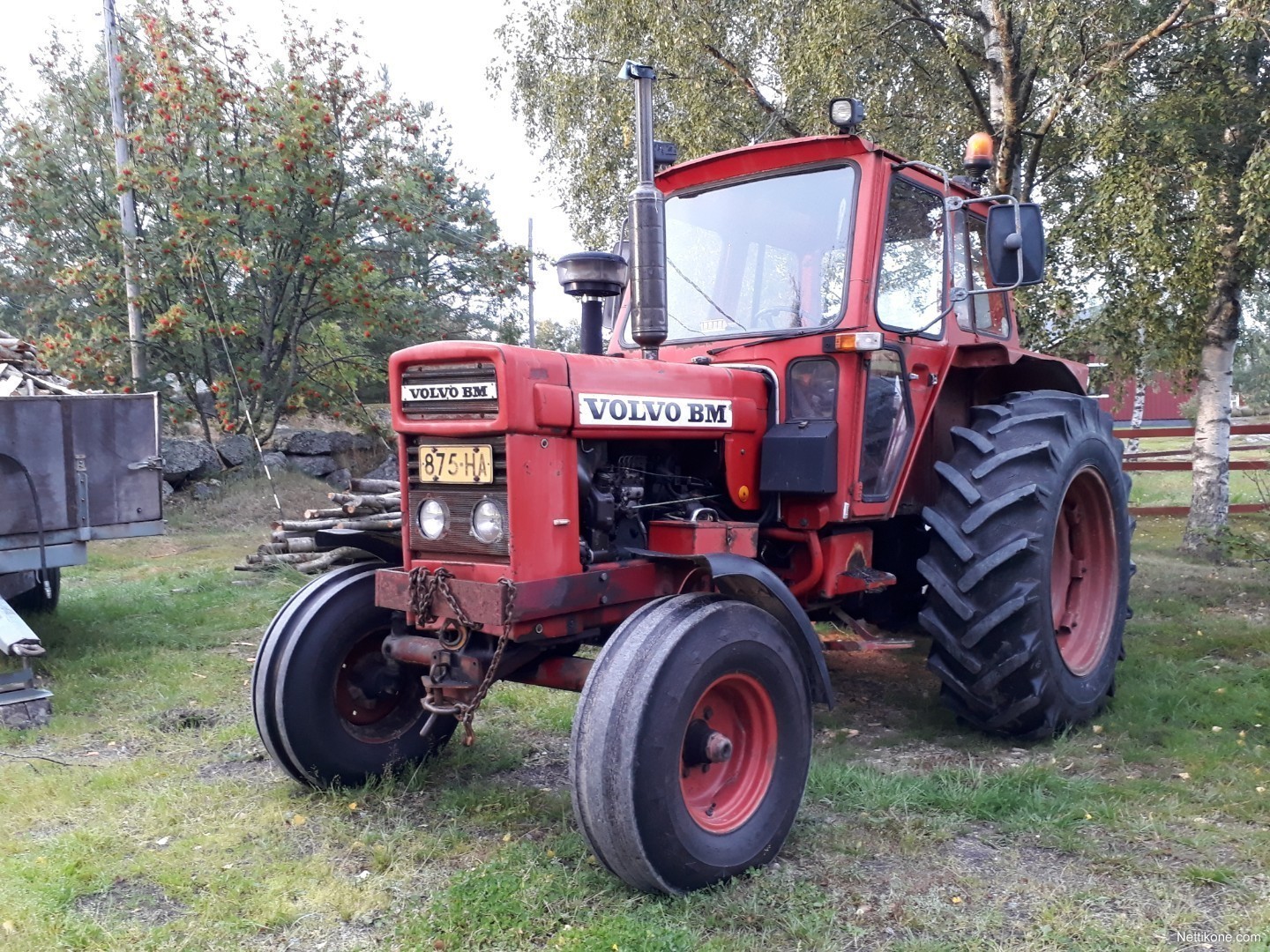

Volvo T650
Volvo T650 · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
3800 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Total built26,120Reference
Two- or four-wheel driveReference
Power steeringReference
Cab standard. Air-conditioning available.Reference
Engine
Volvo 4.2L 4-cyl dieselReference
Engine54.4 kWReference
Volvo D42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke106 x 120 mmReference
Power54.4 kWReference
Compression17.5:1Reference
Rated RPM2300Reference
Torque251.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
TransmissionTracTrolReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Capacities
Fuel95.0 LReference
PTO & Hydraulics
Hydraulic system26.1 LReference
Capacity26.1 LReference
Pump flow36.0 lpmReference
Rear lift2100 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1780Reference
Dimensions
Wheelbase244 cmReference
Weight3800 kgReference
Front tire7.50-18Reference
Rear tire14.9/13-38Reference
Ag front7.50-18Reference
Ag rear14.9/13-38Reference
Ag front10.00-16Reference
Ag rear18.4/15-34Reference
Length368 cmReference
Width194 cmReference
Height264 cmReference
Clearance (front axle)48 cmReference
Clearance (drawbar)39 cmReference
Front tread146 cmReference
Rear tread146 to 195 cmReference
Speeds
With 14.9/13-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
