Tractor · 1976Unverified

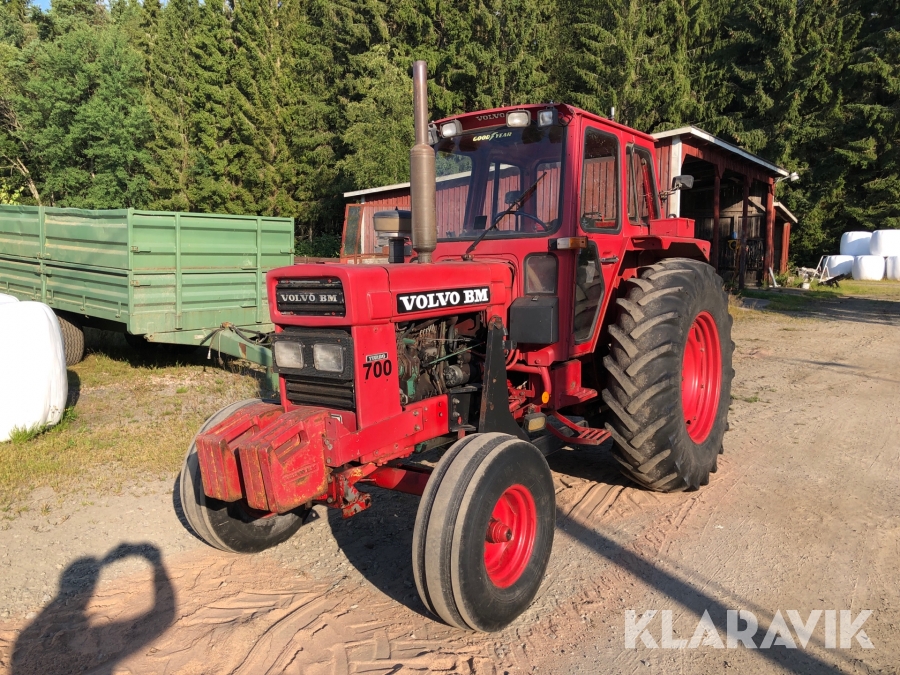

Volvo T700
Volvo T700 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
4100 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard.Reference
Engine
Volvo 4.2L 4-cyl dieselReference
Fuel tank95.0 LReference
Engine67.1 kWReference
Volvo TD42Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke106 x 120 mmReference
Power67.1 kWReference
Rated RPM2300Reference
Torque320.0 NmReference
Torque RPM1600Reference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
TransmissionTracTrolReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Rear lift2750 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1780Reference
Dimensions
Wheelbase244 cmReference
Weight4100 kgReference
Front tire10.00-16Reference
Rear tire14.9-38Reference
Ag front10.00-16Reference
Ag rear14.9-38Reference
Ag front7.50-18Reference
Ag rear18.4-34Reference
Length368 cmReference
Width221 cmReference
Height264 cmReference
Clearance (front axle)48 cmReference
Clearance (rear axle)39 cmReference
Front tread146 cmReference
Rear tread146 to 195 cmReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
