Tractor · 1966Unverified

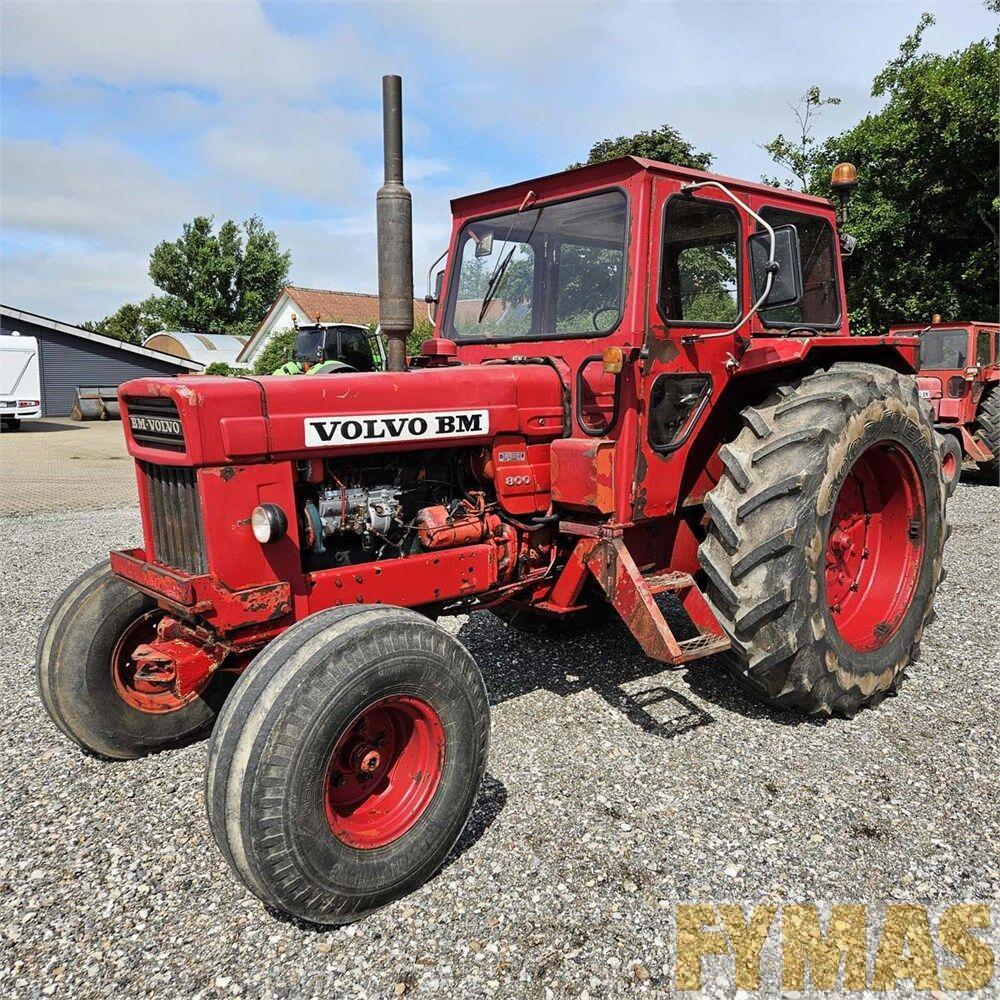

Volvo T800

Name: Volvo T800
Brand: Volvo

Volvo T800 · 106 hp. Reference specifications; pending source verification.

The Volvo T800 is a tractor with a rated output of 106 hp, placing it in the middle of its class for power. It was manufactured from 1966 to 1978. The tractor features a 6-cylinder diesel liquid-cooled engine, coupled to a mechanical front-wheel drive system with a hydrostatic transmission. Its listed weight is 4490 kg, suitable for applications covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

106 hp

Weight

4490 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

106 hp

Recorded weight

4490 kg

Transmissions

8-speed

Production years

1966-1978

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVolvoReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockstandardReference

Steeringhydrostatic powerReference

Disc brakesReference

Cab optional with heatReference

Engine

Volvo 5.1L 6-cyl dieselReference

Volvo 5.5L 6-cyl dieselReference

Fuel tank149.9 LReference

Engine79.0 kWReference

Volvo D50AReference

dieselReference

6-cylinderReference

liquid-cooledReference

The D50 engine was used until 1975 when it was replaced by the D60.Reference

Displacement5.1 LReference

Bore/Stroke95 x 120 mmReference

Power79.0 kWReference

Compression17:1Reference

Rated RPM2300Reference

Torque352.6 NmReference

Torque RPM1600Reference

Starter volts12Reference

Starter power3.0 kWReference

Volvo D60Reference

Displacement5.5 LReference

Bore/Stroke98 x 120 mmReference

Torque363.0 NmReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

Pressure156.9 barReference

Pump flow29.9 lpmReference

Pump flow45.0 lpmReference

Rear lift2358 kgReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase269 cmReference

Weight4490 kgReference

Front tire7.50-18Reference

Rear tire18.4-34Reference

Ag front7.50-18Reference

Ag rear18.4-34Reference

Length396 cmReference

Width213 cmReference

Height (ROPS)256 cmReference

Front tread142 to 185 cmReference

Rear tread167 to 226 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
