Tractor · 1969Unverified

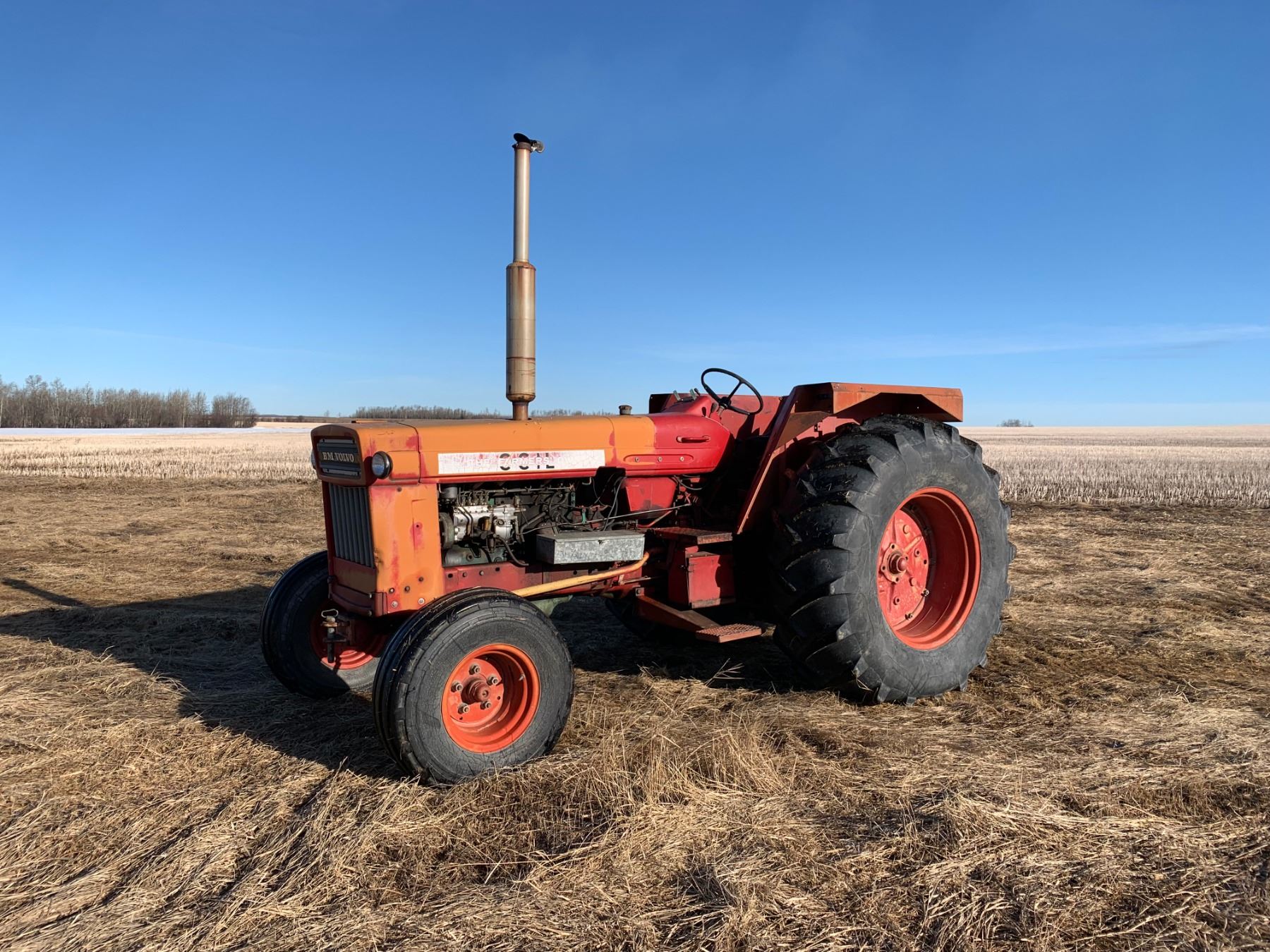

Volvo T810

Name: Volvo T810
Brand: Volvo

Volvo T810 — Row-Crop tractor · 133 hp. Reference specifications; pending source verification.

The Volvo T810 is a tractor with a rated output of 133 hp, categorising it among the more powerful machines in its class. It was manufactured from 1969 to 1978. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives through four-wheel drive with a hydrostatic transmission. The listed weight of the Volvo T810 is 5352 kg, and it is suited to tasks covering around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

133 hp

Weight

5352 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

133 hp

Recorded weight

5352 kg

Transmissions

8-speed

Production years

1969-1978

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVolvoReference

Row-Crop tractorReference

Built in Eskilstuna, SwedenReference

Total built3550Reference

Original price$40,000 (1978)Reference

Two-wheel driveReference

Differential lockstandardReference

Steeringhydrostatic powerReference

Disc brakesReference

Cab optional with heatReference

Variants

T8102WDReference

T8144WDReference

Engine

Volvo 5.1L 6-cyl dieselReference

Volvo 5.5L 6-cyl dieselReference

Fuel tank149.9 LReference

Engine99.2 kWReference

Volvo TD50AReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke95 x 120 mmReference

Power99.2 kWReference

Compression17:1Reference

Rated RPM2300Reference

Torque431.2 NmReference

Torque RPM1650Reference

StarterBoschReference

Starter volts12Reference

Starter power3.0 kWReference

Volvo TD60Reference

lqiuid-cooledReference

The TD50 engine was used until 1975 when it was replaced by the TD60.Reference

Displacement5.5 LReference

Bore/Stroke98 x 120 mmReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

TypeTrac-TrolReference

Pressure156.9 barReference

Valves2Reference

Pump flow29.9 lpmReference

Pump flow45.0 lpmReference

Rear lift2358 kgReference

Rear lift2798 kgReference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase269 cmReference

Weight5352 kgReference

Front tire11.00-16Reference

Rear tire18.4-38Reference

Ag front11.00-16Reference

Ag rear18.4-38Reference

Length424 cmReference

Width208 cmReference

Height (cab)259 cmReference

Front tread170 cmReference

Rear tread160 to 180 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
