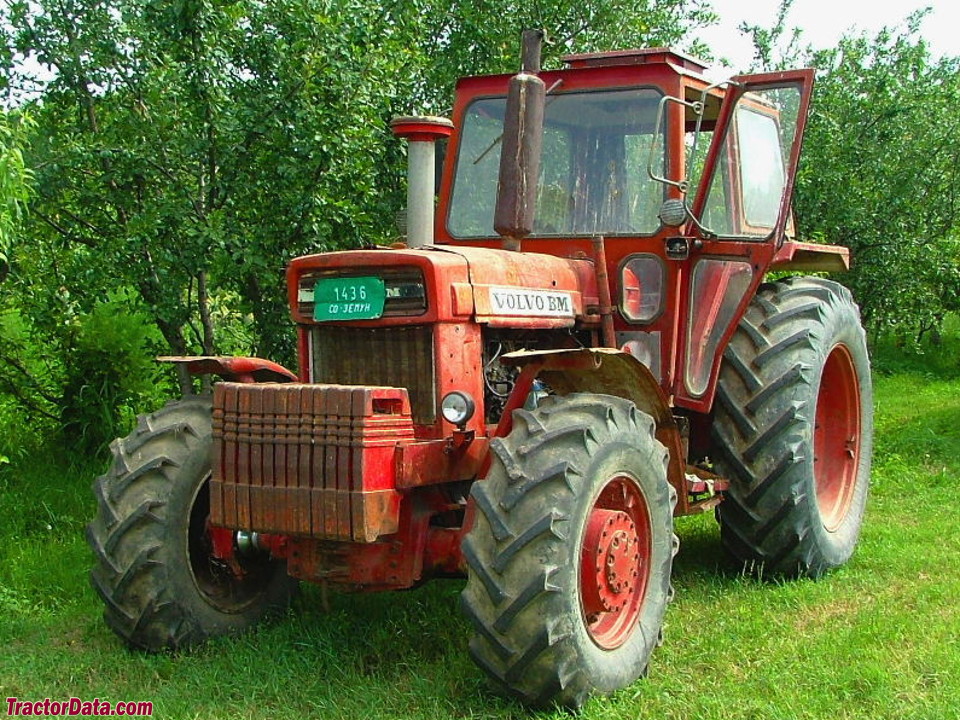

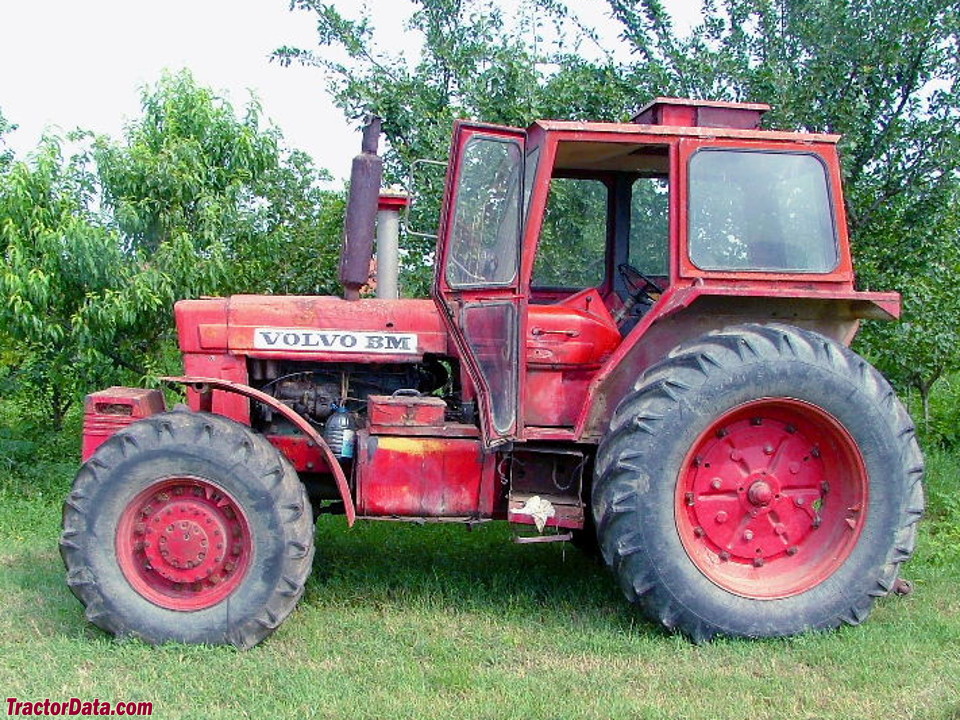

Volvo T814
Volvo T814 — Row-Crop tractor · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Weight
6441 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Row-Crop tractorReference
Total built6370Reference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic powerReference
Disc brakesReference
Cab optional with heatReference
Variants
T8102WDReference
T8144WDReference
Engine
Volvo 5.1L 6-cyl dieselReference
Volvo 5.5L 6-cyl dieselReference
Fuel tank149.9 LReference
Engine104.4 kWReference
Volvo TD50AReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke95 x 120 mmReference
Power84.3 kWReference
Compression17:1Reference
Rated RPM2300Reference
Torque432.0 NmReference
Torque RPM1650Reference
Starter volts12Reference
Starter power3.0 kWReference
Volvo TD60Reference
lqiuid-cooledReference
The TD50 engine was used until 1975 when it was replaced by the TD60.Reference
Displacement5.5 LReference
Bore/Stroke98 x 120 mmReference
Power104.4 kWReference
Torque465.1 NmReference
Torque RPM1600Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow29.9 lpmReference
Pump flow45.0 lpmReference
Rear lift2358 kgReference
Rear lift2798 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase284 cmReference
Weight6441 kgReference
Front tire14.9-24Reference
Rear tire18.4-38Reference
Ag front14.9-24Reference
Ag rear18.4-38Reference
Length436 cmReference
Width228 cmReference
Height (cab)259 cmReference
Front tread173 cmReference
Rear tread160 to 180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
