Tractor · 1955Unverified

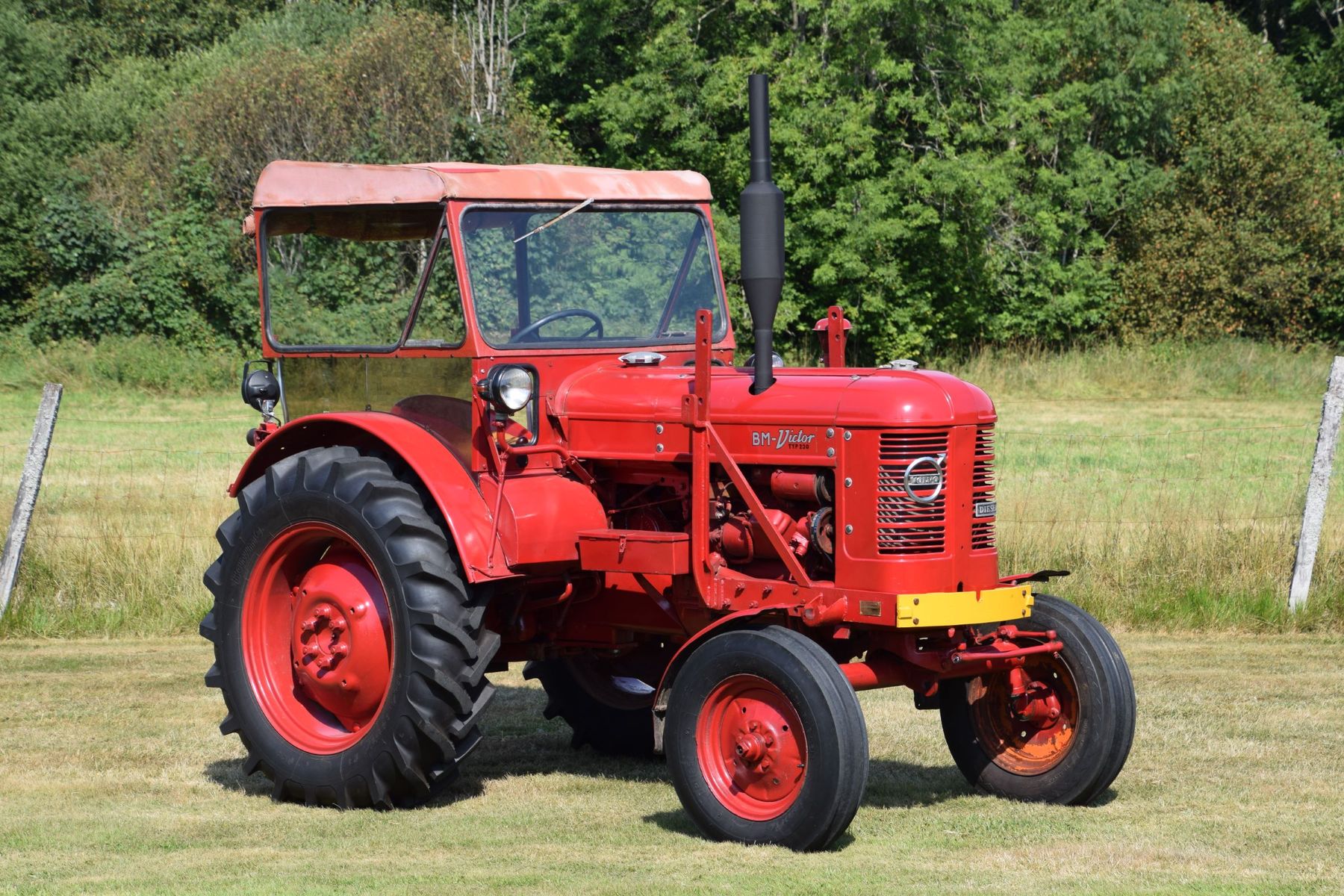

Volvo Victor T230
Volvo Victor T230 · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1910 kg
Hover a source tag to verify
Overview
ManufacturerVolvoReference
Total built4976Reference
Two-wheel driveReference
Disc brakesReference
Open operator station.Reference
Engine
Bolinder 2.2L 2-cyl dieselReference
Fuel tank50.0 LReference
Engine21.6 kWReference
Belt (claimed)20.1 kWReference
Bolinder 1052Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke105 x 130 mmReference
Power21.6 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression16.5:1Reference
Rated RPM1700Reference
Torque1647.5 NmReference
Torque RPM1000Reference
Starter volts12Reference
Starter power1.9 kWReference
Oil capacity8.5 LReference
Coolant capacity9.0 LReference
Intake valve clearance0.457 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Oil capacity7.0 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure110.0 barReference
Rear TypeIReference
Rear lift650 kgReference
Rear PTO Type540Reference
Engine RPM540@1700Reference
Dimensions
Wheelbase184 cmReference
Weight1910 kgReference
Front tire5.5x16Reference
Rear tire11x28Reference
Ag front5.5x16Reference
Ag rear11x28Reference
Length284 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
