Tractor · 2013Unverified

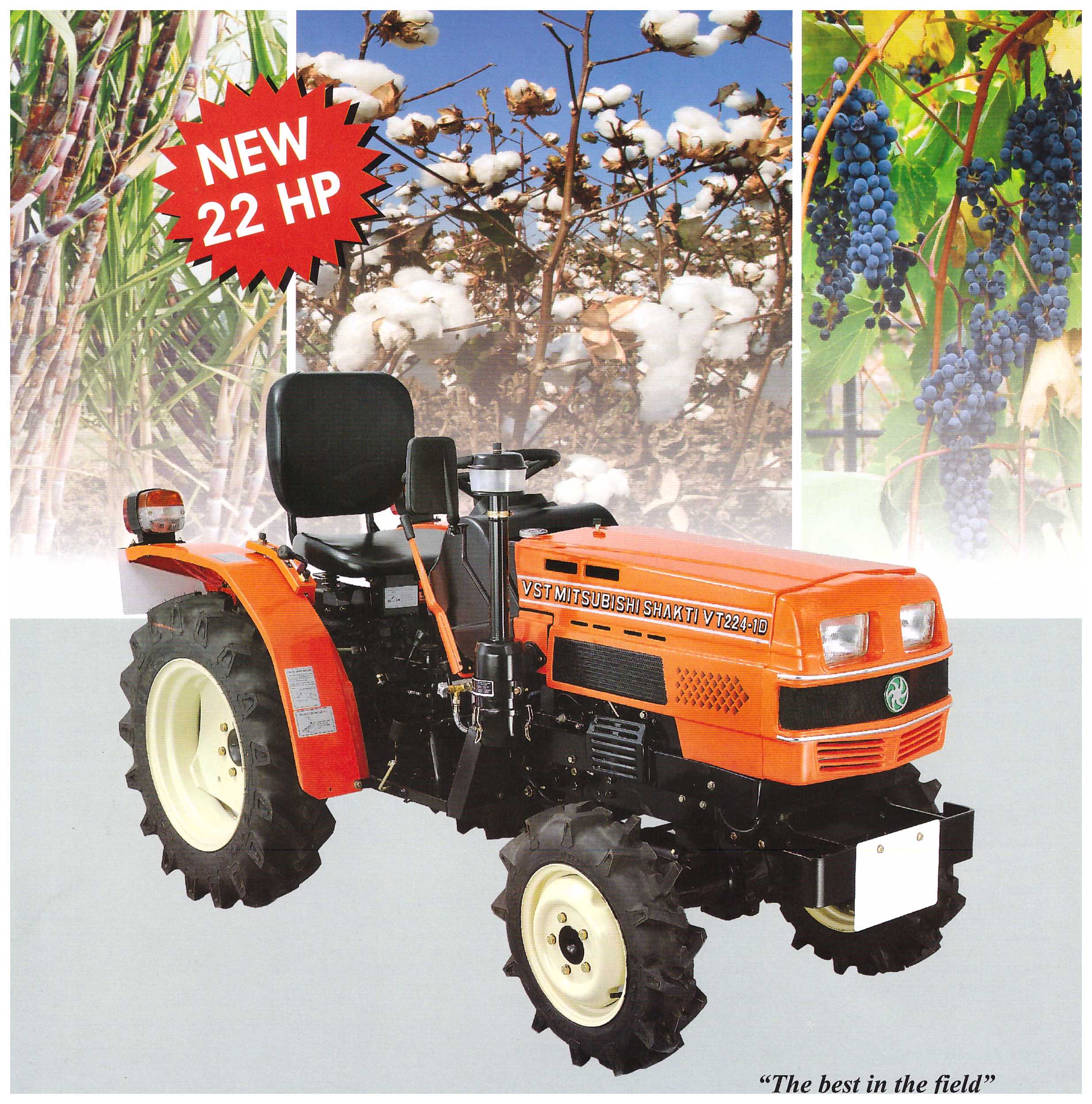

VST Mitsubishi Shakti VT224
VST Mitsubishi Shakti VT224 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
739 kg
Hover a source tag to verify
Overview
ManufacturerVSTReference
Compact Utility tractorReference
Built in Honsur, Tamil Nadu, IndiaReference
Four-wheel driveReference
Shoe brakesReference
Open operator station.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine16.4 kWReference
Mitsubishi V3DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 78 mmReference
Power16.4 kWReference
Air cleaneroil bathReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM3000Reference
Torque54.0 NmReference
Torque RPM2200Reference
StarterelectricReference
Starter volts12Reference
Starter power1.6 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift499 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase141 cmReference
Weight739 kgReference
Front tire5-12Reference
Rear tire8-18Reference
Ag front5-12Reference
Ag rear8-18Reference
Length254 cmReference
Width108 cmReference
Height124 cmReference
Ground clearance19 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
