Tractor · 1955Unverified

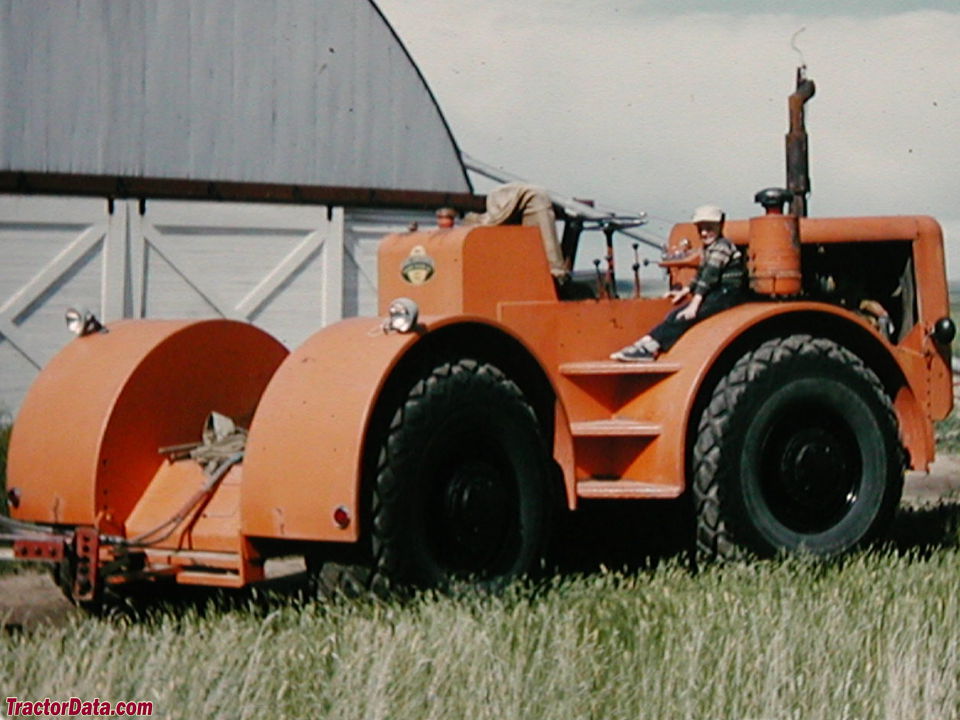

Wagner TR-14
Wagner TR-14 — TR Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
8074 kg
Hover a source tag to verify
Overview
ManufacturerWagnerReference
Four-wheel Drive (4WD) tractorReference
Built in Portland, Oregon, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic drum brakesReference
Open operator station. Cab optional.Reference
Variants
TR-14ag tractorReference
TRS-14scraper/dozer tractorReference
Engine
Cummins 11.0L 6-cyl dieselReference
Engine130.5 kWReference
Cummins HBI-600Reference
dieselReference
6-cylinderReference
liquid-cooled vertical L-headReference
Displacement11.0 LReference
Bore/Stroke124 x 152 mmReference
Power130.5 kWReference
Air cleaneroil bathReference
Rated RPM2100Reference
Torque664.4 NmReference
Torque RPM1600Reference
Starter volts24Reference
Transmission
10-speedReference
TransmissionFuller R-96Reference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Capacities
Fuel359.6 LReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Capacity113.6 LReference
Dimensions
Wheelbase330 cmReference
Weight8074 kgReference
Front tire18.00x26Reference
Rear tire18.00x26Reference
Ag front18.00x26Reference
Ag rear18.00x26Reference
Length601 cmReference
Width259 cmReference
Height228 cmReference
Height (cab)289 cmReference
Ground clearance81 cmReference
Front tread200 cmReference
Rear tread200 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
