Tractor · 1959Unverified

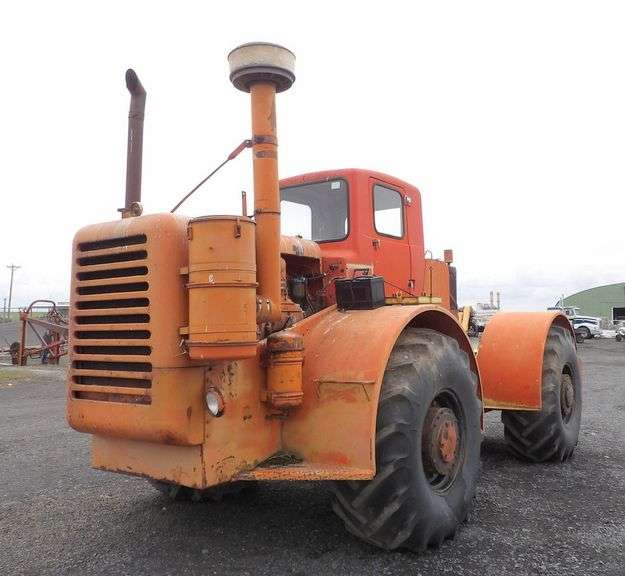

Wagner TR-14A
Wagner TR-14A — TR Series · 220 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
220 hp
Max power
110.8 kW
Weight
9548 kg
Hover a source tag to verify
Overview
ManufacturerWagnerReference
Four-wheel Drive (4WD) tractorReference
Built in Portland, Oregon, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic drum brakesReference
Open operator station. Cab optional.Reference
Engine
Cummins 12.2L 6-cyl dieselReference
Engine164.1 kWReference
Drawbar (tested)110.8 kWReference
Cummins NH-220Reference
dieselReference
6-cylinderReference
liquid-cooled vertical L-headReference
Displacement12.2 LReference
Bore/Stroke130 x 152 mmReference
Power164.1 kWReference
Air cleaneroil bathReference
Compression15.5:1Reference
Rated RPM2100Reference
Starter volts24Reference
Coolant capacity36.9 LReference
Max power110.8 kWReference
Transmission
10-speedReference
TransmissionFuller R96Reference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Capacities
Fuel359.6 LReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Capacity113.6 LReference
Dimensions
Wheelbase330 cmReference
Weight9548 kgReference
Front tire18.00x26Reference
Rear tire18.00x26Reference
Ag front18.00x26Reference
Ag rear18.00x26Reference
Length601 cmReference
Width259 cmReference
Height228 cmReference
Height (cab)289 cmReference
Ground clearance81 cmReference
Front tread200 cmReference
Rear tread200 cmReference
Test results
Diesel 10-speed 4WDJune 4 - 10, 1959Link: Nebraska Tractor Test 700 fileReference
Drawbar performanceReference
Fuel use41.6 l/hourReference
Gear 5 used for power test.Reference
Max pull8780 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
