Tractor · 1955Unverified

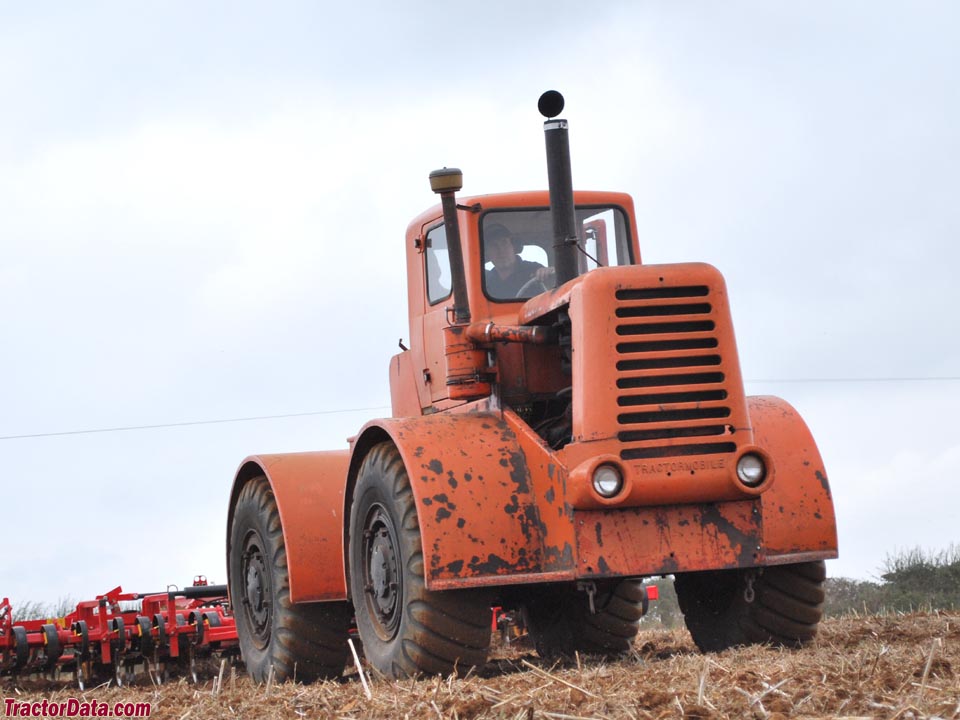

Wagner TR-9
Wagner TR-9 — TR Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Max power
65.2 kW
Weight
6926 kg
Hover a source tag to verify
Overview
ManufacturerWagnerReference
Four-wheel Drive (4WD) tractorReference
Built in Portland, Oregon, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Steeringhydraulic powerReference
Hydraulic drum brakesReference
Open operator station. Cab optional.Reference
Variants
TR-9ag tractorReference
TRS-9scraper/dozer tractorReference
Engine
Cummins 8.1L 4-cyl dieselReference
Engine89.5 kWReference
Drawbar (claimed)50.7 kWReference
Drawbar (tested)65.2 kWReference
CumminsReference
dieselReference
4-cylinderReference
liquid-cooled vertical L-headReference
Displacement8.1 LReference
Bore/Stroke130 x 152 mmReference
Power89.5 kWReference
Air cleaneroil bathReference
Compression15.5:1Reference
Rated RPM1800Reference
Starter volts24Reference
Coolant capacity28.4 LReference
Max power65.2 kWReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Capacities
Fuel283.9 LReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Capacity113.6 LReference
Dimensions
Wheelbase274 cmReference
Weight6926 kgReference
Front tire15.00x26Reference
Rear tire15.00x26Reference
Ag front15.00x26Reference
Ag rear15.00x26Reference
Length508 cmReference
Width238 cmReference
Height220 cmReference
Height (cab)281 cmReference
Ground clearance76 cmReference
Test results
Diesel 10-speed 4WDSeptember 24 - 3, 1957Link: Nebraska Tractor Test 631 fileReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull7245 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
