Tractor · 1961Unverified

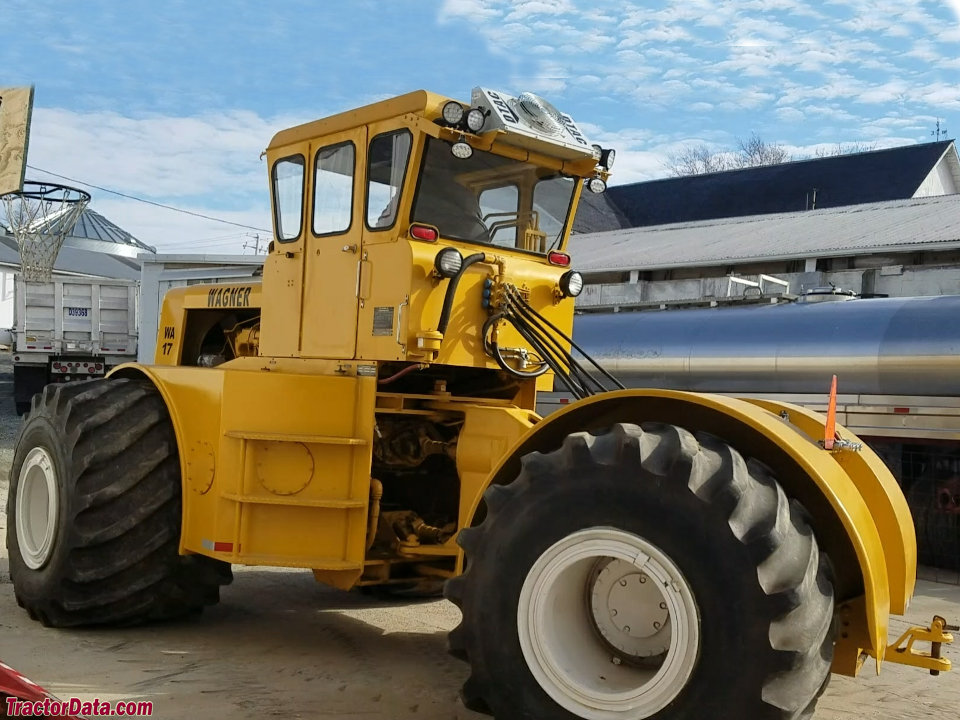

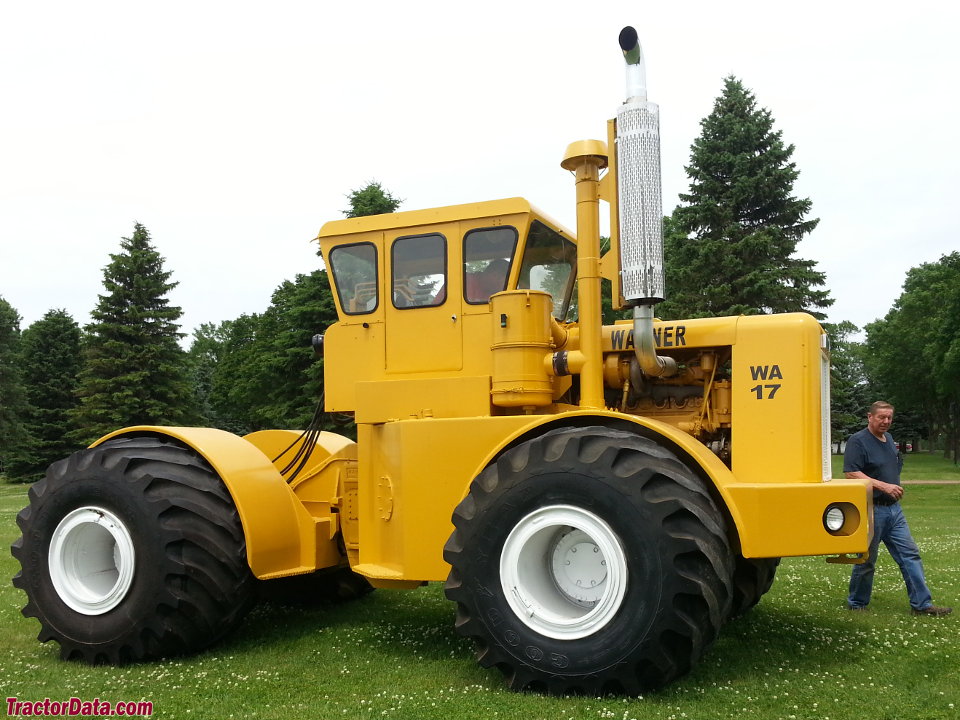

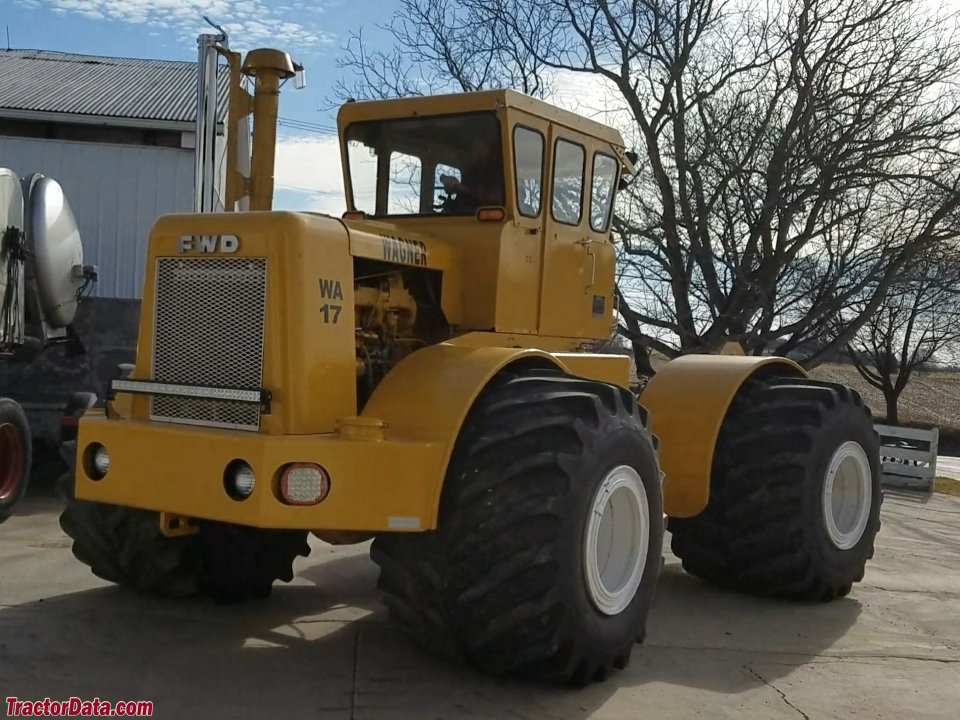

Wagner WA-17
Wagner WA-17 — WA Series · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
12247 kg
Hover a source tag to verify
Overview
ManufacturerWagnerReference
Four-wheel Drive (4WD) tractorReference
Built in Portland, Oregon, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Steeringhydraulic powerReference
Pneumatic brakesReference
Open operator station. Cab optional.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine186.4 kWReference
Cummins NH-250Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power186.4 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Coolant capacity60.6 LReference
Transmission
10-speedReference
TransmissionFuller 10-G-1220Reference
Gears10 forward and 2 reverseReference
Capacities
Fuel567.8 LReference
Steering18.9 LReference
PTO & Hydraulics
Hydraulic system302.8 LReference
Capacity302.8 LReference
Pump flow162.8 lpmReference
Steering flow124.9 lpmReference
Steering cap.18.9 LReference
Dimensions
Wheelbase345 cmReference
Weight12247 kgReference
Front tire26.5x25Reference
Rear tire26.5x25Reference
Standard tires (ag)Front: 26.5x25. Rear: 26.5x25Reference
Length624 cmReference
Width281 cmReference
Height243 cmReference
Height (cab)322 cmReference
Ground clearance45 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
