Tractor · 1961Unverified

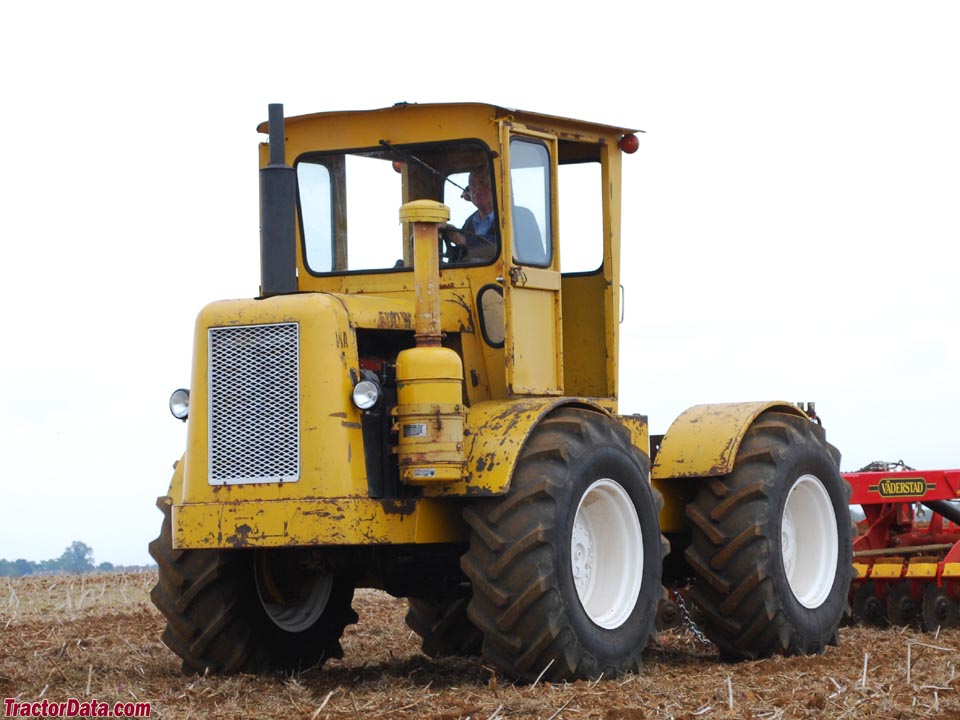

Wagner WA-4

Name: Wagner WA-4
Brand: Wagner

Wagner WA-4 — WA Series · 102 hp. Reference specifications; pending source verification.

The Wagner WA-4 is a tractor model with a rated output of 102 hp, placing it in the middle of its class for power. Produced between 1961 and 1969, the WA-4 is equipped with a 4-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system and 8-speed gearbox. Its listed weight is 4672 kg, and it is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

102 hp

Weight

4672 kg

Catalogue coverage

Variants represented

Richest spec table

36 rows

Recorded power

102 hp

Recorded weight

4672 kg

Transmissions

8-speed

Production years

1961-1969

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWagnerReference

Four-wheel Drive (4WD) tractorReference

Built in Portland, Oregon, USAReference

Four-wheel driveReference

Final drivesplanetaryReference

Steeringhydraulic powerReference

Hydraulic brakesReference

Open operator station. Cab optional.Reference

Engine

General Motors 3.5L 4-cyl dieselReference

Fuel tank189.2 LReference

Engine76.1 kWReference

General Motors 4-53Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.5 LReference

Bore/Stroke98 x 114 mmReference

Power76.1 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity21.8 LReference

Transmission

8-speedReference

TransmissionFuller R-46Reference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

Pump flow83.3 lpmReference

Dimensions

Wheelbase228 cmReference

Weight4672 kgReference

Front tire16.9x26Reference

Rear tire16.9x26Reference

Standard tires (ag)Front: 16.9x26. Rear: 16.9x26Reference

Length473 cmReference

Width199 cmReference

Height217 cmReference

Height (cab)274 cmReference

Ground clearance35 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
