Tractor · 1961Unverified

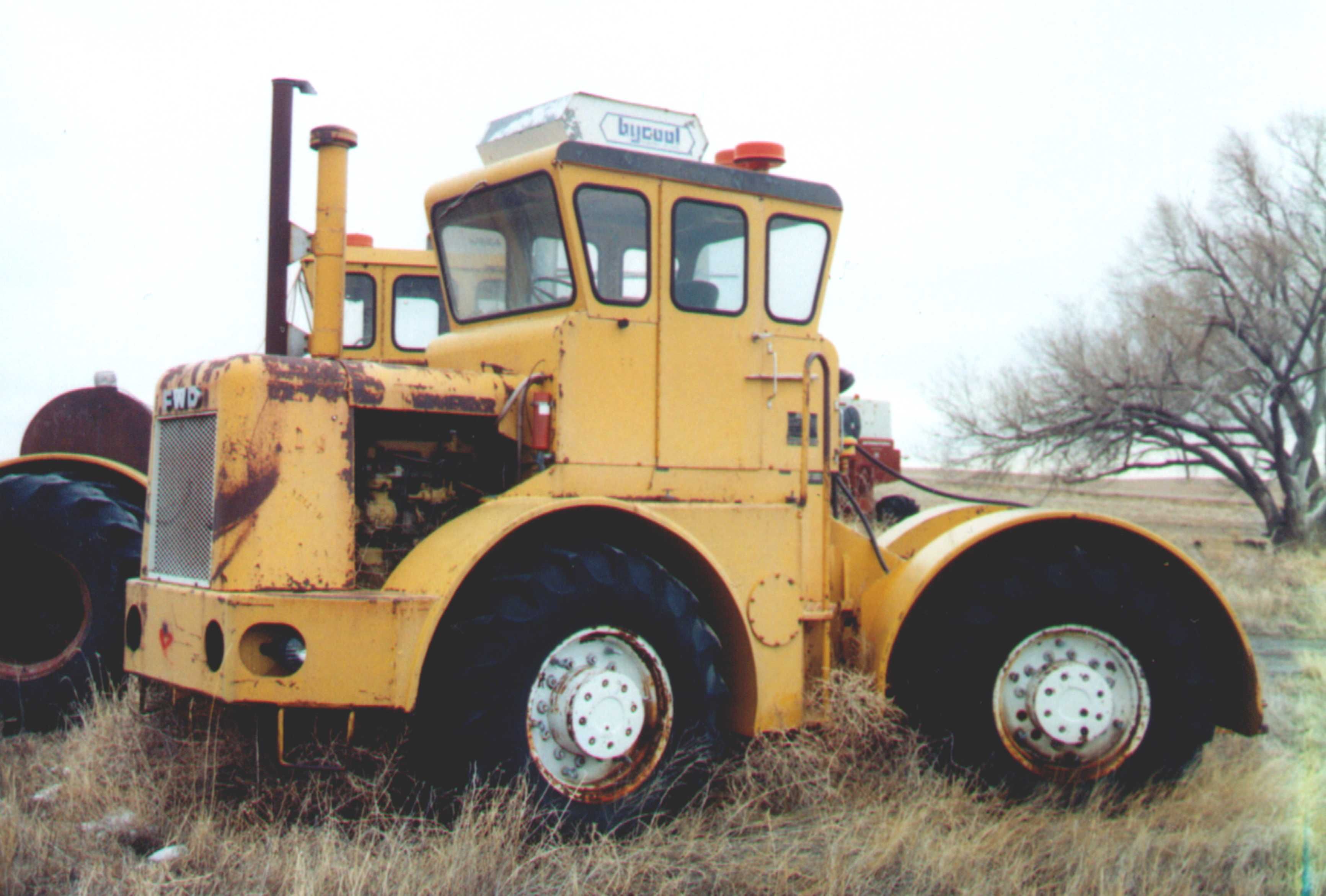

Wagner WA-9
Wagner WA-9 — WA Series · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
8210 kg
Hover a source tag to verify
Overview
ManufacturerWagnerReference
Four-wheel Drive (4WD) tractorReference
Built in Portland, Oregon, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Steeringhydraulic powerReference
Hydraulic brakesReference
Open operator station. Cab optional.Reference
Engine
Cummins 7.6L 6-cyl dieselReference
Engine119.3 kWReference
Cummins C-160Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke113 x 127 mmReference
Power119.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts24Reference
Coolant capacity51.1 LReference
Transmission
10-speedReference
TransmissionFuller R-96Reference
Gears10 forward and 2 reverseReference
Capacities
Fuel359.6 LReference
PTO & Hydraulics
Hydraulic system193.0 LReference
Capacity193.0 LReference
Pump flow253.6 lpmReference
Dimensions
Wheelbase309 cmReference
Weight8210 kgReference
Front tire15-26Reference
Rear tire15-26Reference
Standard tires (ag)Front: 15-26. Rear: 15-26Reference
Length563 cmReference
Width238 cmReference
Height223 cmReference
Height (cab)284 cmReference
Ground clearance40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
