Tractor · 1910Unverified

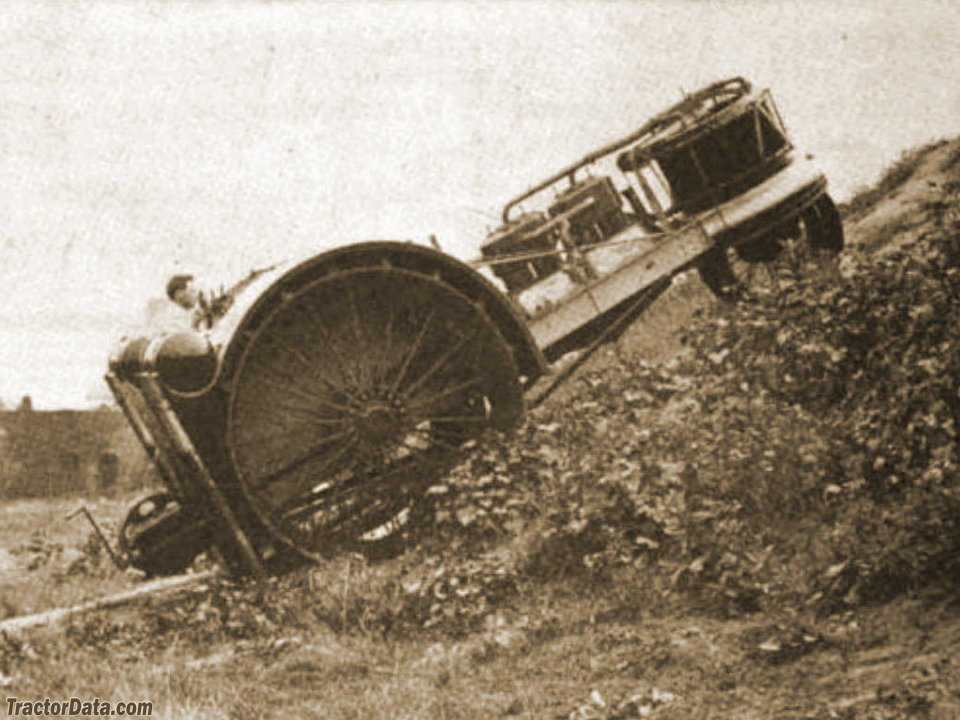

Wallis Bear
Wallis Bear · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
7257 kg
Hover a source tag to verify
Overview
ManufacturerWallis (a part of J.I. Case Plow Works)Reference
FactoriesCleveland, Ohio, USAReference
FactoriesRacine, Wisconsin, USAReference
Information on the Wallis Bear is limited and conflicting. It appears the Bear name may have been used on a variety of Wallis tractors going back to 1902, with a claim of 40 to 80 belt horsepower. The basic three-wheel configuration is the same. One Wallis Bear survives today, from a nine or ten tractor production run that occured around 1912.Reference
Drive3x2 2WDReference
Steeringmechanical power assistReference
Open operator station, optional canopy.Reference
Engine
Wallis 17.4L 4-cyl gasolineReference
Wallis 24.3L 4-cyl gasolineReference
Fuel tank227.1 LReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)37.3 kWReference
Plows10Reference
WallisReference
gasolineReference
4-cylinderReference
liquid-cooledReference
The 6.5-inch bore engine is mentioned in literature from 1914.Reference
Displacement17.4 LReference
Bore/Stroke165 x 203 mmReference
Rated RPM650Reference
Starter typehand-crankReference
The 7.5-inch bore engine is found on the only known remaining Wallis Bear tractor.Reference
Displacement24.3 LReference
Bore/Stroke190 x 229 mmReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight7257 kgReference
Links
Wallis Bear: article on the only surviving Bear, at Farm CollectorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
