Tractor · 1914Unverified

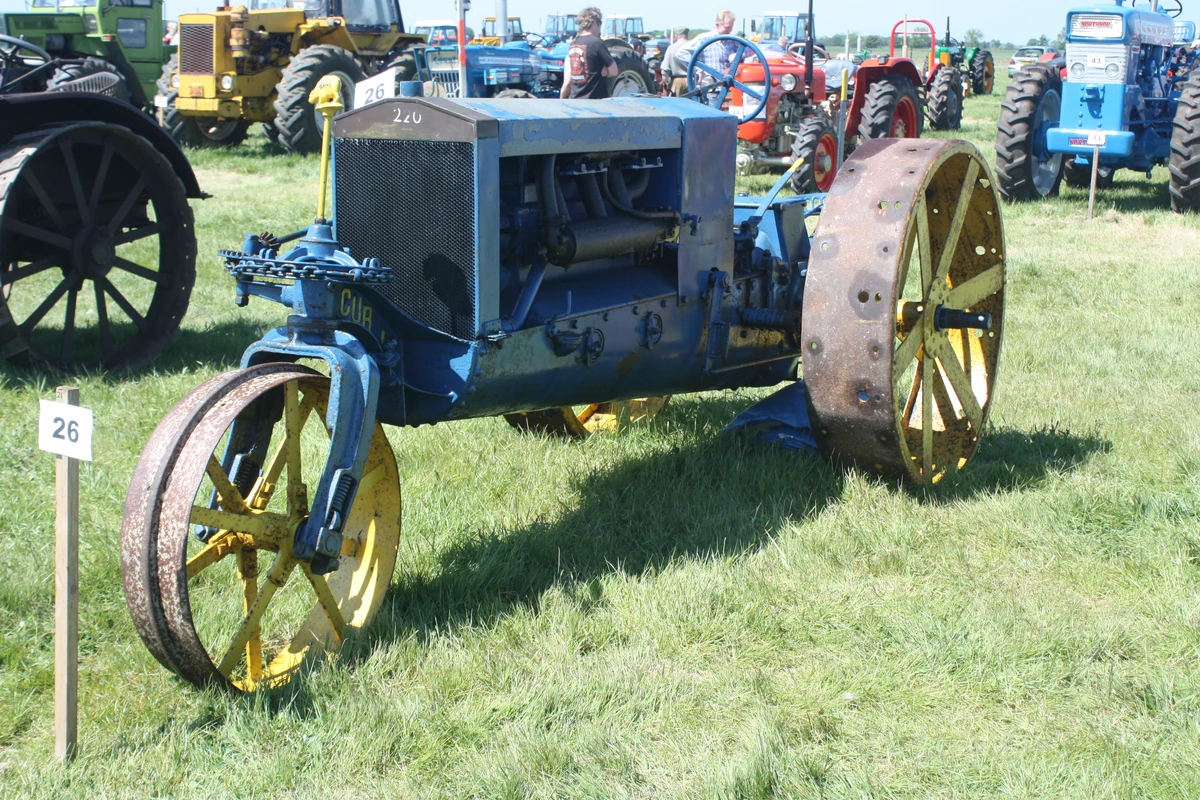

Wallis Cub

Name: Wallis Cub
Brand: Wallis

Wallis Cub — Standard-tread tractor · 26 hp. Reference specifications; pending source verification.

The Wallis Cub is a compact tractor model with a rating of 26 hp, one of the smaller options in its class. Manufactured between 1914 and 1917, the Cub features a 4-cylinder petrol liquid-cooled engine and a two-wheel drive system with a 2-speed gearbox. The tractor's listed weight is 3855 kg, and it is suited to tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

3855 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

26 hp

Recorded weight

3855 kg

Transmissions

2-speed gear

Production years

1914-1917

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWallis (a part of J.I. Case Plow Works)Reference

Standard-tread tractorReference

Built in Racine, Wisconsin, USAReference

Drive3x2 2WDReference

SteeringmanualReference

Engine

Wallis 13.0L 4-cyl gasolineReference

Fuel tank113.6 LReference

Drawbar (claimed)19.4 kWReference

Belt (claimed)38.8 kWReference

Plows4 (14-inch)Reference

WallisReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement13.0 LReference

Bore/Stroke152 x 178 mmReference

Rated RPM650Reference

Starter typehand-crankReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Wheelbase260 cmReference

Weight3855 kgReference

Front tire34x14Reference

Rear tire60x20Reference

Ag front34x14 (steel)Reference

Ag rear60x20 (steel)Reference

Length434 cmReference

Width187 cmReference

Height182 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
