Tractor · 1917Unverified

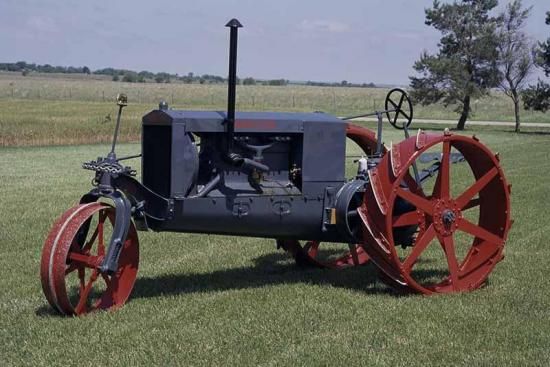

Wallis Cub Junior J
Wallis Cub Junior J — Standard-tread tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1360 kg
Hover a source tag to verify
Overview
ManufacturerWallis (a part of J.I. Case Plow Works)Reference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Drive3x2 2WDReference
SteeringmanualReference
Engine
Wallis 5.3L 4-cyl gasolineReference
Drawbar (claimed)11.2 kWReference
Belt (claimed)22.4 kWReference
Plows2-3 (14 inch)Reference
WallisReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement5.3 LReference
Bore/Stroke108 x 146 mmReference
Rated RPM900Reference
Starter typehand-crankReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight1360 kgReference
Rear tire48x12Reference
Ag rear48x12 (steel)Reference
Length436 cmReference
Width152 cmReference
Height162 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
