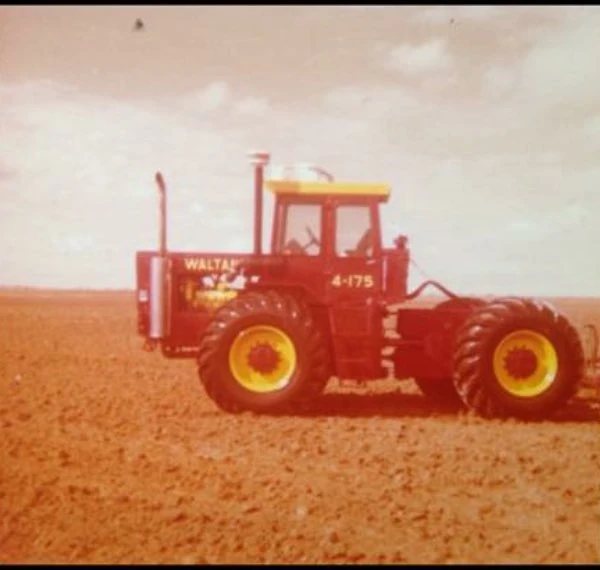

The Waltanna 4-175 is a tractor model with a rated power output of 175 hp, placing it at the more powerful end of its class. This model was manufactured from 1978 to 1981. It features an 8-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 10-speed gearbox. The operating weight of the Waltanna 4-175 is 8150 kg, suitable for operations spanning 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
8150 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
175 hp
Recorded weight
8150 kg
Transmissions
10-speed gear
Production years
1978-1981
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerWaltannaReference
Four-wheel Drive (4WD) tractorReference
Built in Tarrington, Victoria, AustraliaReference
Four-wheel driveReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Engine130.5 kWReference
Caterpillar 3208Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power130.5 kWReference
Rated RPM2800Reference
Operating RPM1400-2800Reference
Torque539.7 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
10-speed gearReference
TransmissionSpicerReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Hydraulic system65.9 LReference
Capacity65.9 LReference
Pump flow115.1 lpmReference
Dimensions
Weight8150 kgReference
Front tire23.1x30Reference
Rear tire23.1x30Reference
Ag front23.1x30Reference
Ag rear23.1x30Reference
Length564 cmReference
Width248 cmReference
Height (exhaust)325 cmReference
Front tread189 cmReference
Rear tread189 cmReference
Speeds
With 23.1x30 tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
