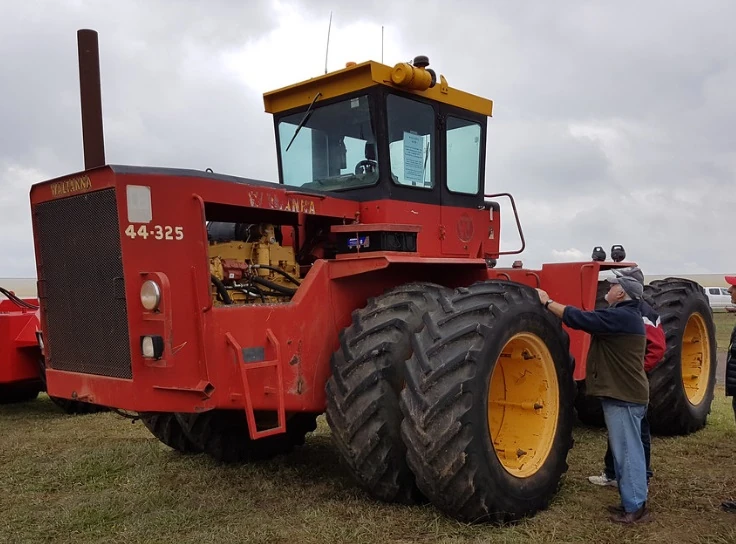

The Waltanna 4-325 is a tractor with a rated power output of 325 hp, placing it at the upper end of its class in terms of power. It was produced from 1978 to 1981. The model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a 14-speed gearbox. Its listed operating weight is 12,500 kg, and it is suitable for operations covering 1,500+ acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
325 hp
Weight
12500 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
325 hp
Recorded weight
12500 kg
Transmissions
14-speed gear
Production years
1978-1981
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerWaltannaReference
Four-wheel Drive (4WD) tractorReference
Built in Tarrington, Victoria, AustraliaReference
Four-wheel driveReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Engine242.4 kWReference
Caterpillar 3406Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power242.4 kWReference
Rated RPM2100Reference
Operating RPM1300-2100Reference
Torque1315.3 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
14-speed gearReference
TransmissionSpicerReference
TypegearReference
Gears14 forward and 2 reverseReference
PTO & Hydraulics
Hydraulic system79.9 LReference
Capacity79.9 LReference
Pump flow115.1 lpmReference
Dimensions
Weight12500 kgReference
Front tire23.1x34Reference
Rear tire23.1x34Reference
Ag front23.1x34Reference
Ag rear23.1x34Reference
Length608 cmReference
Width420 cmReference
Height (exhaust)325 cmReference
Front tread262 cmReference
Rear tread262 cmReference
Speeds
With 23.1x34 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
