Tractor · 1981Unverified

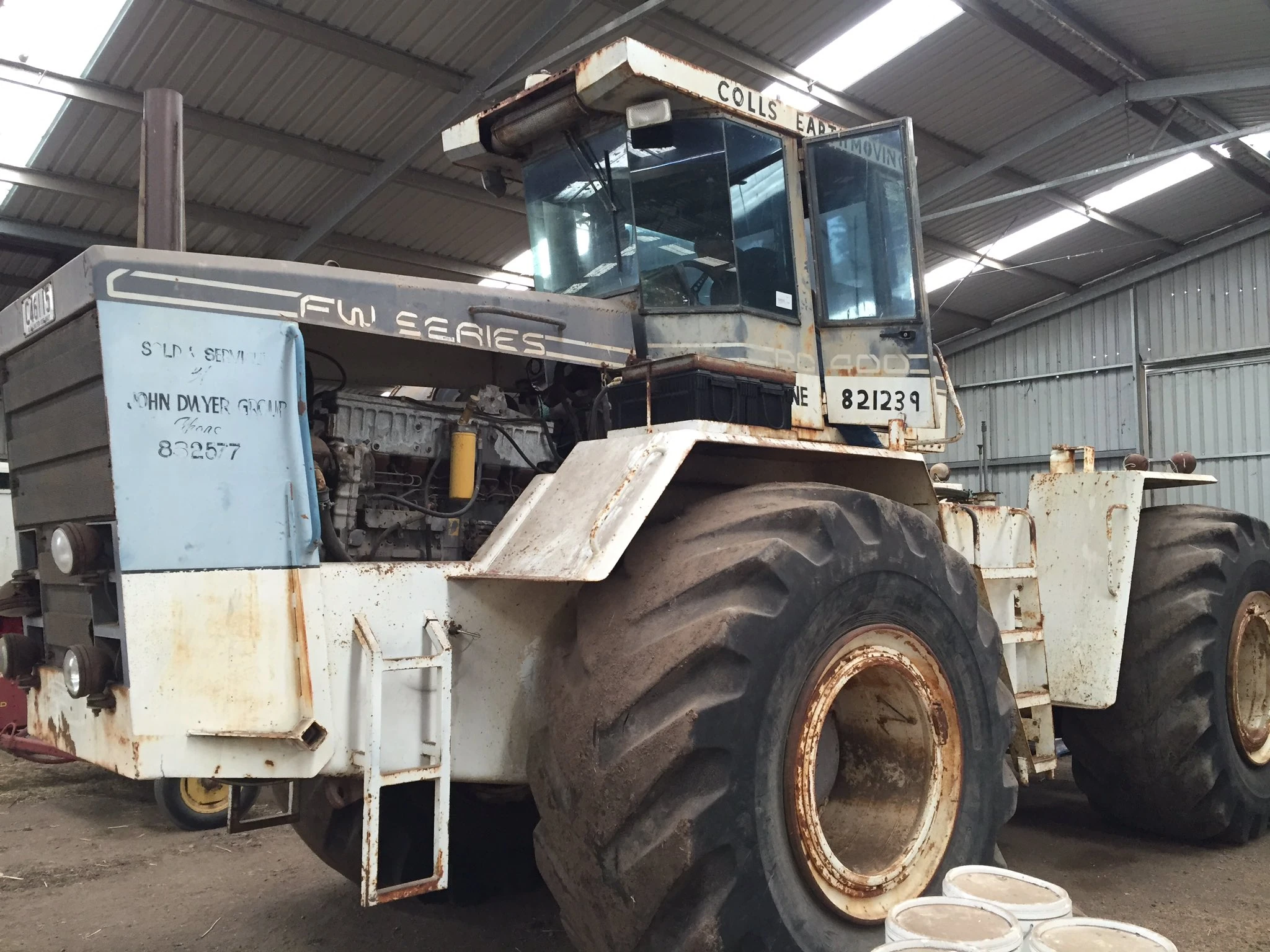

Waltanna 44-150
Waltanna 44-150 — 44 Series · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
8150 kg
Hover a source tag to verify
Overview
ManufacturerWaltannaReference
Four-wheel Drive (4WD) tractorReference
Built in Tarrington, Victoria, AustraliaReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Engine111.9 kWReference
Caterpillar 3208Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power111.9 kWReference
Rated RPM2200Reference
Operating RPM1400-2200Reference
Torque501.7 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
20-speed gearReference
TypegearReference
Gears20 forward and 4 reverseReference
Capacities
Fuel786.9 LReference
PTO & Hydraulics
Hydraulic system135.1 LReference
Typeopen centerReference
Typeclosed centerReference
Capacity135.1 LReference
Pressure137.9 barReference
Valves2Reference
Pump flow126.0 lpmReference
Dimensions
Weight8150 kgReference
Front tire23.1x30Reference
Rear tire23.1x30Reference
Ag front23.1x30Reference
Ag rear23.1x30Reference
Length564 cmReference
Width248 cmReference
Height (exhaust)305 cmReference
Front tread189 cmReference
Rear tread189 cmReference
Speeds
With 23.1x30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
