Tractor · 1981Unverified

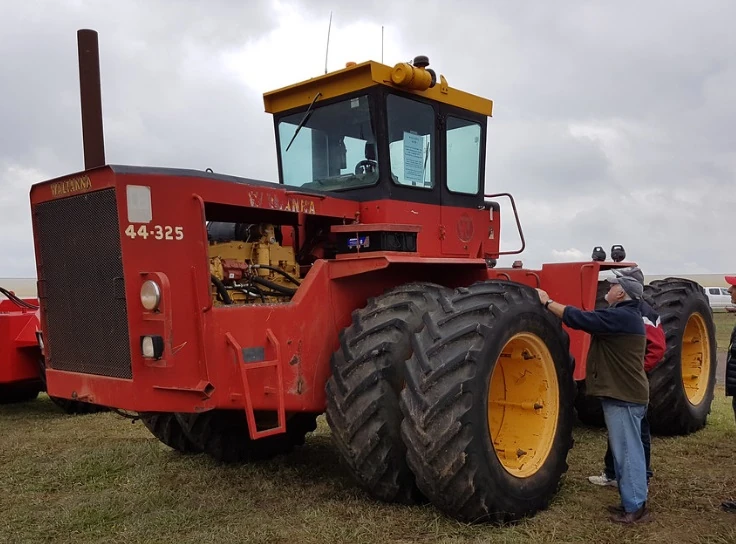

Waltanna 44-325
Waltanna 44-325 — 44 Series · 325 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
325 hp
Weight
12500 kg
Hover a source tag to verify
Overview
ManufacturerWaltannaReference
Four-wheel Drive (4WD) tractorReference
Built in Tarrington, Victoria, AustraliaReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 14.6L 6-cyl dieselReference
Engine242.4 kWReference
Caterpillar 3406DITReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.6 LReference
Bore/Stroke137 x 165 mmReference
Power242.4 kWReference
Rated RPM2100Reference
Operating RPM1500-2100Reference
Torque1315.3 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
20-speed gearReference
12-speed full power shiftReference
TypegearReference
Gears20 forward and 4 reverseReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Capacities
Fuel850.1 LReference
PTO & Hydraulics
Hydraulic system135.1 LReference
Typeclosed centerReference
Capacity135.1 LReference
Pressure206.8 barReference
Valves3Reference
Pump flow113.6 lpmReference
Dimensions
Weight12500 kgReference
Front tire20.8x38Reference
Rear tire20.8x38Reference
Ag front20.8x38Reference
Ag rear20.8x38Reference
Length608 cmReference
Width420 cmReference
Height (exhaust)326 cmReference
Speeds
With 20.8x38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
