Tractor · 1986Unverified

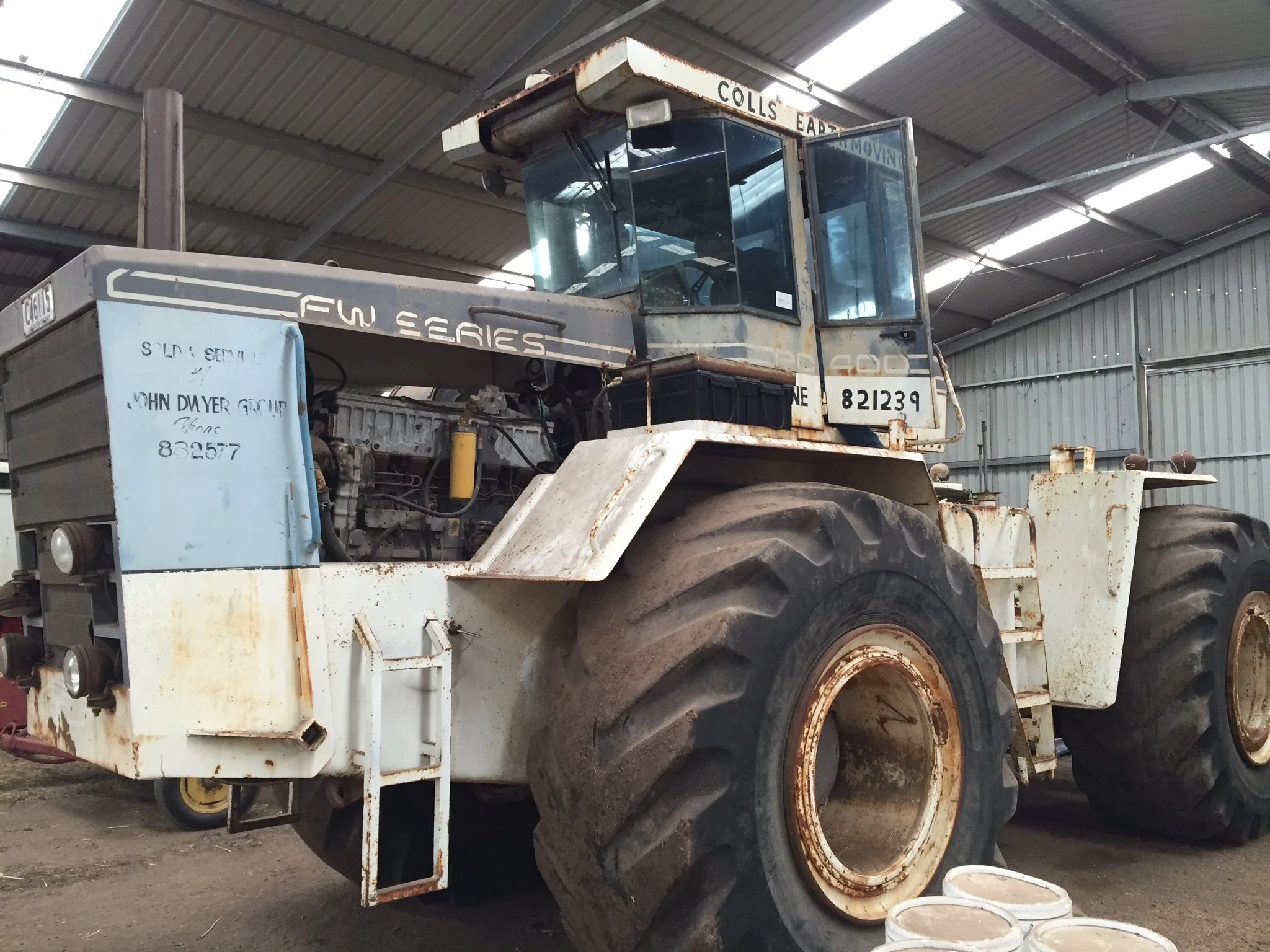

Waltanna FW-280

Name: Waltanna FW-280
Brand: Waltanna

Waltanna FW-280 — Four-wheel Drive (4WD) tractor · 280 hp. Reference specifications; pending source verification.

The Waltanna FW-280 is a tractor boasting a 280 hp rated output, categorising it within the higher-powered machines in its class. Produced from 1986 to 1988, the FW-280 is equipped with a 6-cylinder diesel liquid-cooled engine, which drives four-wheel drive via a 20-speed gearbox. Its listed weight is 11250 kg, making it suitable for jobs covering approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

280 hp

Weight

11250 kg

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

280 hp

Recorded weight

11250 kg

Transmissions

20-speed gear

Production years

1986-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWaltannaReference

Four-wheel Drive (4WD) tractorReference

Built in Tarrington, Victoria, AustraliaReference

Four-wheel driveReference

Articulated power steeringReference

Mechanical disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 10.5L 6-cyl dieselReference

Engine208.8 kWReference

Caterpillar 3306BReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement10.5 LReference

Bore/Stroke121 x 152 mmReference

Power208.8 kWReference

Rated RPM2100Reference

Torque1234.0 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Transmission

20-speed gearReference

TypegearReference

Gears20 forward and 4 reverseReference

Capacities

Fuel679.8 LReference

PTO & Hydraulics

Hydraulic system74.9 LReference

Typeclosed center load sensingReference

Capacity74.9 LReference

Pressure206.8 barReference

Valves4Reference

Pump flow82.9 lpmReference

Rear TypeIIIReference

Rear PTO Type1000Reference

Dimensions

Wheelbase342 cmReference

Weight11250 kgReference

Front tire18.4x38Reference

Rear tire18.4x38Reference

Ag front18.4x38Reference

Ag rear18.4x38Reference

Length660 cmReference

Width264 cmReference

Height (exhaust)339 cmReference

Front tread157 to 274 cmReference

Rear tread157 to 274 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
