Tractor · 1986Unverified

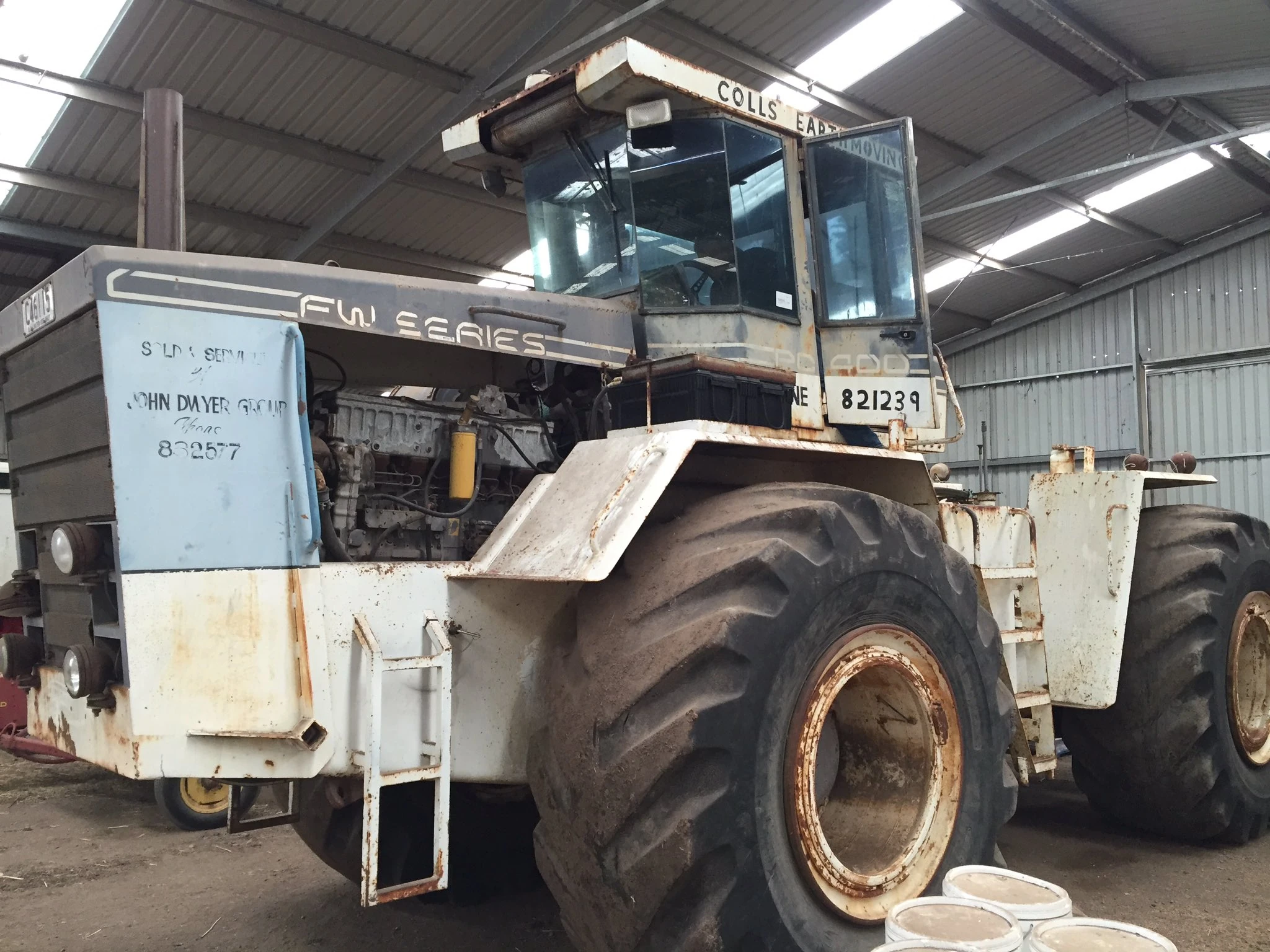

Waltanna FW-310

Name: Waltanna FW-310
Brand: Waltanna

Waltanna FW-310 — Four-wheel Drive (4WD) tractor · 310 hp. Reference specifications; pending source verification.

The Waltanna FW-310 is a tractor rated at 310 horsepower, positioning it at the higher end of its class. Initially produced between 1986 and 1988, the FW-310 features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine paired with a 20-speed gearbox and four-wheel drive. Its operating weight is listed at 16100 kg. The tractor is suitable for large-scale operations, covering areas of 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

310 hp

Weight

16100 kg

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

310 hp

Recorded weight

16100 kg

Transmissions

20-speed gear

Production years

1986-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWaltannaReference

Four-wheel Drive (4WD) tractorReference

Built in Tarrington, Victoria, AustraliaReference

Four-wheel driveReference

Articulated power steeringReference

Mechanical disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 14.6L 6-cyl dieselReference

Engine231.2 kWReference

Caterpillar 3406BReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.6 LReference

Bore/Stroke137 x 165 mmReference

Power231.2 kWReference

Rated RPM2100Reference

Torque1545.8 NmReference

Torque RPM1100Reference

Starter typeelectricReference

Transmission

20-speed gearReference

TypegearReference

Gears20 forward and 4 reverseReference

Capacities

Fuel2089.3 LReference

PTO & Hydraulics

Hydraulic system155.9 LReference

Typeclosed center load sensingReference

Capacity155.9 LReference

Pressure206.8 barReference

Valves3 to 6Reference

Pump flow82.9 lpmReference

Dimensions

Wheelbase381 cmReference

Weight16100 kgReference

Front tire23.1x34Reference

Rear tire23.1x34Reference

Ag front23.1x34Reference

Ag rear23.1x34Reference

Length735 cmReference

Width430 cmReference

Height (exhaust)325 cmReference

Front tread275 cmReference

Rear tread275 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
