Tractor · 1986Unverified

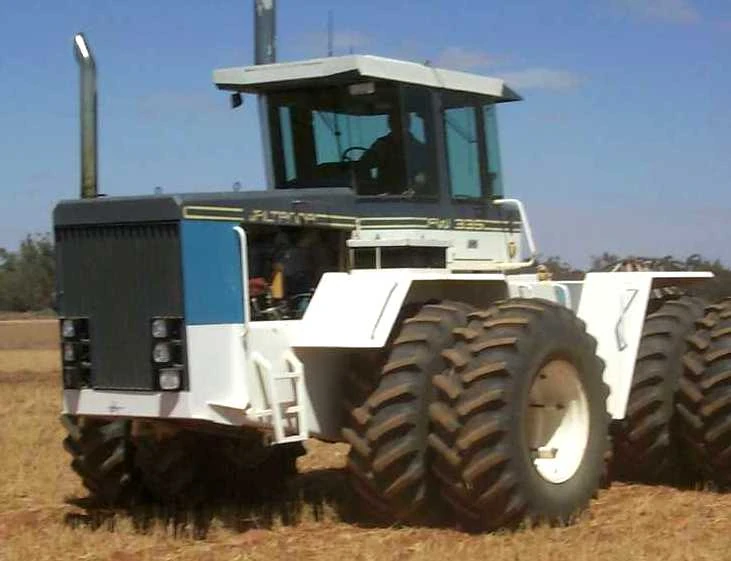

Waltanna FW-335

Name: Waltanna FW-335
Brand: Waltanna

Waltanna FW-335 — Four-wheel Drive (4WD) tractor · 335 hp. Reference specifications; pending source verification.

The Waltanna FW-335 is a tractor model with a rated output of 335 hp, positioning it among the higher-powered machines in its class. Manufactured from 1986 to 1988, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system via a 20-speed gearbox. The listed weight of the Walteranna FW-335 is 16250 kg. It is designed for use on areas of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

335 hp

Weight

16250 kg

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

335 hp

Recorded weight

16250 kg

Transmissions

20-speed gear

Production years

1986-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWaltannaReference

Four-wheel Drive (4WD) tractorReference

Built in Tarrington, Victoria, AustraliaReference

Four-wheel driveReference

Articulated power steeringReference

Mechanical disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 14.6L 6-cyl dieselReference

Engine249.8 kWReference

Caterpillar 3406BReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.6 LReference

Bore/Stroke137 x 165 mmReference

Power249.8 kWReference

Rated RPM2100Reference

Torque1535.0 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Transmission

20-speed gearReference

TypegearReference

Gears20 forward and 4 reverseReference

Capacities

Fuel2089.3 LReference

PTO & Hydraulics

Hydraulic system155.9 LReference

Typeclosed center load sensingReference

Capacity155.9 LReference

Pressure206.8 barReference

Valves3 to 6Reference

Pump flow82.9 lpmReference

Dimensions

Wheelbase381 cmReference

Weight16250 kgReference

Front tire23.1x34Reference

Rear tire23.1x34Reference

Ag front23.1x34Reference

Ag rear23.1x34Reference

Length735 cmReference

Width430 cmReference

Height (exhaust)325 cmReference

Front tread275 cmReference

Rear tread275 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
