Tractor · 1914Unverified

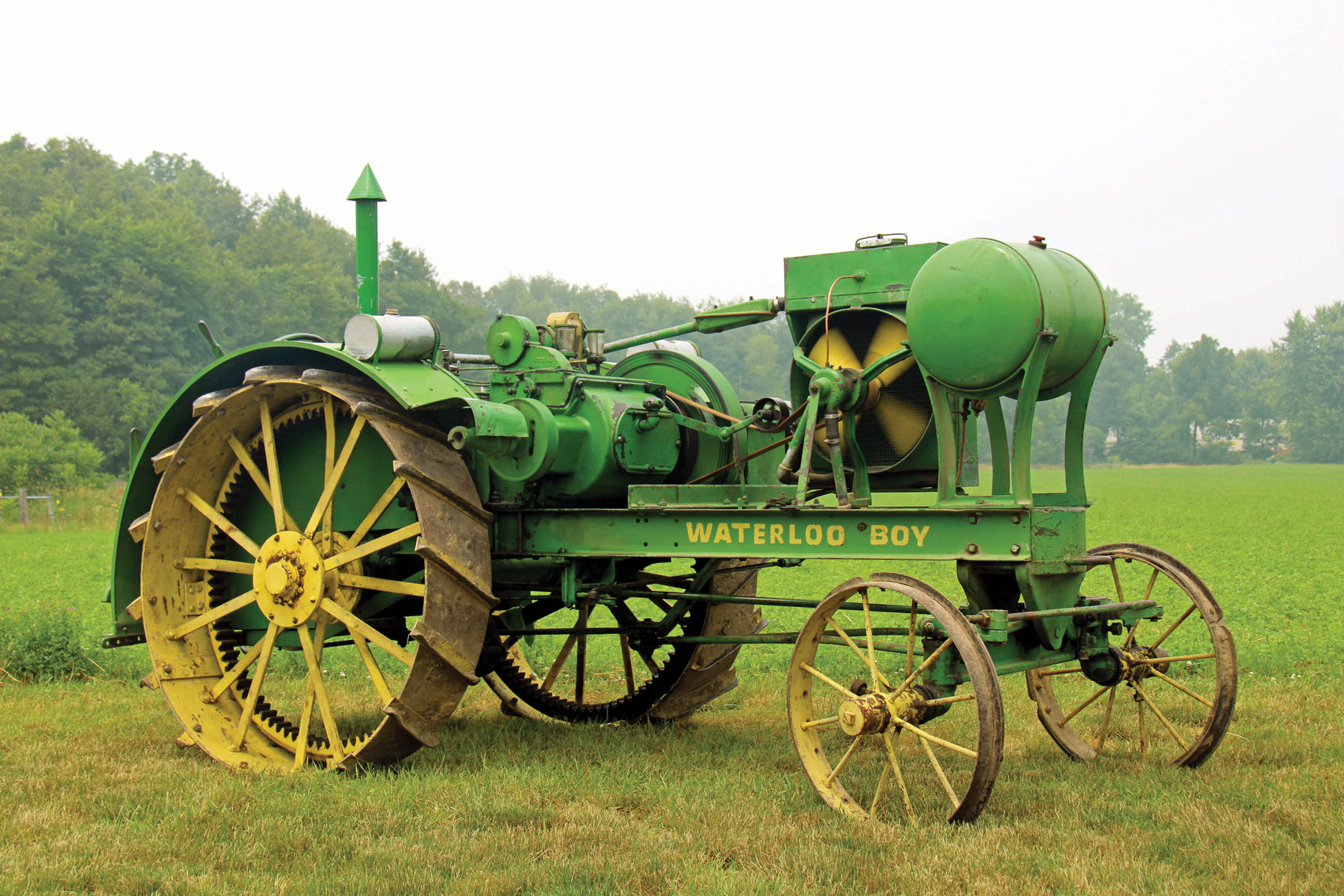

Waterloo Boy L

Name: Waterloo Boy L
Brand: Waterloo Boy

Waterloo Boy L — Standard-tread tractor · 7 hp. Reference specifications; pending source verification.

The Waterloo Boy L is a compact tractor rated at 7 hp, making it one of the more compact options in its class. Manufactured in 1914, it features a 2-cylinder petrol liquid-cooled engine. The tractor has a two-wheel drive system with a 1-speed gearbox and a listed weight of 1360 kg. It is designed for use on small areas, typically up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

7 hp

Weight

1360 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

7 hp

Recorded weight

1360 kg

Transmissions

1-speed unsynchronized gear

Production years

1914-1914

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWaterloo BoyReference

Standard-tread tractorReference

Built in Waterloo, Iowa, USAReference

Total built2Reference

Serial number records show only two model L Waterloo Boys, although more may have been built prior to 1914.Reference

Two-wheel driveReference

Steeringcapstan-and-chain, manualReference

Open operator station.Reference

Engine

Waterloo Gasoline Engine Company 5.5L 2-cyl keroseneReference

Drawbar (claimed)5.2 kWReference

Belt (claimed)11.2 kWReference

Waterloo Gasoline Engine CompanyReference

keroseneReference

2-cylinderReference

liquid-cooledReference

Displacement5.5 LReference

Bore/Stroke140 x 178 mmReference

Rated RPM750Reference

Transmission

1-speed unsynchronized gearReference

ManufacturerWaterloo BoyReference

Typeunsynchronized gearReference

Gears1 forward and reverseReference

Dimensions

Weight1360 kgReference

Front tire22x8Reference

Rear tire50x10Reference

Ag front22x8Reference

Ag rear50x10Reference

L Serial Numbers

19141000Reference

Final1001Reference

FAQ: How to read a serial number table.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
