Tractor · 1914Unverified

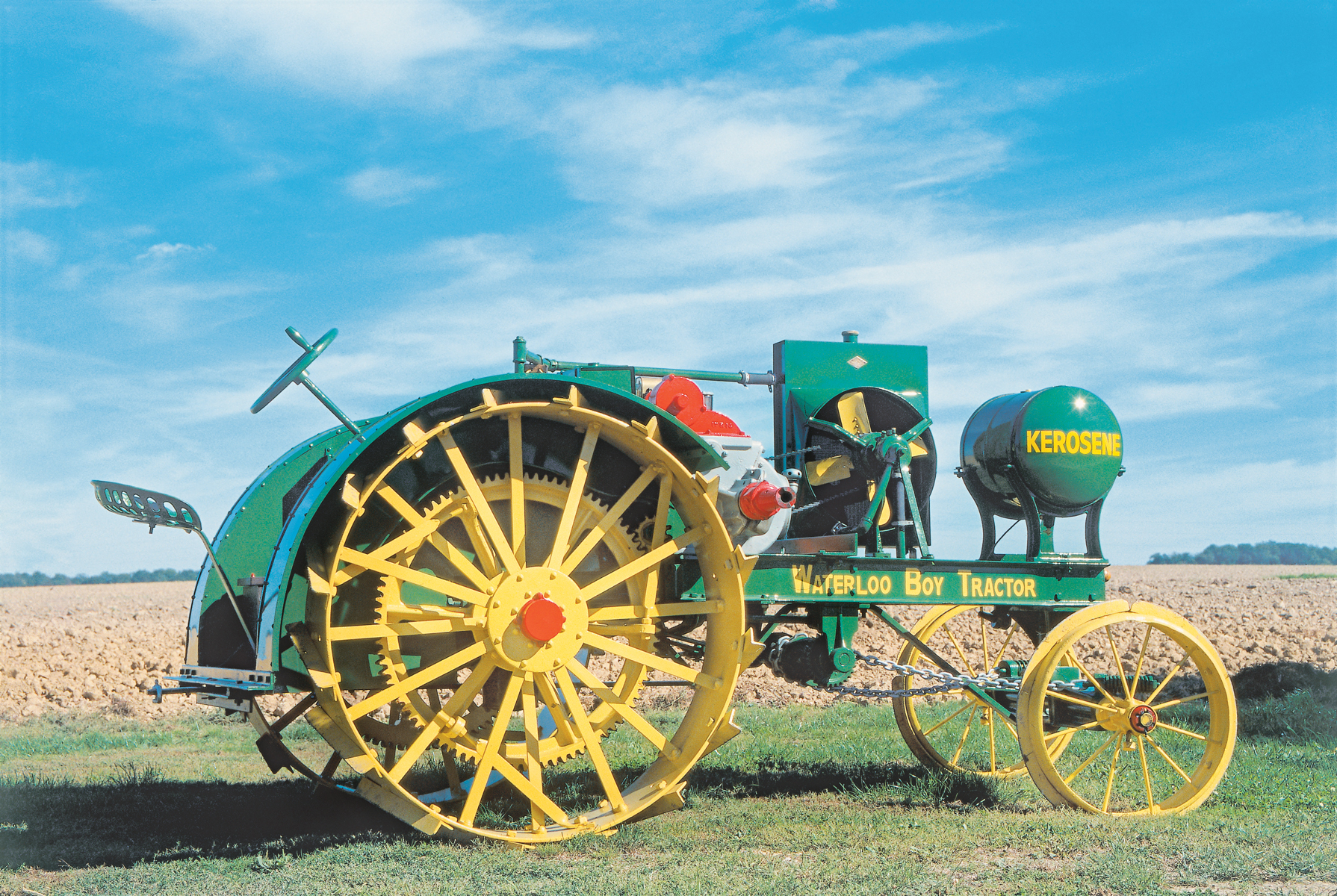

Waterloo Boy LA
Waterloo Boy LA — Standard-tread tractor · 7 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
7 hp
Weight
1360 kg
Hover a source tag to verify
Overview
ManufacturerWaterloo BoyReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Serial number records show only two model L Waterloo Boys, although more may have been built prior to 1914.Reference
Two-wheel driveReference
Steeringcapstan-and-chain, manualReference
Open operator station.Reference
Engine
Waterloo Gasoline Engine Company 5.5L 2-cyl keroseneReference
Drawbar (claimed)5.2 kWReference
Belt (claimed)11.2 kWReference
Waterloo Gasoline Engine CompanyReference
keroseneReference
2-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke140 x 178 mmReference
Rated RPM750Reference
Transmission
1-speed unsynchronized gearReference
ManufacturerWaterloo BoyReference
Typeunsynchronized gearReference
Gears1 forward and reverseReference
Dimensions
Weight1360 kgReference
Front tire22x8Reference
Rear tire50x10Reference
Ag front22x8 (tricycle)Reference
Ag front28x5 (four-wheel)Reference
Ag rear50x10Reference
LA Serial Numbers
19141000Reference
Final1253Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
