Tractor · 1987Unverified

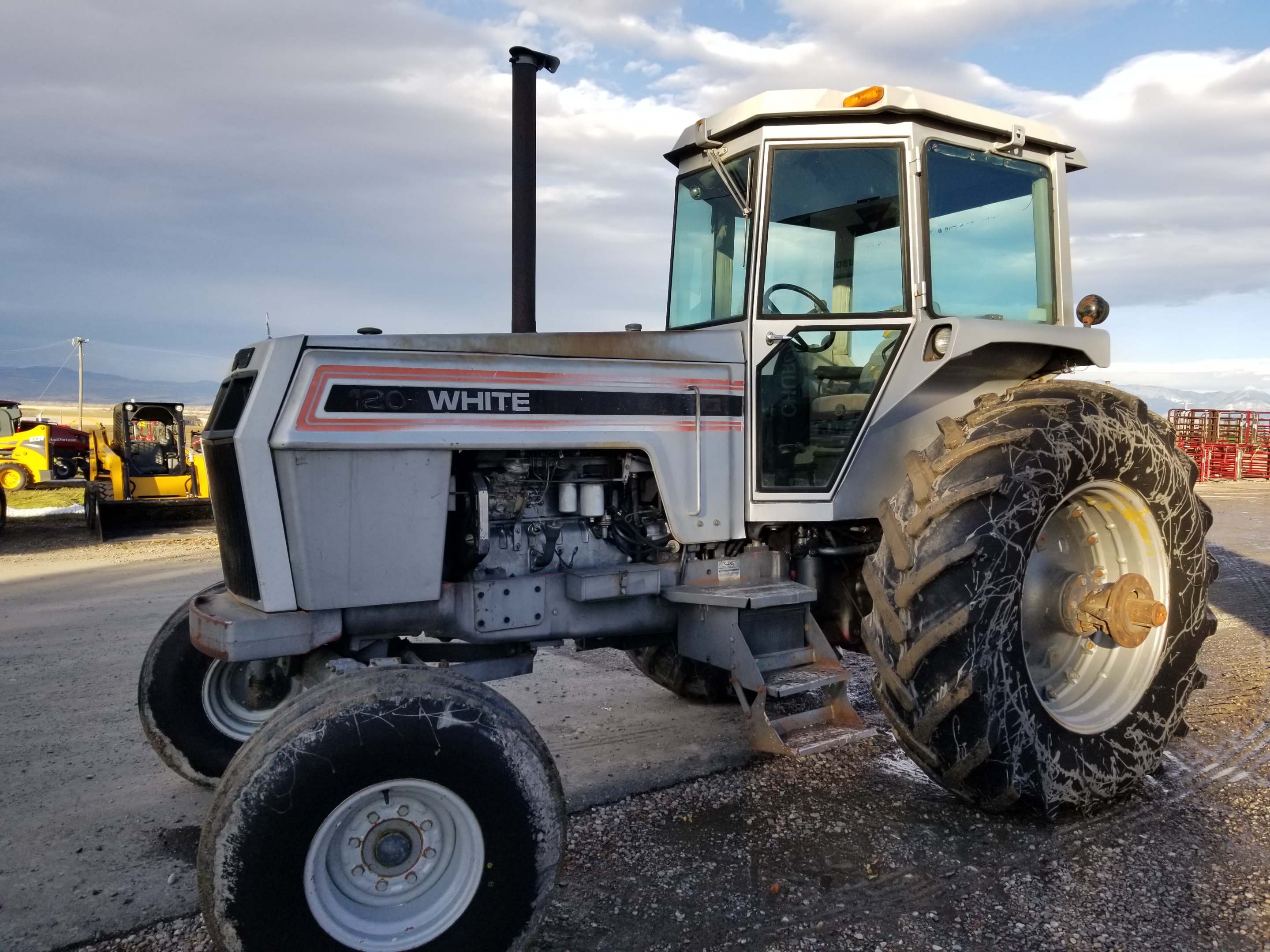

White 120
White 120 — 100 Series · 119 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
119 hp
Max power
76.8 kW
Weight
12250 to 14465 pounds
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $45,000 in 1989Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 5.9L 6-cyl dieselReference
Drawbar (tested)76.8 kWReference
CDCReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Compression18.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity16.4 LReference
Coolant capacity19.9 LReference
Power at rated engine speed88.8 kWReference
Max power76.8 kWReference
Transmission
18-speed partial powershiftReference
Transmission3x6 Over/UnderReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Clutch355.6mm dry discReference
Six forward and two reverse gears with an over and under power shift for each gear.Reference
PTO & Hydraulics
PTO (claimed)88.0 kWReference
PTO (tested)88.8 kWReference
Hydraulic system87.1 LReference
Typeclosed center pressure compensatedReference
Capacity87.1 LReference
Pressure155.1 barReference
Valves2 or 3Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift3327 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Power at rated PTO speed90.9 kWReference
Capacities
Fuel257.4 LReference
Dimensions
2WD Wheelbase283 cmReference
4WD Wheelbase251 cmReference
Weight12250 to 14465 poundsReference
Front tire10.00-16Reference
Rear tire18.4R-38Reference
Ag front10.00-16Reference
Ag rear18.4R-38Reference
Length441 cmReference
Width292 cmReference
2WD Height297 cmReference
4WD Height301 cmReference
Bar rear axle85 by 2438 mmReference
Bar rear axle85 by 2921 mmReference
2WD Front tread152 to 213 cmReference
4WD Front tread151 to 220 cmReference
Rear tread152 to 269 cmReference
2WD Shipping5556 kgReference
4WD Shipping6055 kgReference
Operating6561 kgReference
Ballasted6946 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps62Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 2WDSeptember 21 - October 4, 1988Link: Nebraska Tractor Test 1615 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use26.5 l/hourReference
Gear 4-direct used for power test.Reference
Max pull6480 kgReference
Gear 1-Over used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
