Tractor · Unverified

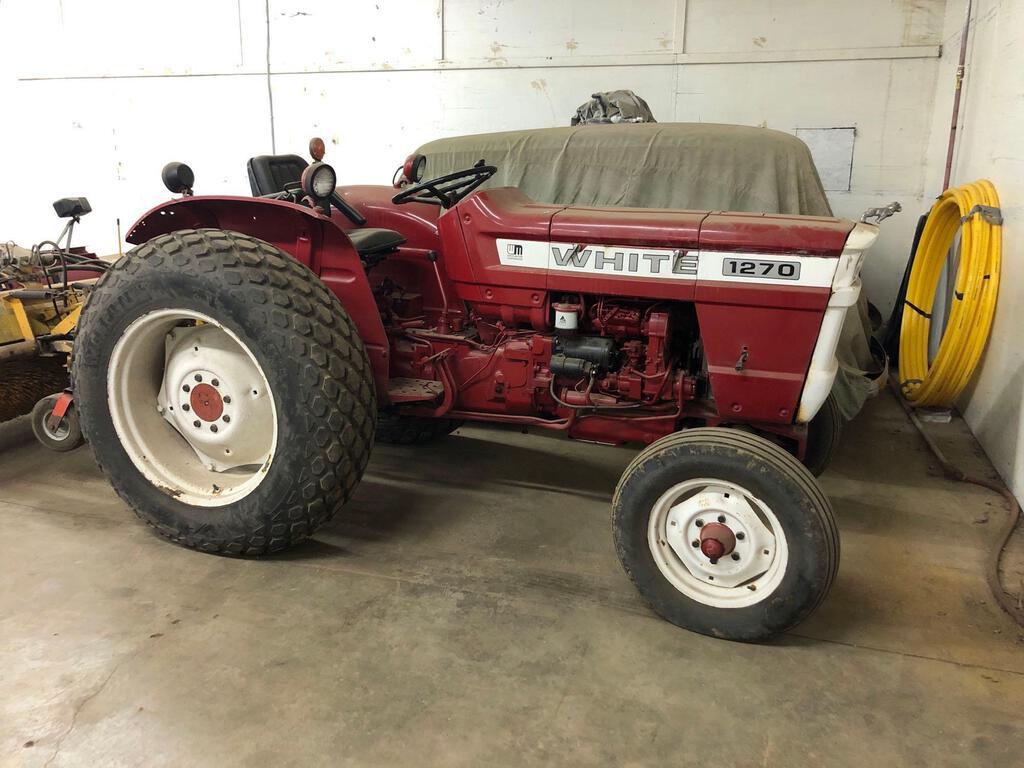

White 1270

Name: White 1270
Brand: White

White 1270 — Utility tractor · 41 hp. Reference specifications; pending source verification.

The White 1270 is a compact tractor, boasting a rated output of 41 hp. It is powered by a 3-cylinder diesel liquid-cooled engine, which is paired with a 6-speed gearbox and four-wheel drive. The listed weight of the White 1270 ranges from 3710 to 4300 pounds, making it suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

41 hp

Weight

3710 to 4300 pounds

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

41 hp

Recorded weight

1682 kg

Transmissions

6-speed partially synchronized

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWhiteReference

Utility tractorReference

Original price was $6,900 in 1975Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Mechanical band brakesReference

Open operator station.Reference

Engine

Fiat 2.6L 3-cyl dieselReference

FiatReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.6 LReference

Bore/Stroke100 x 110 mmReference

Air cleaneroil bathReference

Pre-heatingthermostartReference

Compression17:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity12.8 LReference

Transmission

6-speed partially synchronizedReference

9-speed creeperReference

Typepartially synchronizedReference

Gears6 forward and 2 reverseReference

Clutch254mm dry discReference

Oil capacity17.0 LReference

Synchronized shifts between gears 2-3 and 5-6.Reference

TypecreeperReference

Gears9 forward and 3 reverseReference

PTO & Hydraulics

PTO (claimed)30.6 kWReference

Hydraulic system17.0 LReference

Typeopen centerReference

Capacity17.0 LReference

Pressure147.1 barReference

Pump flow21.8 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift1206 kgReference

Rear PTOliveReference

Rear PTO Type540/groundReference

Engine RPM540@1970Reference

Capacities

Fuel53.9 LReference

Dimensions

Wheelbase191 cmReference

Weight3710 to 4300 poundsReference

Front tire6.00-16Reference

Rear tire13.6-28Reference

2WD Ag front6.00-16Reference

4WD Ag front7.50x20Reference

2WD Ag rear13.6-28Reference

4WD Ag rear12.4-28Reference

2WD Ag front7.50-16Reference

2WD Ag rear12.4-28Reference

2WD Ag rear14.9-28Reference

2WD Length292 cmReference

4WD Length303 cmReference

Width158 cmReference

2WD Height (steering wheel)143 cmReference

2WD Shipping weight1682 kgReference

4WD Shipping weight1950 kgReference

2WD Clearance (front axle)46 cmReference

4WD Clearance (front axle)35 cmReference

2WD Front tread128 to 198 cmReference

4WD Front tread139/149 cmReference

Rear tread120 to 189 cmReference

White 1270 attachments

front-end loaderReference

1270 Serial Numbers

Location:Serial number plate below instrument panel.Reference

1971302402Reference

1972304497Reference

1973307221Reference

1974314369Reference

1975317000Reference

Final321497Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps42Reference

Battery volts12Reference

Attachment overview

Cockshutt 1522 loaderReference

Cockshutt 1524 loaderReference

Speeds

With 13.6-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
