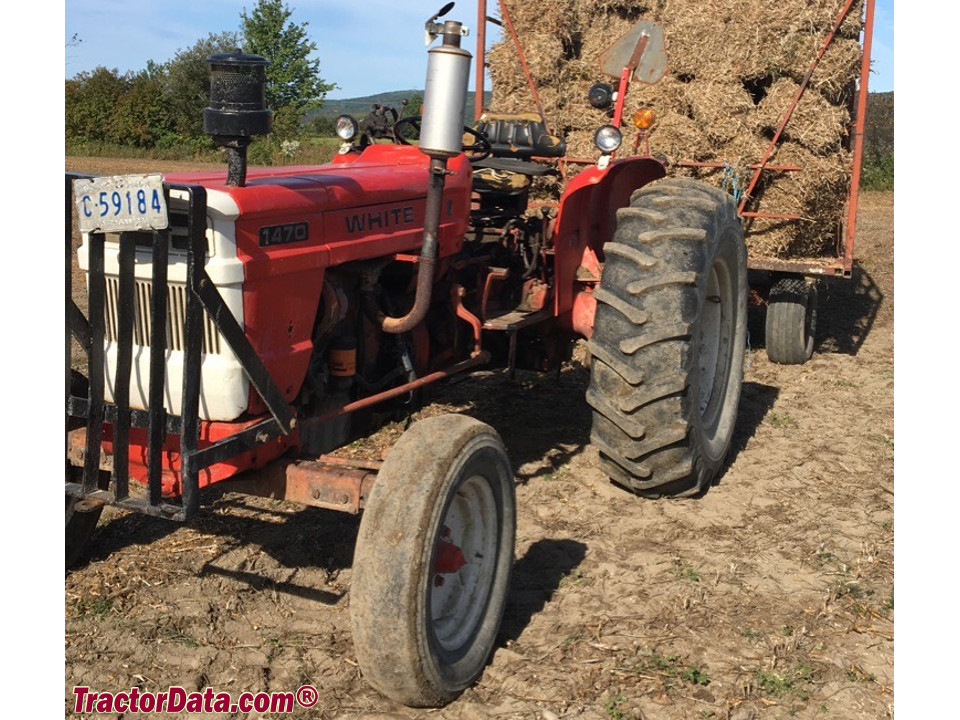

The White 1470 tractor model is rated at 70 hp, placing it in the middle of its class for power. Manufactured from 1973 to 1975, the model features a 4-cylinder diesel liquid-cooled engine and two-wheel drive with a 7-speed gearbox. Weighing 3039 kg, it is designed for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3039 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
70 hp
Recorded weight
3039 kg
Transmissions
7-speed gear
Production years
1973-1975
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerFiatReference
Utility tractorReference
Original price was $11,000 in 1975Reference
The White 1470 was built by Fiat, and is based on the Fiat 750. The tractor was also sold under the Cockshutt and Oliver brands which were owned by White at that time.Reference
Two-wheel driveReference
SteeringpowerReference
Disc brakesReference
Open operator station. Optional ROPS and canopy.Reference
Engine
OM 4.6L 4-cyl dieselReference
Engine57.4 kWReference
Drawbar (claimed)43.3 kWReference
OM C03/70Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power57.4 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
7-speed gearReference
TypegearReference
Gears7 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Pressure147.2 barReference
Total flow23.5 lpmReference
Rear TypeI/IIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase235 cmReference
Weight3039 kgReference
Front tire7.50-18Reference
Rear tire18.4-30Reference
Ag front7.50-18Reference
Ag rear18.4-30Reference
Length355 cmReference
Height (steering wheel)174 cmReference
Shipping weight3039 kgReference
Ballasted weight4808 kgReference
Ground clearance51 cmReference
1470 Serial Numbers
Location:Below instrument panel.Reference
1973827183Reference
1974827580Reference
1975839424Reference
Final839487Reference
FAQ: How to read a serial number table.Reference
Speeds
18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
