Tractor · 1987Unverified

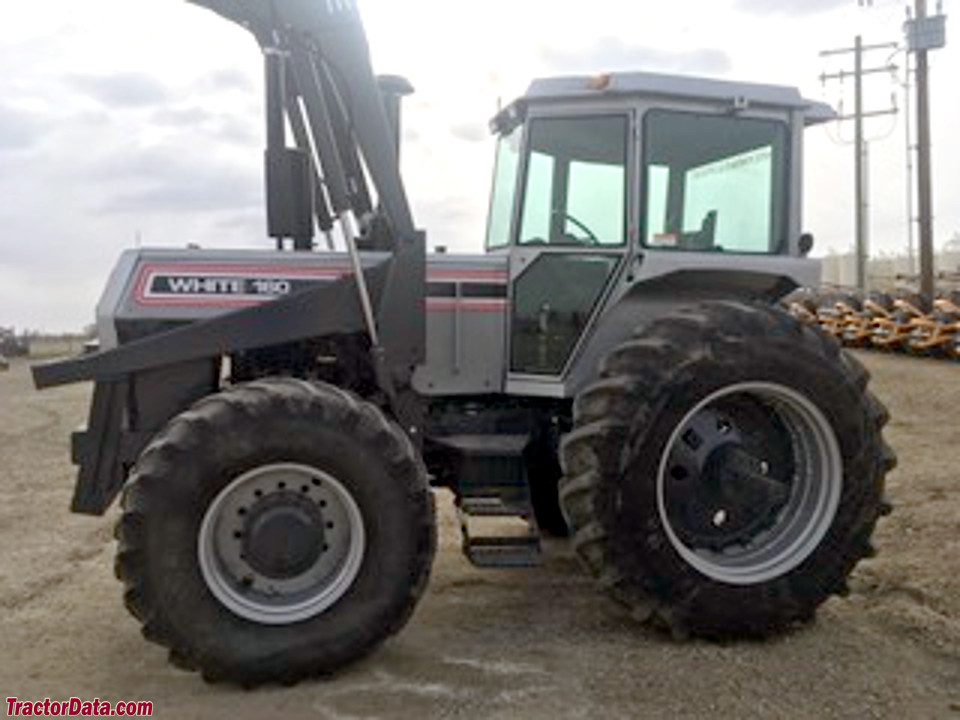

White 160
White 160 — 100 Series · 162 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
162 hp
Max power
104.7 kW
Weight
13300 to 17290 pounds
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $55,000 in 1989Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC-Cummins 8.3L 6-cyl dieselReference
Drawbar (tested)104.7 kWReference
CDC-CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity22.2 LReference
Coolant capacity25.2 LReference
Power at rated engine speed121.2 kWReference
Max power104.7 kWReference
Transmission
18-speed partial powershiftReference
Transmission3x6 Over/UnderReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Clutch330.2 dry discsReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)121.2 kWReference
Hydraulic system87.1 LReference
Typeclosed center pressure compensatedReference
Capacity87.1 LReference
Pressure155.1 barReference
Valves2 or 3Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift3191 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000Reference
Power at rated PTO speed123.8 kWReference
Capacities
Fuel280.1 LReference
Dimensions
2WD Wheelbase284 cmReference
4WD Wheelbase231 cmReference
Weight13300 to 17290 poundsReference
Front tire11.00-16Reference
Rear tire18.4R-38Reference
Ag front11.00-16Reference
Ag rear18.4R-38Reference
Length457 cmReference
Width292 cmReference
2WD Height304 cmReference
4WD Height309 cmReference
Bar rear axle95 by 2438 mmReference
Bar rear axle95 by 2921 mmReference
2WD Front tread152 to 203 cmReference
Front tread160 to 205 cmReference
Rear tread152 to 269 cmReference
Rear tread165 to 320 cmReference
2WD Shipping6032 kgReference
4WD Shipping6713 kgReference
Operating7842 kgReference
Ballasted8550 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps62Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 5 - 19, 1988Link: Nebraska Tractor Test 1607 fileReference
PTO performanceReference
Fuel use34.8 l/hourReference
Fuel use35.2 l/hourReference
Drawbar performanceReference
Fuel use34.4 l/hourReference
Gear 4-direct used for power test.Reference
Max pull8189 kgReference
Gear 2D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
