Tractor · 1982Unverified

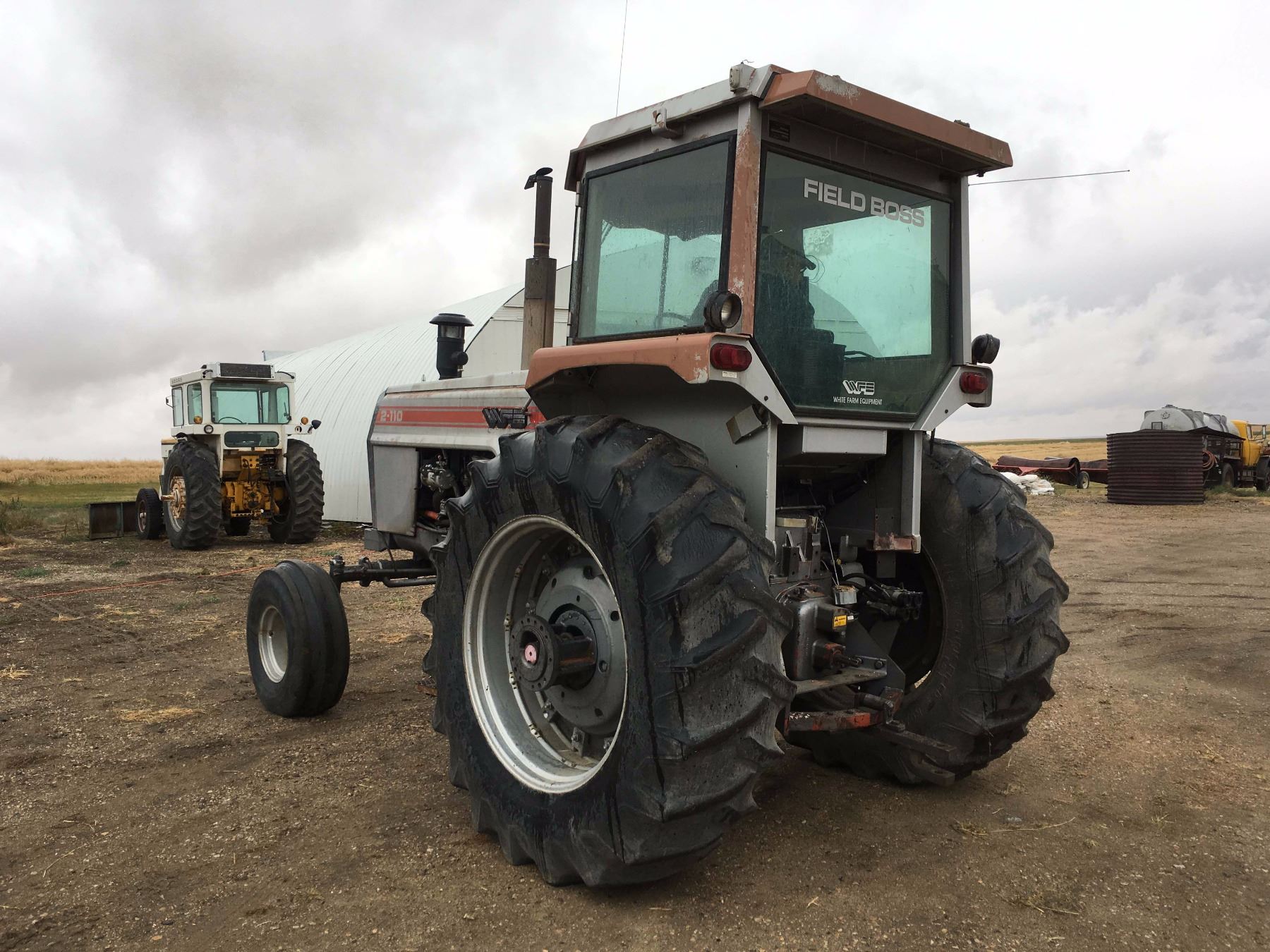

White 2-110
White 2-110 — Row-Crop tractor · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Max power
70.9 kW
Weight
11685 to 13995 pounds
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Original price was $43,000 in 987Reference
Two- or four-wheel driveReference
Power steeringReference
Independent hydraulic dry disc brakesReference
Cab standard with heat and air-conditioning. Optional ROPS canopy.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Drawbar (tested)70.9 kWReference
PerkinsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Air cleanerdual paper elementsReference
Compression15.5:1Reference
Rated RPM2200Reference
Idle RPM775-2420Reference
Starter volts12Reference
Oil capacity15.1 LReference
Coolant capacity22.7 LReference
Power at rated engine speed82.4 kWReference
Max power70.9 kWReference
Transmission
18-speed partial powershiftReference
Transmission3x6 Over/UnderReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Oil capacity44.0 LReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)82.4 kWReference
Hydraulic system34.1 LReference
Hydraulic system31.2 LReference
Typeclosed center constant pressureReference
Capacity34.1 LReference
Capacity31.2 LReference
Pressure155.1 barReference
Valves2Reference
Total flow75.7 lpmReference
Rear TypeII/IReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel219.5 LReference
Dimensions
2WD Wheelbase278 cmReference
4WD Wheelbase226 cmReference
Weight11685 to 13995 poundsReference
Front tire11L-15Reference
2WD Rear tire18.4-38Reference
2WD Standard tires (ag)Front: 11L-15. Rear: 18.4-38Reference
4WD Standard tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
4WD Optional tires (ag)Front: 18.4-28. Rear: 20.8-38Reference
Ag front11L-15Reference
Ag rear18.4-38Reference
2WD Ag front11.00-16Reference
2WD Ag rear18.4-34Reference
2WD Ag rear16.9-38Reference
2WD Ag rear20.8-34Reference
2WD Ag rear20.8-38Reference
2WD Ag rear23.1-34Reference
Length421 cmReference
Width204 cmReference
Height (cab)294 cmReference
2WD Clearance (front axle)65 cmReference
4WD Clearance (front axle)43 cmReference
Clearance (rear axle)64 cmReference
Clearance (drawbar)34 cmReference
Rear axle80 mmReference
Front tread152 to 233 cmReference
Rear tread155 to 303 cmReference
2WD cab Shipping5300 kgReference
4WD cab Shipping6109 kgReference
Operating6348 kgReference
2-110 Serial Numbers
Location:Main trctor frame on left rearReference
1982300783Reference
1983301998Reference
1984302334Reference
1985303552Reference
1986400231Reference
1987400763Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps61Reference
Batteries2Reference
Battery volts6Reference
Test results
Diesel 18-speed 4WDMarch 17 - April 5, 1983Link: Nebraska Tractor Test 1468 fileReference
PTO performanceReference
Fuel use25.0 l/hourReference
Drawbar performanceReference
Gear 1-over used for power test.Reference
Max pull4309 kgReference
Gear 2-direct used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
