Tractor · 1975Unverified

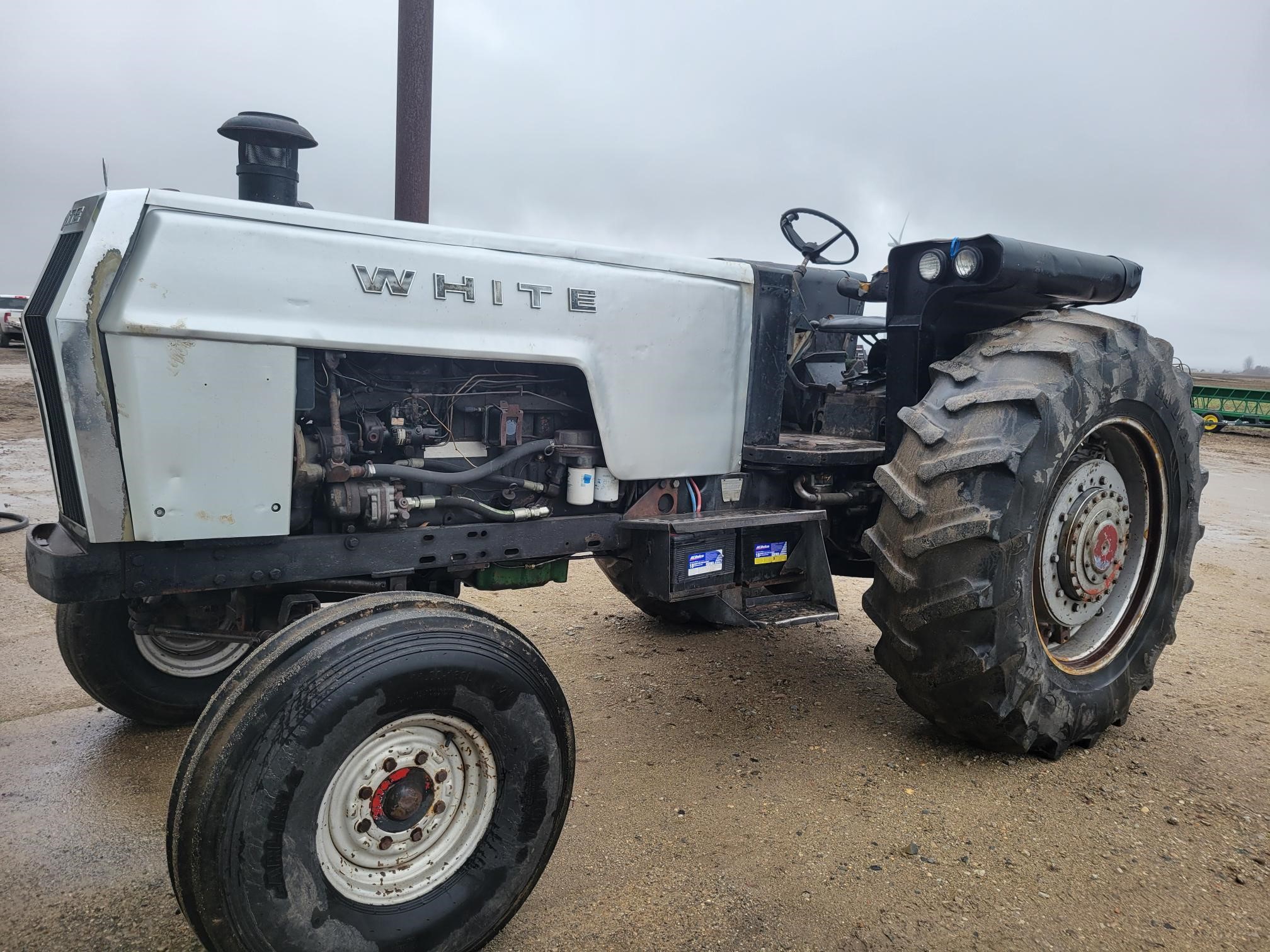

White 2-150
White 2-150 — Row-Crop tractor · 147 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
147 hp
Max power
90.5 kW
Weight
7683 kg
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Original price$22,500 (1976)Reference
Two-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic dry disc brakesReference
Open operator station. Available two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
White 9.6L 6-cyl dieselReference
Fuel tank151.4 LReference
Fuel tank295.2 LReference
Drawbar (tested)90.5 kWReference
WhiteReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.6 LReference
Bore/Stroke121 x 140 mmReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Compression15.3:1Reference
Rated RPM2200Reference
Idle RPM700-2335Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity31.2 LReference
Power at rated engine speed110.0 kWReference
Max power90.5 kWReference
Transmission
6-speed unsynchronizedReference
18-speed partial powershiftReference
TypeunsynchronizedReference
Gears6 forward and 2 reverseReference
Clutch356mm dry discReference
TransmissionHydraul-ShiftReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
PTO (tested)110.0 kWReference
Typeclosed centerReference
Pressure151.7 barReference
Valves1 to 4Reference
Pump flow75.7 lpmReference
Rear TypeIII/IIReference
Rear lift2721 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Engine RPM1000@2200Reference
Dimensions
Wheelbase281 cmReference
Weight7683 kgReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag front14L-16Reference
Ag rear20.8-38Reference
Ag rear23.1-34Reference
Length464 cmReference
Width207 cmReference
Height (steering wheel)217 cmReference
Operating weight7683 kgReference
Clearance (front axle)52 cmReference
Clearance (rear axle)69 cmReference
Electrical
Charging systemalternatorReference
Test results
Diesel 18-speed 2WDJune 16 - 60, 1975Link: Nebraska Tractor Test 1182 fileReference
PTO performanceReference
Fuel use38.6 l/hourReference
Drawbar performanceReference
Fuel use38.2 l/hourReference
Gear 4-under used for power test.Reference
Max pull6830 kgReference
Gear 2-U used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
