Tractor · 1977Unverified

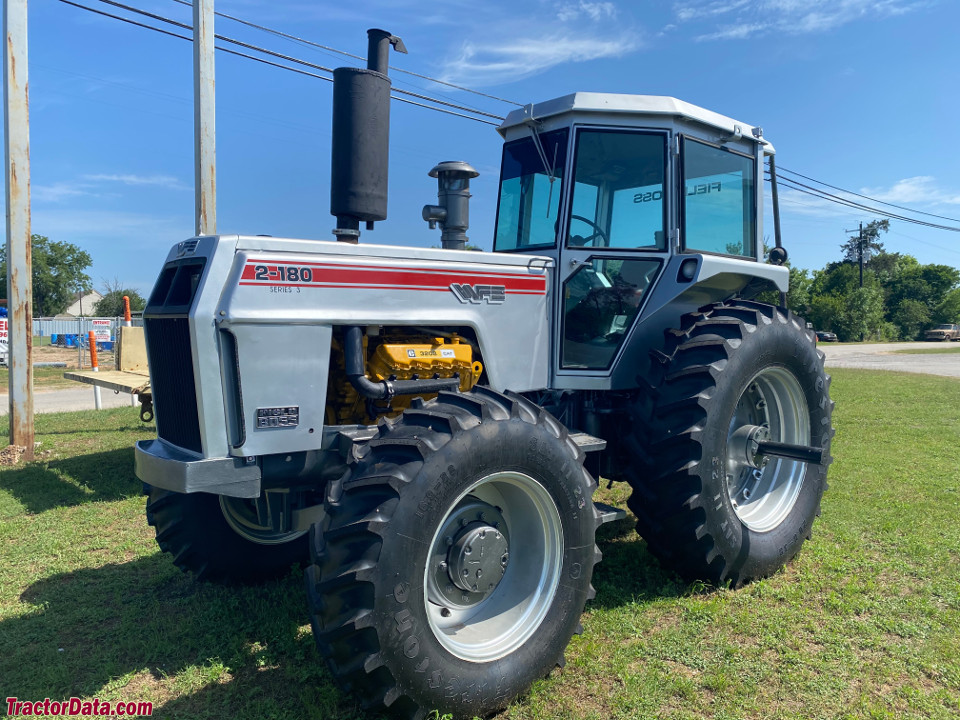

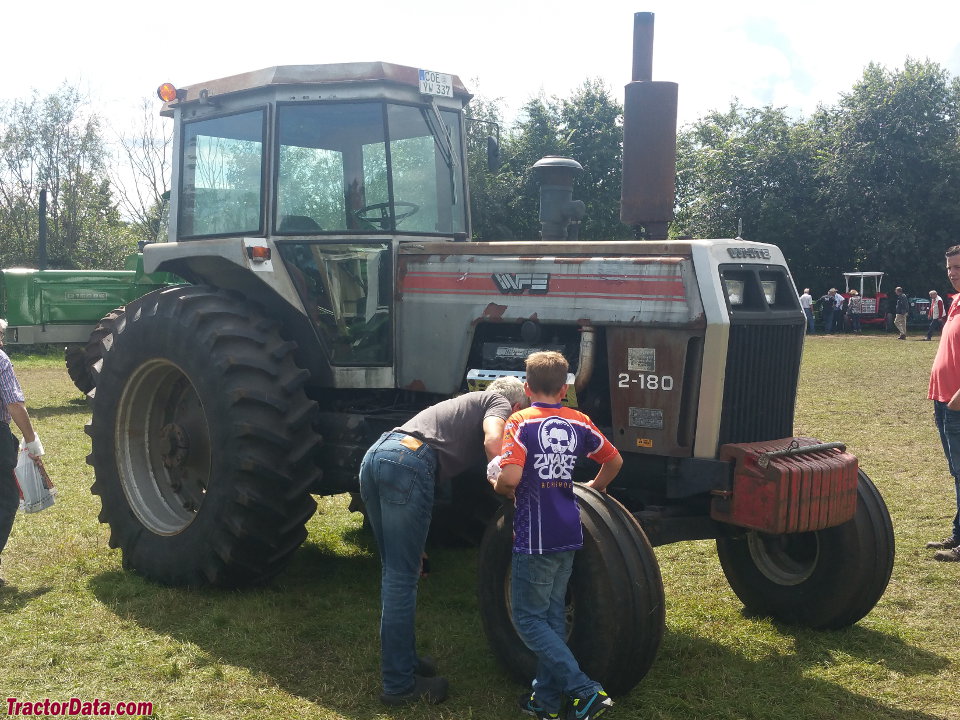

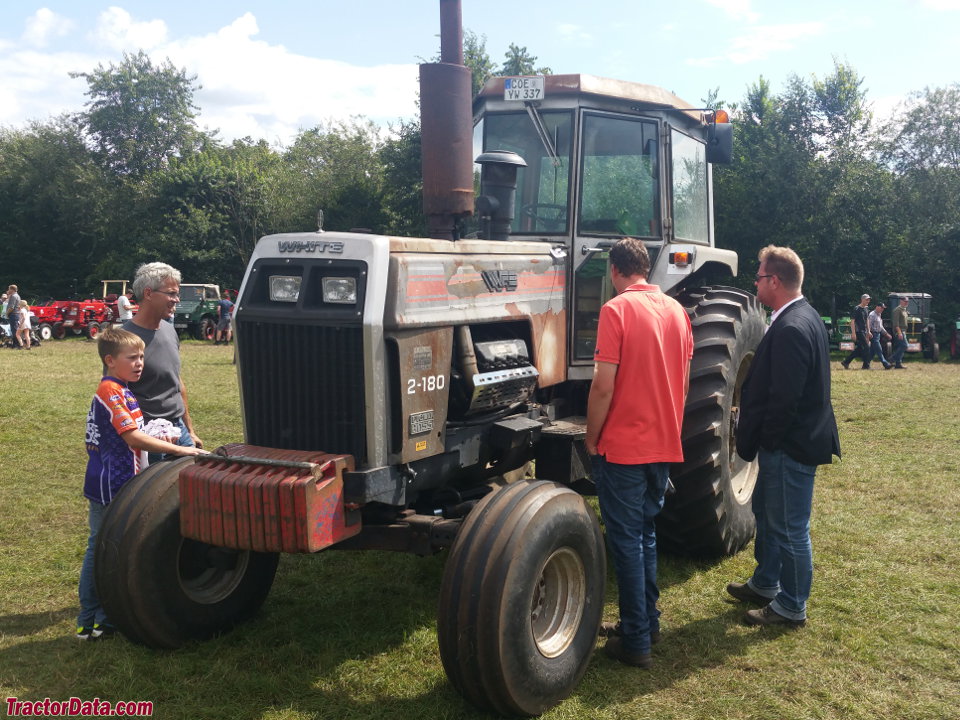

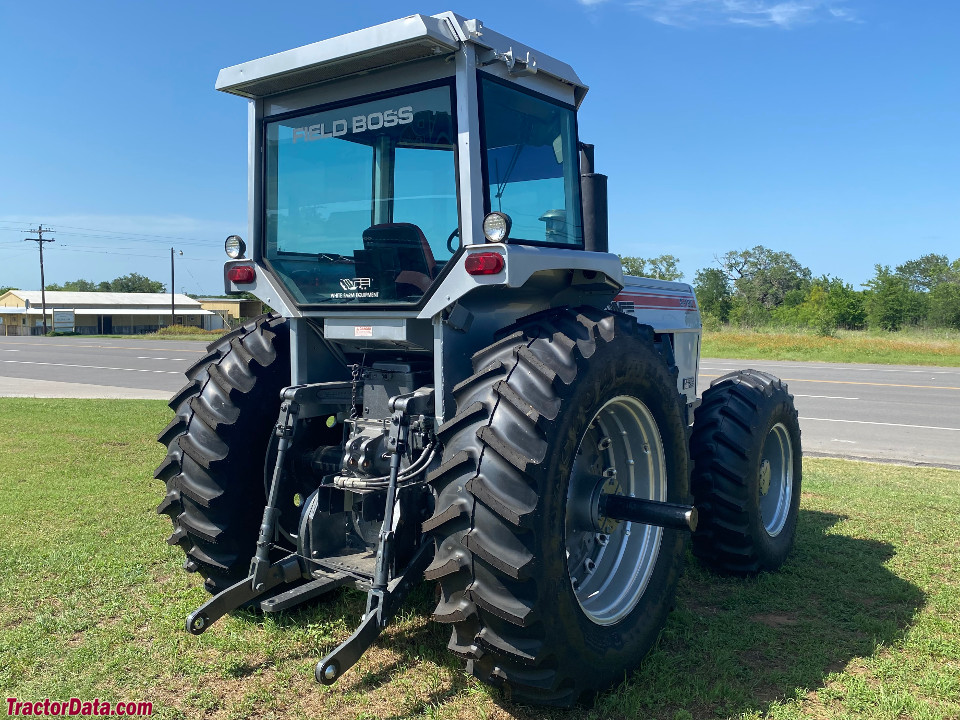

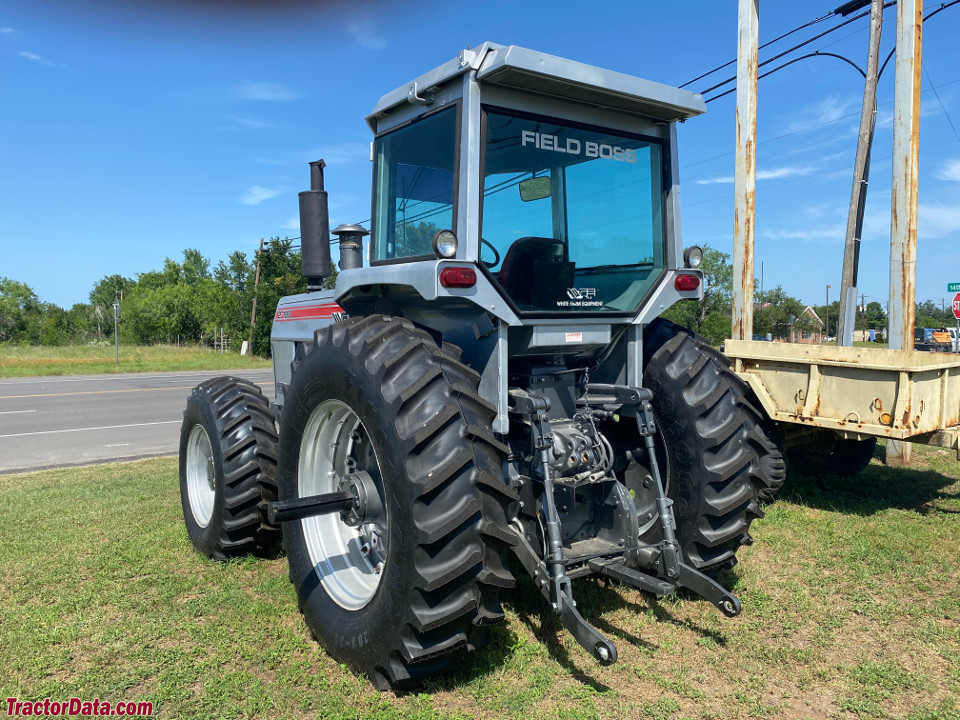

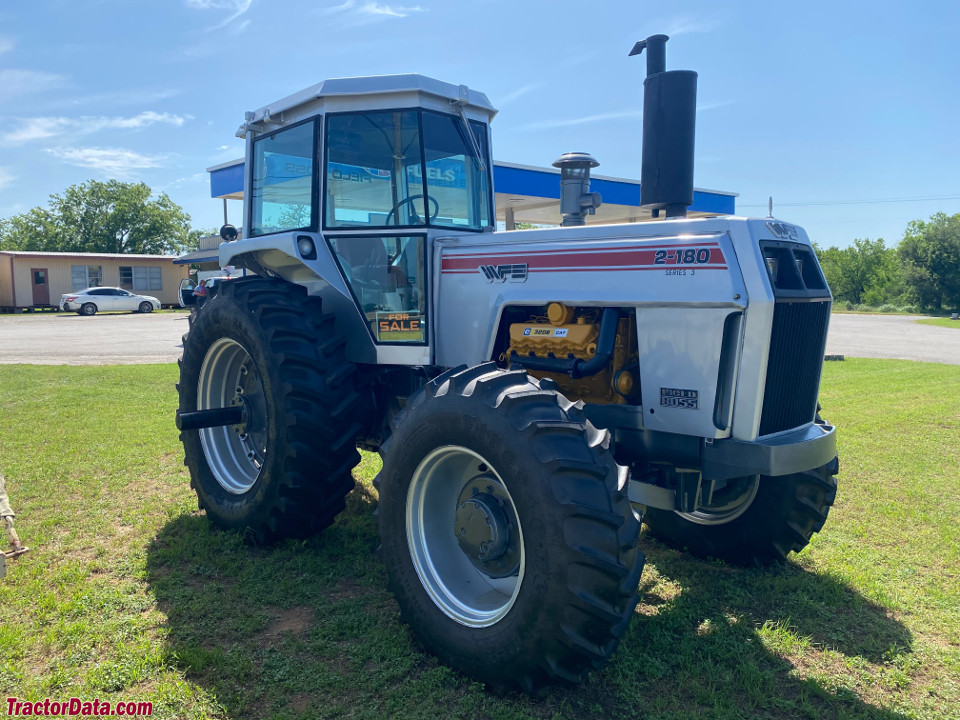

White 2-180
White 2-180 — Field Boss Series · 182 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
182 hp
Max power
118.5 kW
Weight
16000 to 18280 pounds
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Original price was $55,200 in 1982Reference
Two- or four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning. Optional radio, cassette, and 8-track.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Fuel tank280.1 LReference
Engine156.6 kWReference
Drawbar (tested)118.5 kWReference
Caterpillar 3208Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power156.6 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2800Reference
Starter volts12Reference
Coolant capacity44.0 LReference
Power at rated engine speed135.6 kWReference
Max power118.5 kWReference
Transmission
18-speed partial powershiftReference
Transmission3x6 Over/UnderReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Clutchdry discReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)135.6 kWReference
Typeclosed centerReference
Valves2Reference
Pump flow83.3 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase284 cmReference
Weight16000 to 18280 poundsReference
Front tire14L-16Reference
Rear tire20.8-38Reference
Ag front14L-16Reference
Ag rear20.8-38Reference
Shipping weight7257 kgReference
Operating weight8291 kgReference
2-180 Serial Number Location
Serial number on the bottom left of the instrument console, above the step.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 2WDSeptember 15 - 23, 1978Link: Nebraska Tractor Test 1287 fileReference
PTO performanceReference
Fuel use47.7 l/hourReference
Drawbar performanceReference
Fuel use46.9 l/hourReference
Gear 4-direct used for power test.Reference
Max pull7030 kgReference
Gear 2-direct used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
