Tractor · 1984Unverified

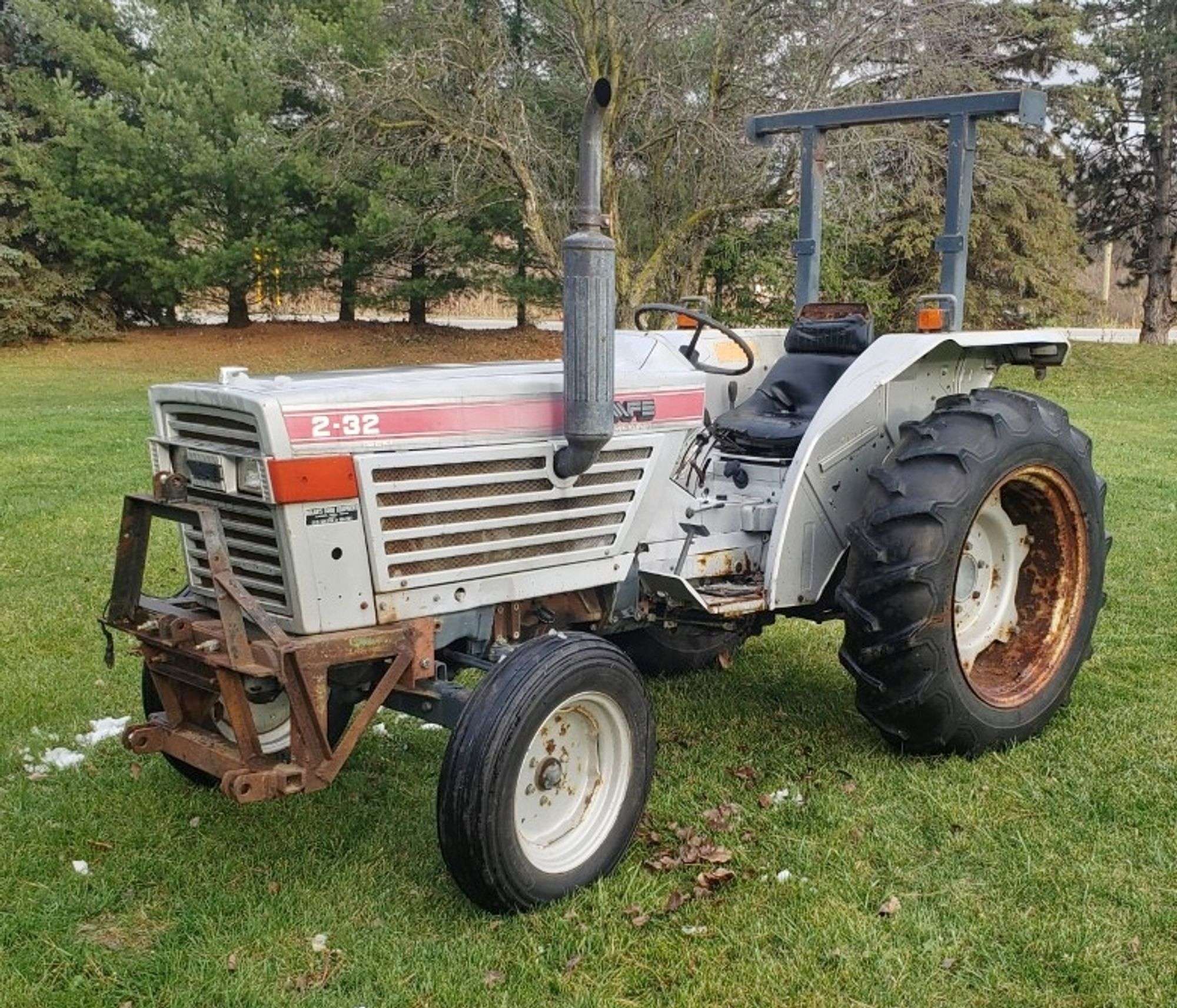

White 2-32
White 2-32 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2915 to 3135 pounds
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Original price was $10,000 in 1986Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS with optional canopyReference
Variants
TL3201similar Iseki modelReference
Engine
Iseki 1.5L 4-cyl dieselReference
Fuel tank40.1 LReference
Iseki 4FA1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke76 x 81 mmReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity7.1 LReference
Coolant capacity9.3 LReference
Transmission
18-speed partially synchronizedReference
Typepartially synchronizedReference
Gears18 forward and 6 reverseReference
Clutch236.5mm dry discReference
Oil capacity45.0 LReference
Three gears (1-3) plus reverse (R) in three ranges (low, medium, high). Additional shift into creeper range.Reference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Typeopen centerReference
Pressure142.2 barReference
Pump flow29.1 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1230 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2332Reference
Dimensions
Wheelbase180 cmReference
Weight2915 to 3135 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 9.5-16. Rear: 12.4-28Reference
Length320 cmReference
Width181 cmReference
Height200 cmReference
2WD Weight1322 kgReference
4WD Weight1422 kgReference
Ground clearance36 cmReference
2WD Front tread115 to 155 cmReference
4WD Front tread121 cmReference
Rear tread114 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 12.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
