Tractor · 1976Unverified

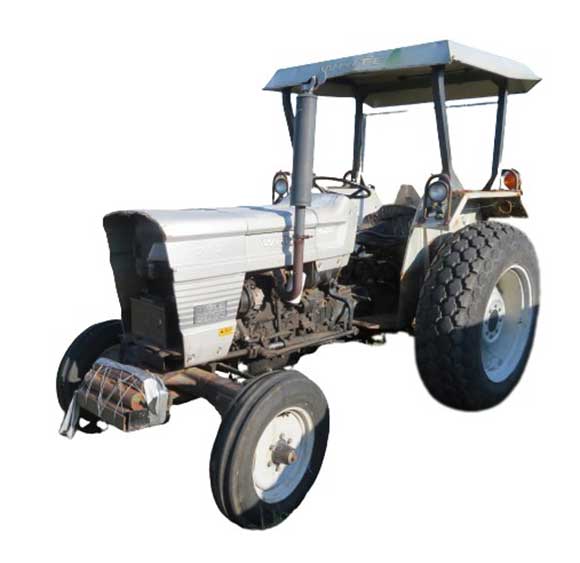

White 2-50
White 2-50 — Field Boss Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Max power
30.1 kW
Weight
3970 to 4250 pounds
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerFiatReference
Utility tractorReference
Built in ItalyReference
Original price was $12,200 in 1980Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringpower assistReference
Independent dry contracting band brakesReference
Four-post ROPS canopy.Reference
Variants
500similar Fiat modelReference
Engine
Fiat 2.6L 3-cyl dieselReference
Fuel tank54.5 LReference
Drawbar (tested)30.1 kWReference
FiatReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2500Reference
Idle RPM650-2700Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity13.0 LReference
Power at rated engine speed35.1 kWReference
Max power30.1 kWReference
Transmission
8-speed gearReference
12-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279mm dry discReference
TypecreeperReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
PTO (tested)35.1 kWReference
Typeopen centerReference
Pressure147.2 barReference
Pump flow22.7 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)952 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed32.8 kWReference
Dimensions
Wheelbase192 cmReference
Weight3970 to 4250 poundsReference
Front tire6.50-16Reference
2WD Rear tire14.9-30Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 14.9-30Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-30Reference
Length295 cmReference
Width160 cmReference
Height (steering wheel)153 cmReference
2WD Clearance (front axle)43 cmReference
4WD Clearance (front axle)38 cmReference
2WD Front tread142 to 203 cmReference
4WD Front tread139/149 cmReference
Rear tread142 to 193 cmReference
2WD Shipping1800 kgReference
4WD Shipping1927 kgReference
2WD Operating1859 kgReference
White 2-50 attachments
front-end loaderReference
2-50 Serial Numbers
1976516625Reference
1977518782Reference
1978521635Reference
1979525268Reference
1980525726Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Attachment overview
White 1510 loaderReference
White 1610 loaderReference
White 1730 QA loaderReference
The model 1730-QA loader was specified only for 2-50 tractors with four-wheel drive. Canadian loaders for the White 2-50 were built by KMW. Either the model 120 (2WD) or the model 140 (4WD) were available.Reference
Test results
Diesel 8-speed 2WDMarch 15 - 25, 1977Link: Nebraska Tractor Test 1231 fileReference
PTO performanceReference
Fuel use11.7 l/hourReference
Fuel use10.6 l/hourReference
Drawbar performanceReference
Fuel use11.4 l/hourReference
Gear 5 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
