Tractor · 1976Unverified

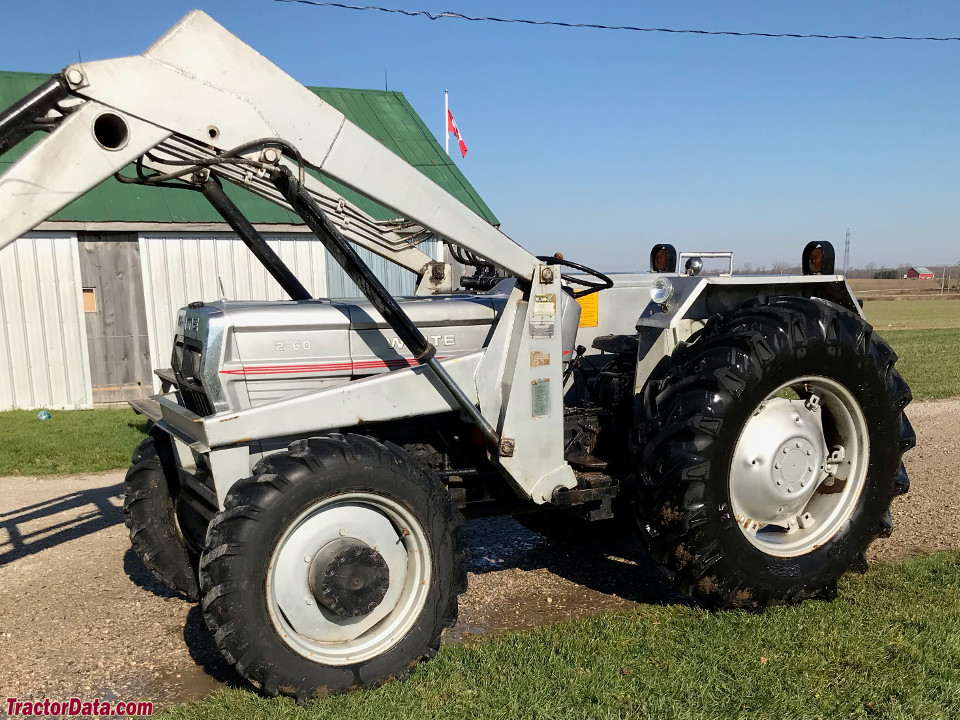

White 2-60
White 2-60 — Field Boss Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Max power
39.6 kW
Weight
4530 to 5250 pounds
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerFiatReference
Utility tractorReference
Built in ItalyReference
Original price was $15,100 in 1980Reference
.Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringpower assistReference
Independent dry contracting band brakesReference
Four-post ROPS canopy.Reference
Variants
640similar Fiat modelReference
Engine
Fiat 3.5L 4-cyl dieselReference
Fuel tank54.5 LReference
Drawbar (tested)39.6 kWReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Idle RPM650-2600Reference
Starter volts12Reference
Oil capacity10.4 LReference
Coolant capacity14.0 LReference
Power at rated engine speed47.1 kWReference
Max power39.6 kWReference
Transmission
8-speed gearReference
12-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279mm dry discReference
TypecreeperReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)44.0 kWReference
PTO (tested)47.1 kWReference
Typeopen centerReference
Pressure147.2 barReference
Pump flow22.0 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1088 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed40.5 kWReference
Dimensions
Wheelbase207 cmReference
Weight4530 to 5250 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 16.9-30Reference
Length320 cmReference
Width185 cmReference
Height (steering wheel)158 cmReference
2WD Clearance (front axle)50 cmReference
4WD Clearance (front axle)43 cmReference
2WD Front tread142 to 203 cmReference
4WD Front tread139/149 cmReference
Rear tread142 to 203 cmReference
2WD Shipping2054 kgReference
4WD Shipping2381 kgReference
2WD Operating2340 kgReference
Ballasted4077 kgReference
White 2-60 attachments
front-end loaderReference
2-60 Serial Numbers
1976780725Reference
1977790273Reference
1978946285Reference
1979959280Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Attachment overview
White 1510 loaderReference
White 1610 loaderReference
White 1730 QA loaderReference
The model 1730-QA loader was specified only for four-wheel drive White 2-60 tractors. Canadian-market loaders for the White 2-60 were built by KMW. Either the model 120 (2WD) or the model 140 (4WD) were available.Reference
Test results
Diesel 8-speed 2WDMarch 15 - 28, 1977Link: Nebraska Tractor Test 1232 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Fuel use11.7 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
